Harvey Tool 22340 HAR 1/4x.040 CARB KEY CUTTER 1/4x2.5 NECK=1/8x3/8 Tmax.053

Product Description

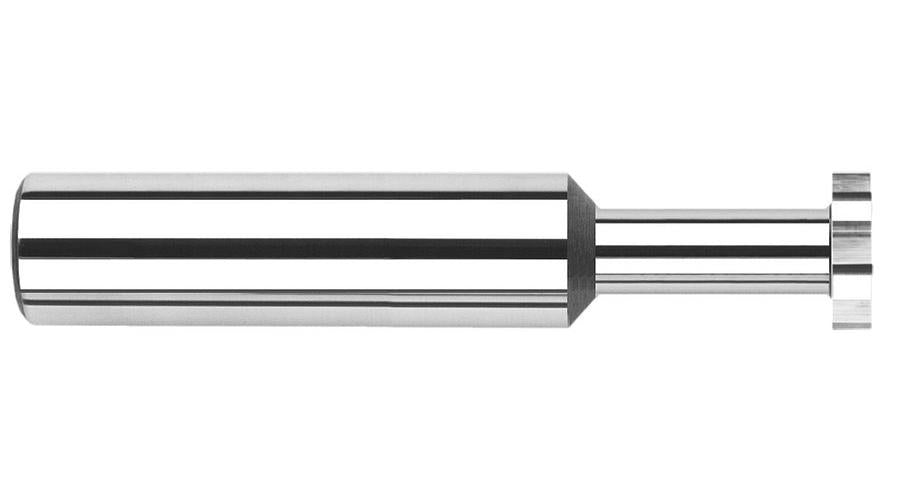

The Harvey Tool 22340 is a high-quality keyseat cutter designed for milling applications. This solid carbide tool has a diameter of one-fourth inch with a cutting width of forty thousandths of an inch. The overall length of the cutter is two and a half inches, enabling efficient reach and use in various materials. It features a neck diameter of one-eighth inch and is suitable for applications in aluminum, cast iron, steel, and more.

• Brand: Harvey Tool
• Material: Solid Carbide
• Coating: Uncoated

Product Highlights

This keyseat cutter is ideal for creating keyways in shafting and similar applications. The cutter is designed for right-hand cutting direction and has six teeth for efficient material removal.

Product Information

Standard Information

• Part Number: 22340
• Available Quantity: 2

Technical Specifications

• Cutter Diameter: 0.2500 inches
• Overall Length: 2.5000 inches
• Neck Diameter: 0.1250 inches
• Neck Length: 0.3750 inches
• No. of Teeth: 6
• Cut Width: 0.0400 inches
• Shank Diameter: 0.2500 inches
• Cutting Direction: Right Hand
