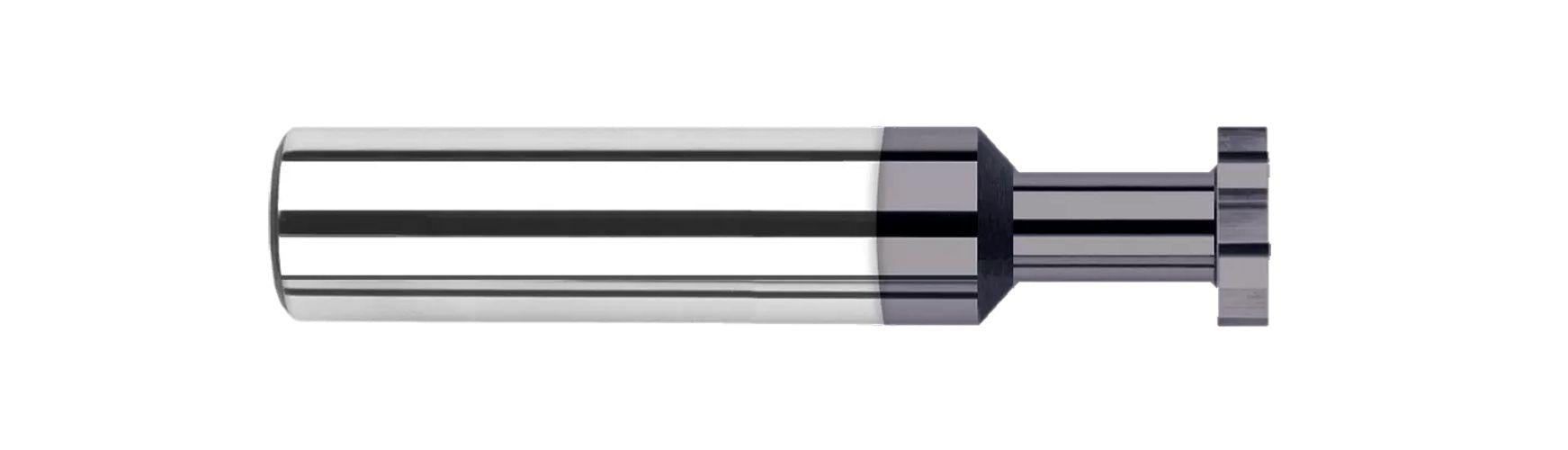

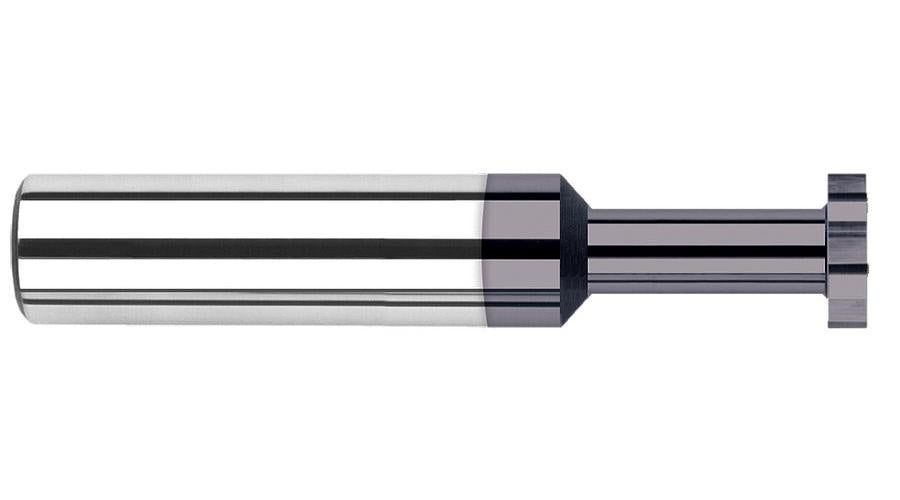

Harvey Tool 22330-C3 Standard Slotting Keyseat Cutter 1/4 Dia Cutter 0.03 W Cutting 2-1/2 in OAL 1/4 in Dia Shank

Product Description

The Harvey Tool 22330-C3 is a keyseat cutter designed for precision milling operations. It features a diameter of one-fourth inch and an overall length of two and a half inches. With a cutting width of thirty thousandths of an inch, this cutter is suitable for a variety of material types, including steel and aluminum. The product is made from solid carbide and has an AlTiN coating for enhanced durability.

• Product made from solid carbide.
• Coated with AlTiN for better performance.
• Overall length of two and a half inches.

Product Highlights

This keyseat cutter supports various applications in manufacturing and machining processes. Its solid carbide construction ensures longevity, and the AlTiN coating provides resistance against wear. It is ideal for milling keyways and slots in different materials, making it a great addition to any toolset.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

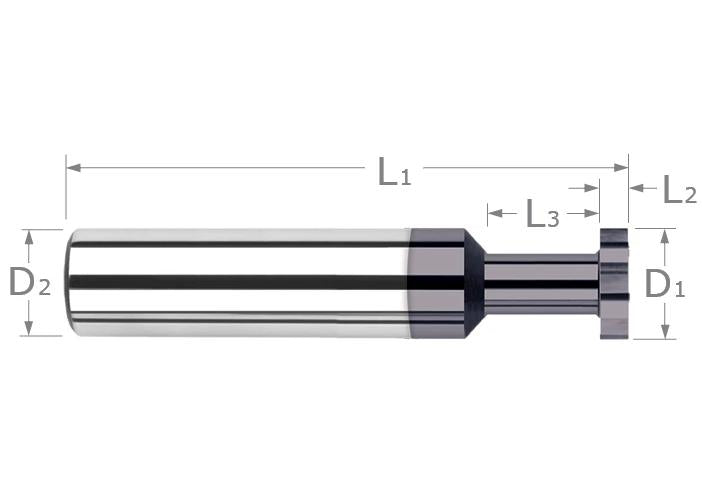

Technical Specifications

• Coating: AlTiN
• Diameter: 0.2500 inches (6.350 mm)
• Cut Width: 0.0300 inches (0.762 mm)
• Shank Diameter: 0.2500 inches (6.350 mm)
• Overall Length: 2.5000 inches (63.500 mm)
• Number of Teeth: 6
• Neck Diameter: 0.1250 inches (3.175 mm)
• Neck Length: 0.3750 inches (9.525 mm)
