Harvey Tool 22162-C3 1/8 X 1/16 C-3 Carbide Keyseat Cutter

Product Description

The Harvey Tool 22162-C3 is a carbide keyseat cutter designed for precise milling. This tool features a diameter of one eighth inch and a cutting width of sixty-two thousandths inch. It is made from solid carbide and coated with AlTiN for increased durability.

• Standard slotting keyseat cutter
• Compatible with various materials including steel, stainless steel, and non-ferrous metals
• Overall length of one and one-half inches

Product Highlights

This tool provides excellent performance in creating keyseats, offering efficient cutting and enhanced tool life.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

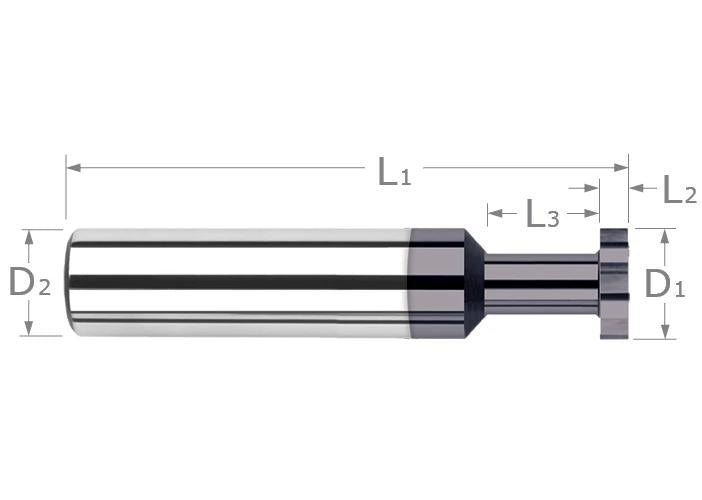

Technical Specifications

• Coating: AlTiN
• Diameter: 0.1250 (3.175 mm)
• Cut Width: 0.0620 (1.575 mm)
• Shank Diameter: 0.1250 (3.175 mm)
• Overall Length: 1.5000 (38.100 mm)
• No. Teeth: 6
• Neck Diameter: 0.0620 (1.575 mm)
• Neck Length: 0.1870 (4.750 mm)
