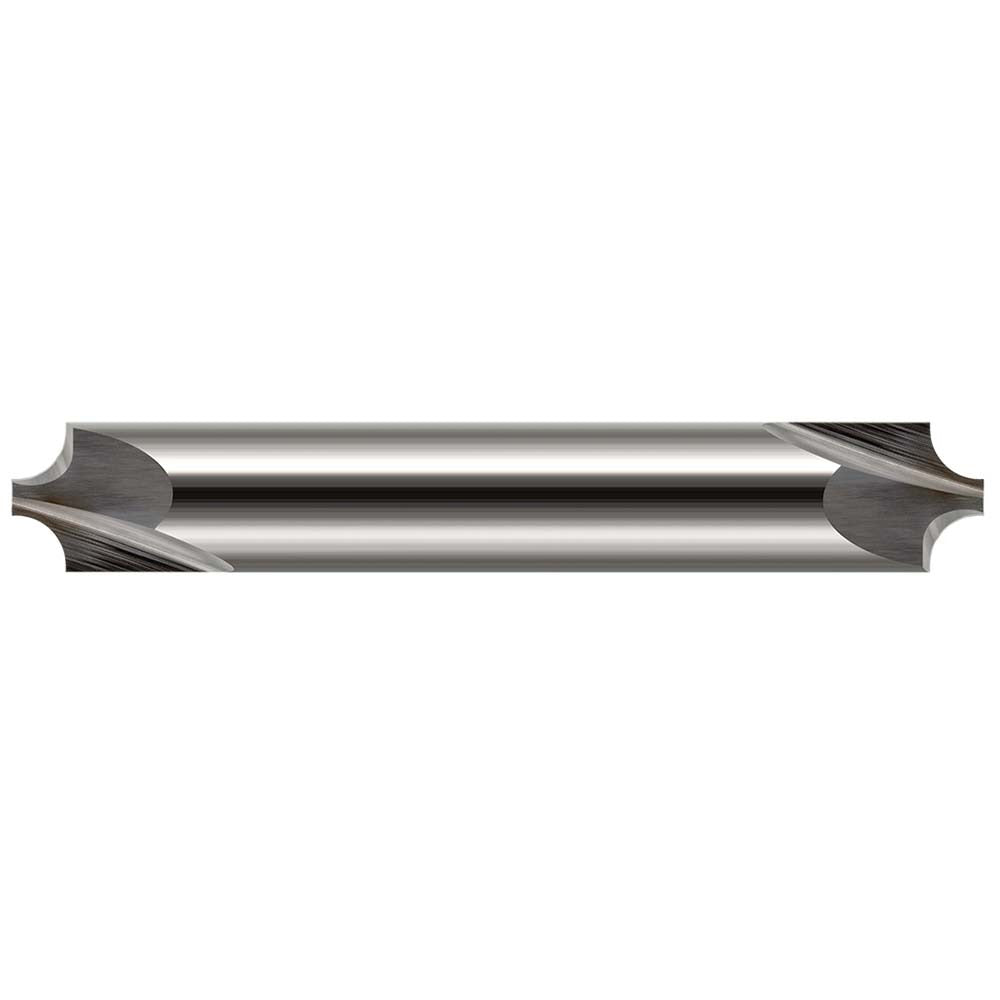

Harvey Tool 17025 Corner Rounding End Mill 1/8 Inch 2 Flute

Product Description

The HARVEY TOOL 17025 is a double-end corner rounding end mill designed to produce precise, consistent edge radii on machined workpieces. Built from solid carbide, it delivers the rigidity and wear resistance required for accurate profile work on ferrous and non-ferrous materials. This tool features a 0.02 mm (0.0250 inch) corner radius and a 1/8 inch mill diameter, with a tip diameter of 0.0460 inches. The bright, uncoated finish suits a wide range of general-purpose milling operations. Machinists and tool and die professionals rely on this style of end mill for finishing operations where edge integrity is critical.

This end mill is suited for CNC machining centers and manual mills in job shop, production, and tool and die environments. The double-end configuration allows both ends to be used, extending tool life per unit. The flared corner rounding geometry is part of the Harvey Tool Corner Rounding End Mills 2 and 4 Flute Flared series, making it appropriate for applications that require a clean, repeatable edge break or radius blend on complex part geometries. Typical materials include aluminum, steel, stainless, and plastics.

Key Features

• Solid carbide construction for rigidity and extended tool life in demanding cuts
• 0.02 mm (0.0250 inch) corner radius for precise edge profiling
• Double-end design allows use of both ends to maximize tool value
• 2-flute geometry provides good chip evacuation in a range of materials
• Bright, uncoated finish compatible with dry cutting and general-purpose operations
• 1/8 inch shank diameter fits standard collets and tool holders

Compatibility

Designed as a direct-fit replacement or standard tooling option for CNC machining centers and manual mills accepting a 1/8 inch shank collet or end mill holder. Part of the Harvey Tool Corner Rounding End Mills 2 and 4 Flute Flared series.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the 1/8 inch shank fully into a matched collet or end mill holder and torque the retention mechanism according to the tool holder manufacturer's specification. Inspect the cutting edges for chips or damage before each use.
