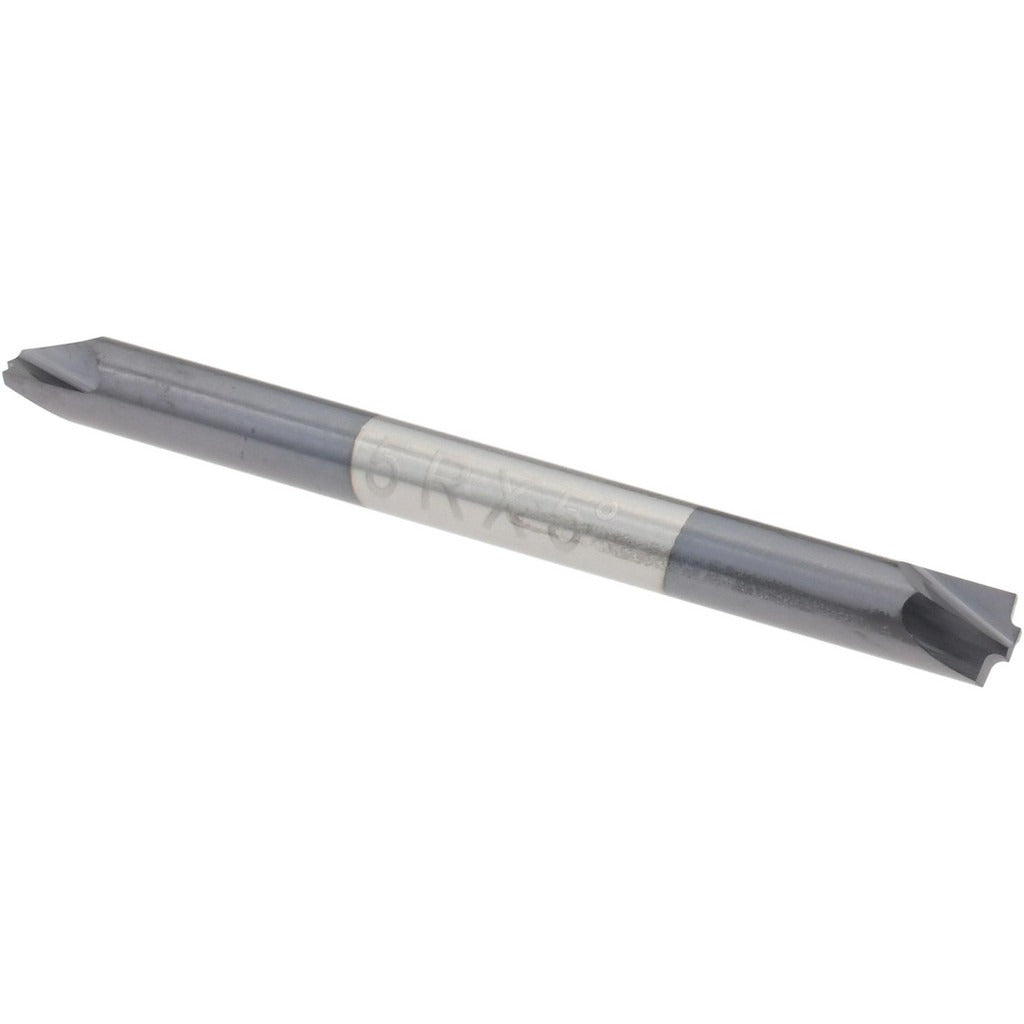

Harvey Tool 17015-C3 Corner Rounding End Mill 1/8 in

Product Description

The HARVEY TOOL 17015-C3 is a solid carbide corner rounding end mill designed to produce consistent edge radii on machined workpieces. With a 1/8-inch mill diameter and a 1/64-inch corner radius, this tool suits fine-detail work where tight tolerances are required. The double-end configuration provides two usable cutting ends, extending tool life between changes. An AlTiN coating improves hardness and heat resistance, making the tool suitable for dry or high-speed cutting applications in ferrous and hardened materials. Machinists and CNC operators in precision job shops, toolrooms, and production environments are the primary users of this end mill.

This corner rounding end mill fits CNC machining centers and manual mills where edge-breaking and radius generation on external part edges are required. The 1/8-inch shank diameter matches standard collets and end mill holders commonly found in smaller spindle setups. It is well suited for finishing passes on aluminum, steel, stainless steel, and hardened alloys where a consistent, burr-free radius is critical to part function or fit. The flared series geometry supports chip evacuation during contouring operations.

Key Features

• 1/64-inch corner radius for fine edge-rounding on precision components
• Solid carbide construction for rigidity and wear resistance
• AlTiN coating enhances thermal resistance and extends cutting life in hardened materials
• Double-end design provides two cutting ends per tool
• 2-flute geometry supports chip clearance in contouring and finishing passes
• 0.046-inch tip diameter accommodates tight-geometry transitions at the cutting zone

Compatibility

Designed for use with standard 1/8-inch collets and end mill holders on CNC machining centers and manual milling machines. Part of the Harvey Tool Corner Rounding End Mills - 2 and 4 Flute - Flared series.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the spindle is fully stopped and machine power is locked out before changing tooling. Seat the 1/8-inch shank fully and evenly in the collet or holder and torque to the tool holder manufacturer specification. Inspect the cutting edges before use, as carbide tools are brittle and susceptible to chipping if dropped or improperly handled.
