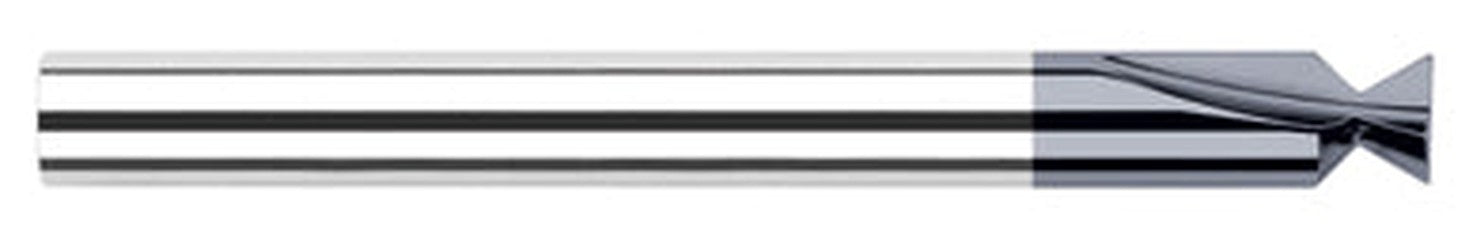

Harvey Tool 16710-C3 Corner Radius Dovetail Cutter, 0.1560 in Dia Cutter, 0.078 in W Cutting, 3/16 in Dia Shank Cylindrical Shank, 60 deg Included Angle, 2 in OAL

Product Description

The Harvey Tool 16710-C3 is a corner radius dovetail cutter designed for precision milling applications. This cutter has a diameter of 0.1560 inches and an overall length of 2 inches. It features a cutting width of 0.078 inches with a cylindrical shank diameter of 3/16 inches. The included angle is 60 degrees, making it suitable for precision cuts on various materials.

• Material: Solid Carbide with AlTiN coating
• Two flutes for efficient cutting
• Corner radius of 0.010 inches for fine detail work

Product Highlights

Experience enhanced performance with the Harvey Tool dovetail cutter, ideal for non-ferrous metals, cast iron, and steel.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 16710-C3

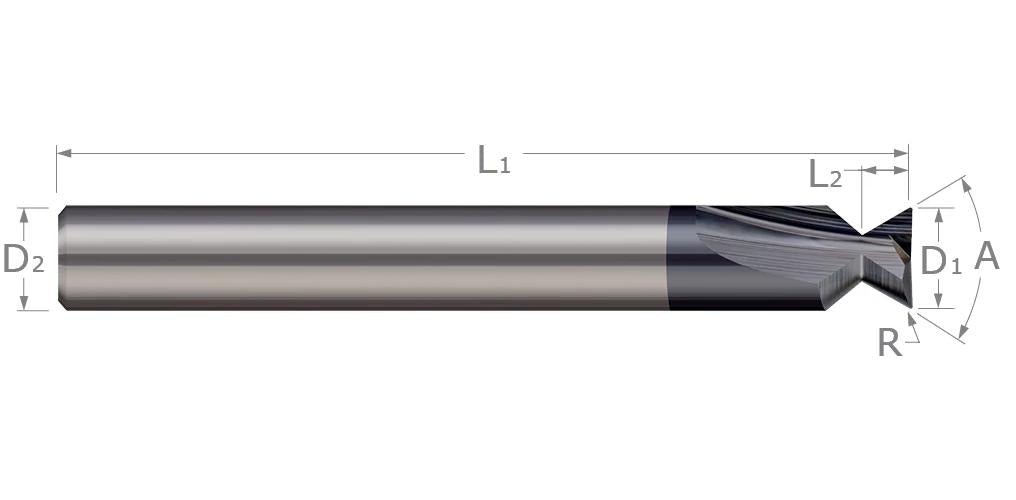

Technical Specifications

• Material: Solid Carbide
• Coating: AlTiN
• Diameter: 0.1560 inches
• Shank Diameter: 3/16 inches
• Overall Length: 2 inches
• Cutting Width: 0.078 inches
• Included Angle: 60 degrees
• Number of Flutes: 2
