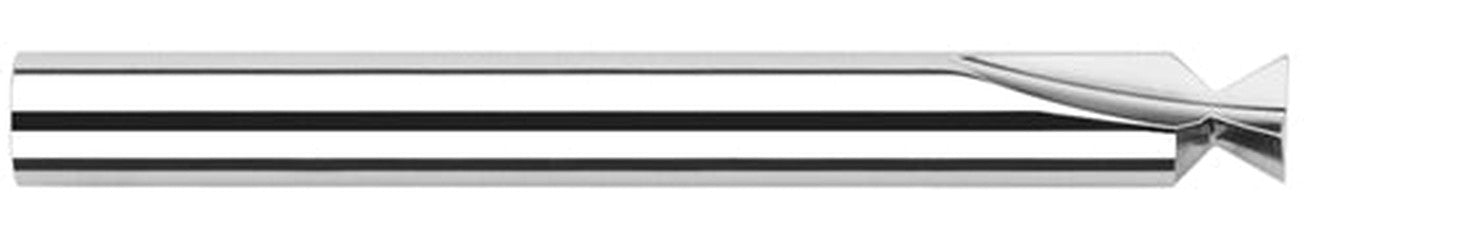

Harvey Tool 16508 Corner Radius Dovetail Cutter, 1/8 in Dia Cutter, 0.093 in W Cutting, 1/8 in Dia Shank Cylindrical Shank, 30 deg Included Angle, 1-1/2 in OAL

Product Description

The Harvey Tool 16508 is a corner radius dovetail cutter built for precision milling applications. It features a one-eighth inch diameter and a cutting width of zero point zero nine three inches. This solid carbide cutter is uncoated to provide efficient cutting performance across various materials.

• Unique corner radius design for improved cutting quality
• Ideal for use with aluminum, steel, and other materials
• Manufactured by a trusted brand in the cutting tool industry

Product Highlights

This dovetail cutter is suitable for precise dovetail cuts and is a preferred choice for machinists.

Product Information

Standard Information

• Brand: Harvey Tool
• Part #: 16508

Technical Specifications

• Material: Solid Carbide
• Coating: Uncoated
• Diameter: 0.1250 inches
• Shank Diameter: 0.1250 inches
• Overall Length: 1.5000 inches
• Corner Radius: 0.0100 inches
• Flutes: 2
• Cut Length: 0.0930 inches
• Included Angle: 30 degrees
