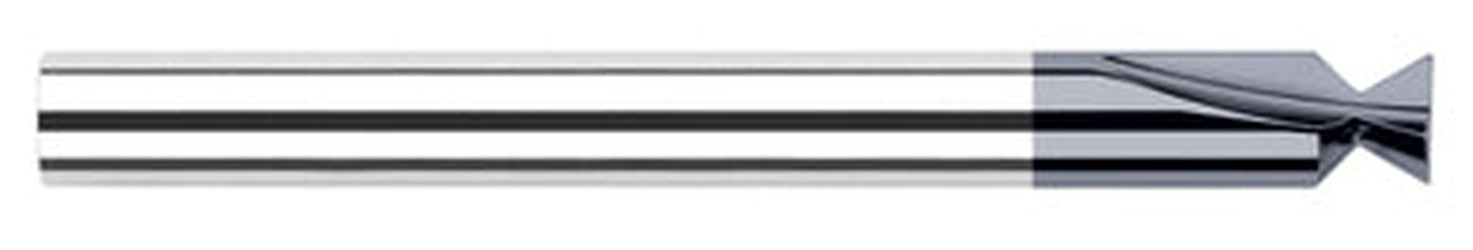

Harvey Tool 16432-C3 HAR 1/2 20DEG R.010 CARB/ALTIN DOVETAIL CUTTER 1/2x3 3F

Product Description

Harvey Tool 16432-C3 is a Dovetail Cutter made from solid carbide. This cutter features a corner radius of zero point zero one inches and is designed for precision milling tasks. Equipped with a twenty degree included angle, it is suitable for various materials including non-ferrous metals, cast iron, steel, stainless steel, and composites. Its compact design allows for efficient cutting with a length of cut measuring zero point five inches.

• Corner radius of zero point zero one inches
• Made of solid carbide for durability
• Three flutes for efficient chip removal

Product Highlights

This cutter offers versatility and precision for milling applications. The sharp corner radius enhances cutting performance.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 16432-C3

Technical Specifications

• Material: Solid Carbide
• Coating: AlTiN
• Diameter: 0.5000 inches (1/2 inch)
• Shank Diameter: 0.5000 inches (1/2 inch)
• Overall Length: 3.0000 inches
• Corner Radius: 0.0100 inches
• Flutes: 3
• Cut Length: 0.5000 inches (1/2 inch)
• Included Angle: 20 degrees
• Neck Diameter: 0.3280 inches
