Harvey Tool 16408 Corner Radius Dovetail Cutter, 1/8 in Dia Cutter, 0.125 in W Cutting, 20 deg Included Angle, 1-1/2 in OAL
Harvey Tool 16408 Corner Radius Dovetail Cutter, 1/8 in Dia Cutter, 0.125 in W Cutting, 20 deg Included Angle, 1-1/2 in OAL
Harvey Tool 16408 Corner Radius Dovetail Cutter, 1/8 in Dia Cutter, 0.125 in W Cutting, 20 deg Included Angle, 1-1/2 in OAL

Harvey Tool 16408 Corner Radius Dovetail Cutter, 1/8 in Dia Cutter, 0.125 in W Cutting, 20 deg Included Angle, 1-1/2 in OAL

Brand: HARVEY TOOL
SKU: 16408
Availability: Out Of Stock
$112.69
$112.69
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

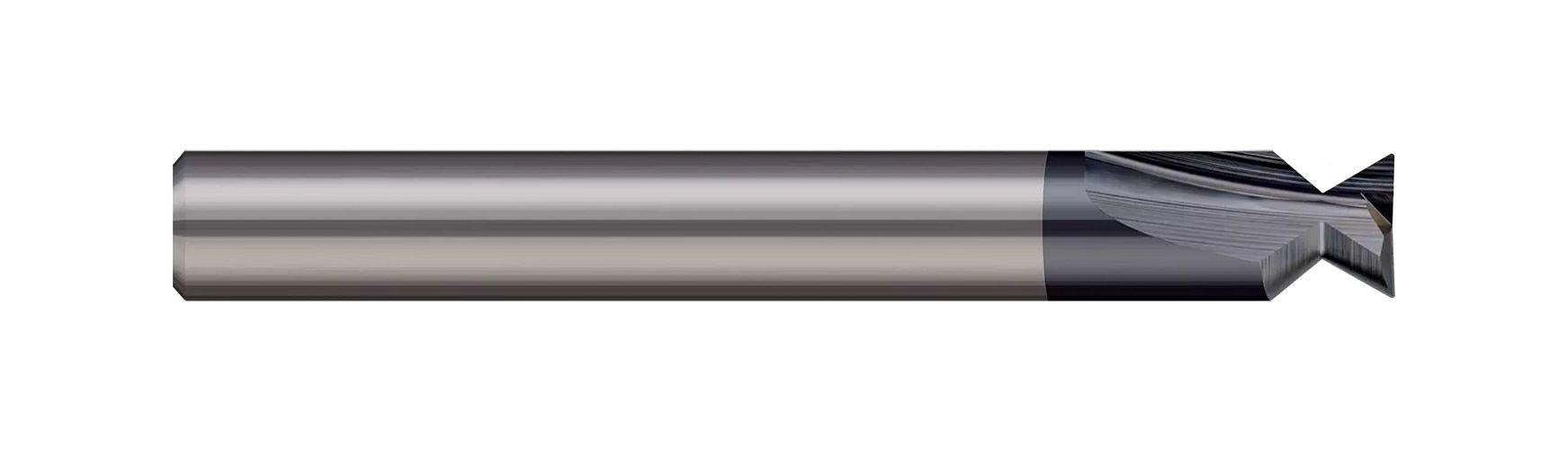

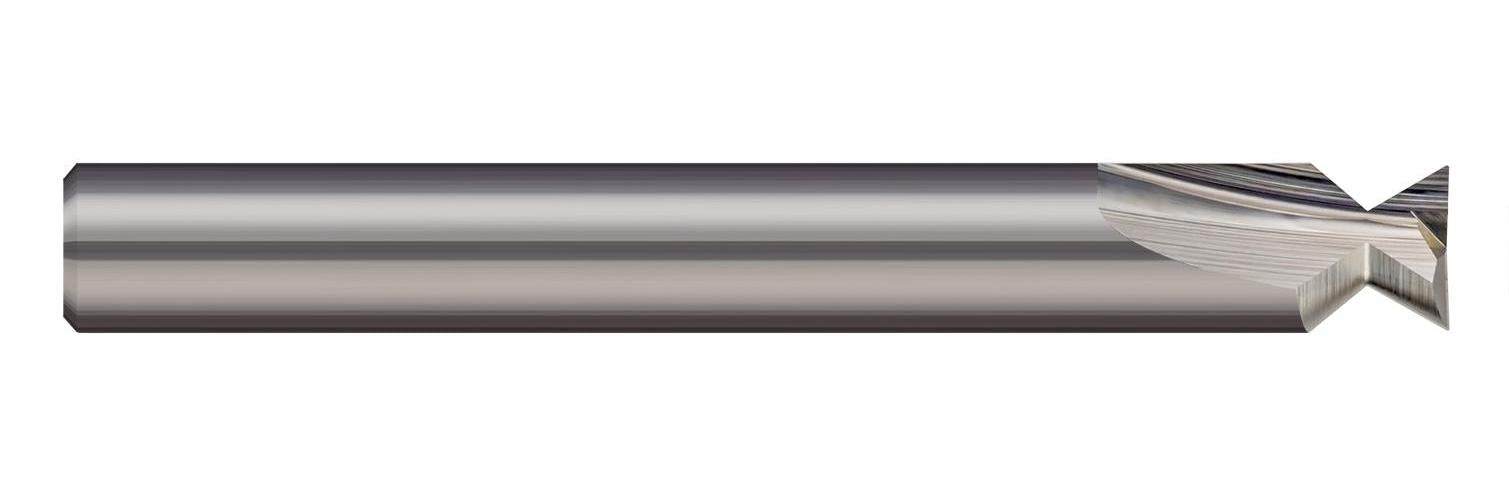

The Harvey Tool 16408 is a corner radius dovetail cutter made from solid carbide. This cutter has a diameter of one eighth inch and features a cutting width of one eighth inch. It is designed for precision milling tasks.

  • Cutting Diameter: 0.1250 inches
  • Overall Length: 1.5000 inches
  • Included Angle: 20 degrees

Product Highlights

This tool is suitable for working with a variety of materials including aluminum, steel, and composites, making it versatile for different applications.

Product Information

Standard Information

  • Brand: Harvey Tool
  • Material: Solid Carbide

Technical Specifications

  • Diameter: 0.1250 inches (3.175 mm)
  • Flutes: 2
  • Neck Diameter: 0.0850 inches (2.160 mm)
  • Corner Radius: 0.0100 inches
  • Cut Length: 0.1250 inches (3.175 mm)
