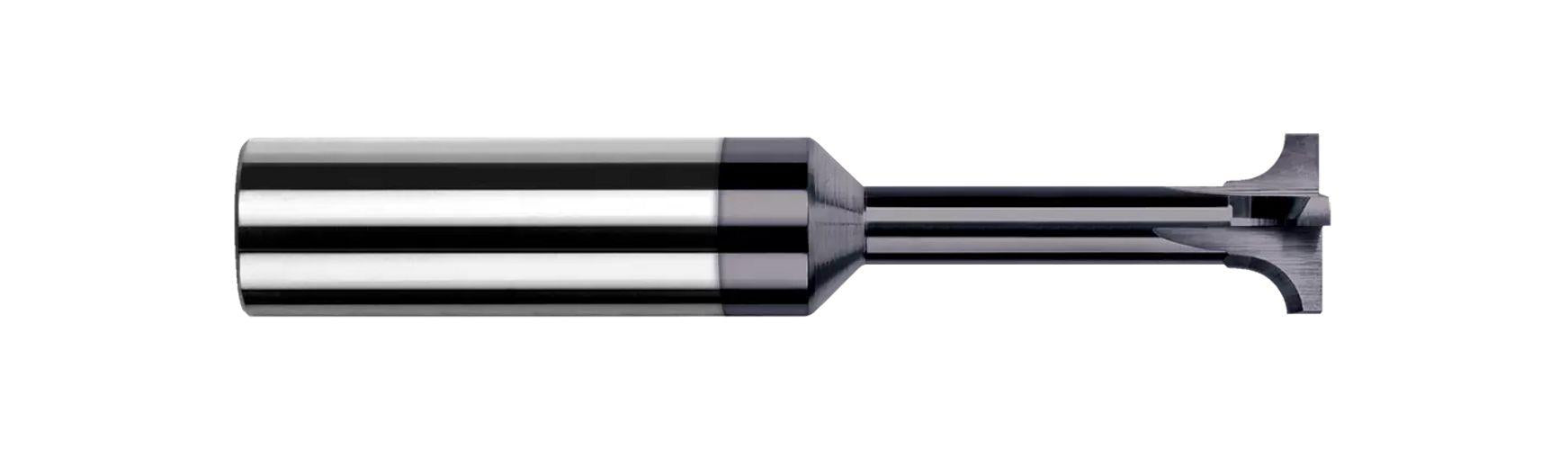

Harvey Tool 16108-C3 1/2 X .125R Back Corner Rounding End Mill

Product Description

The Harvey Tool 16108-C3 is a corner rounding end mill designed for efficient milling. This tool features a head diameter of one-half inch and a radius of one-eighth inch, making it suitable for precision applications in various materials.

• Flared design for optimal performance in corner rounding
• Solid carbide construction for durability
• AlTiN coating enhances tool life

Product Highlights

The 16108-C3 corner rounding end mill has four flutes and is ideal for milling radii on the back side of workpieces. Its geometry minimizes steps and smooths transitions, making it a reliable choice for metalworking tasks.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

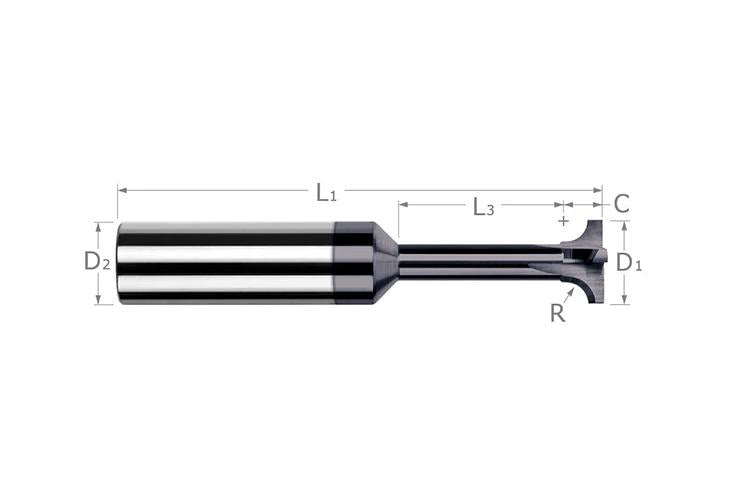

Technical Specifications

• Diameter: 0.5000 inches (12.700 mm)
• Shank Diameter: 0.5000 inches (12.700 mm)
• Overall Length: 3.0000 inches (76.200 mm)
• No. of Teeth: 4
• Flutes: 4
• Radius: 0.1250 inches (3.175 mm)
• Neck Length: 1.0000 inches (25.400 mm)
• Profile: Corner Rounder
