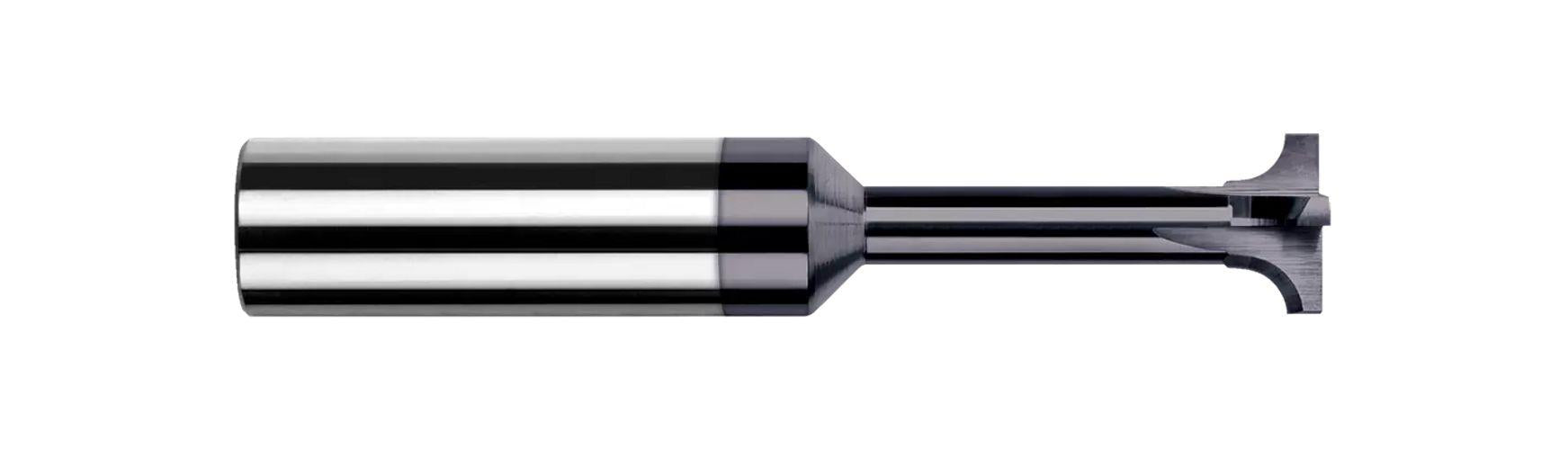

Harvey Tool 16030-C3 Flared Corner Rounding End Mill, 0.1 in Dia Cutter, 0.03 in Length of Cut, 3 Flutes, 3/16 in Dia Shank, 2 in OAL, AlTiN

Product Description

The Harvey Tool 16030-C3 is a corner rounding end mill designed for precision milling applications. This end mill features a cutter diameter of three-sixteenth inches and is equipped with three flutes. The AlTiN coating enhances durability and reduces wear during operation. The overall length of the tool measures two inches, making it suitable for various machining tasks.

• Head Diameter: 0.1875 inches (3/16)
• Neck Length: 0.5 inches (1/2)
• Radius: 0.0300 inches

Product Highlights

This tool is effective for creating rounded edges and profiles on workpieces, particularly in non-ferrous metals and composites.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

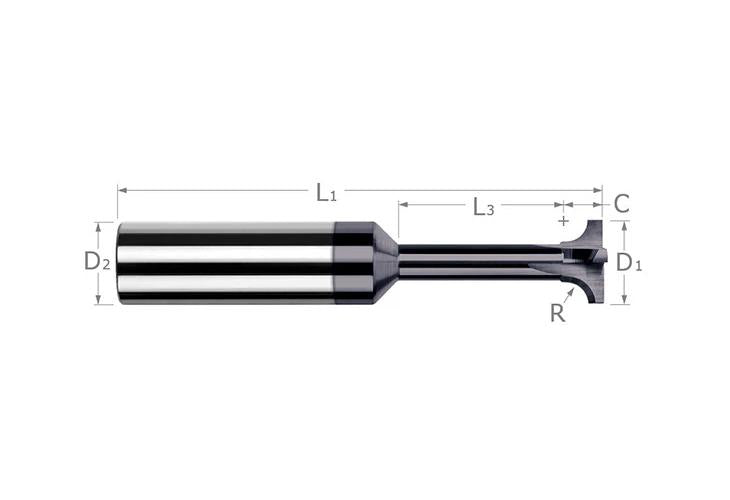

Technical Specifications

• Diameter: 0.1875 inches (4.763 mm) (3/16)
• Shank Diameter: 0.1875 inches (4.763 mm) (3/16)
• Overall Length: 2.0000 inches (50.800 mm)
• Number of Teeth: 3
• Flutes: 3
• Neck Diameter: 0.1000 inches (2.540 mm)
• Neck Length: 0.5000 inches (12.700 mm) (1/2)
• Profile: Corner Rounder
