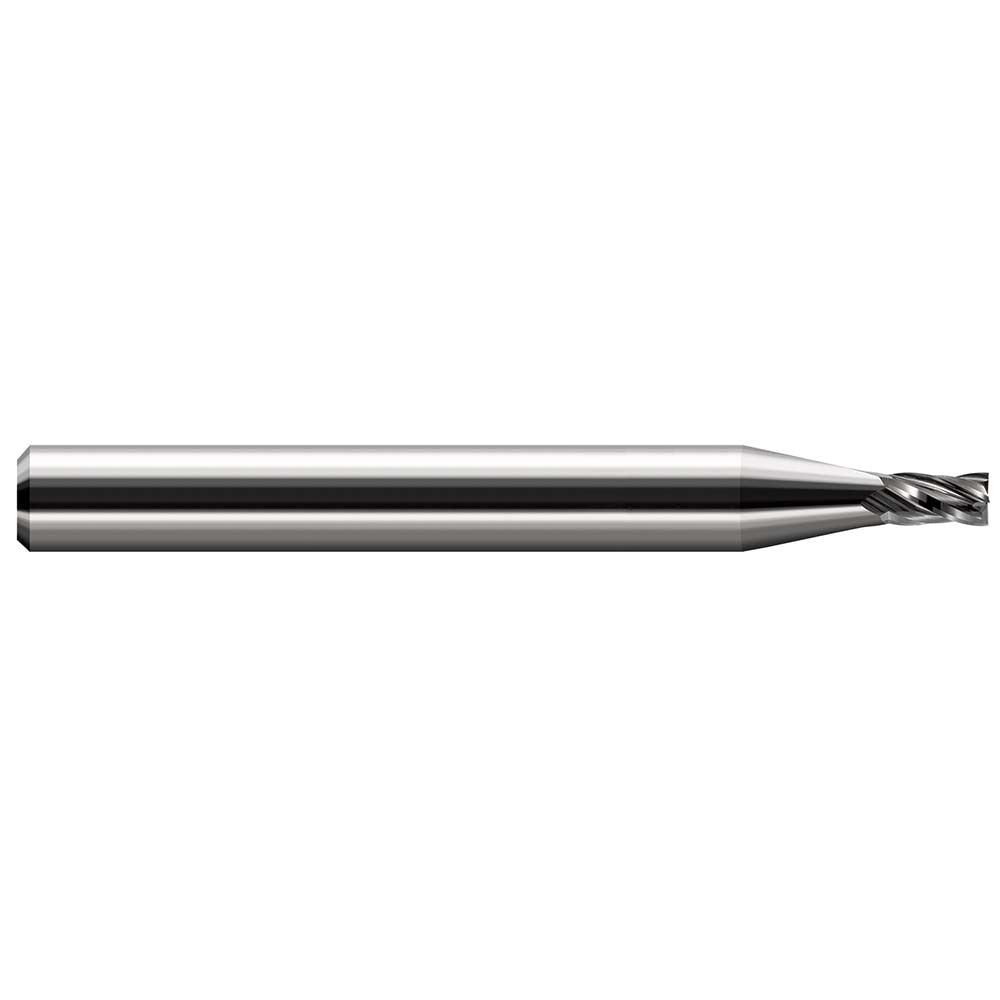

Harvey Tool 13999 Square End Mill 0.1 in 2 Flute Carbide

Product Description

The HARVEY TOOL 13999 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 0.1-inch cutting diameter and a 0.15-inch length of cut, this end mill is built for tight-tolerance work in small-feature geometry. The two-flute, right-hand cutting configuration provides efficient chip evacuation at small diameters. A 30-degree helix angle balances cutting efficiency with edge stability on the carbide substrate. The bright, uncoated finish is suitable for a wide range of materials where a coating is not required. Machinist and CNC operators working with small-bore pockets, slots, and contours will find this tool appropriate for their setups.

This end mill is suited for precision CNC milling work involving small-diameter features in ferrous and non-ferrous materials. The 0.125-inch shank diameter fits standard collet toolholding systems commonly used in vertical machining centers and CNC routers. At 1.5 inches overall length, the tool maintains rigidity at this diameter. It is a single-end, non-extended-reach design, making it best applied where short tool projection and high rigidity are priorities rather than deep-reach applications.

Key Features

• 0.1-inch cutting diameter for small-feature precision milling
• Solid carbide construction for rigidity and wear resistance
• 2-flute, right-hand cut and right-hand flute direction for efficient chip clearance
• 30-degree helix angle balances shear action and edge strength
• Centercutting design allows plunge entry into the workpiece
• Bright/uncoated finish suitable for general-purpose applications

Compatibility

Designed for use with standard 1/8-inch collet toolholding systems on CNC vertical machining centers and milling machines requiring small-diameter square end mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the 0.125-inch shank in a properly sized collet or end mill holder and torque the drawbar or collet nut to the machine manufacturer specification. Verify runout with a dial indicator before beginning a production cut. Do not exceed the manufacturer recommended speeds and feeds for this diameter and material combination.
