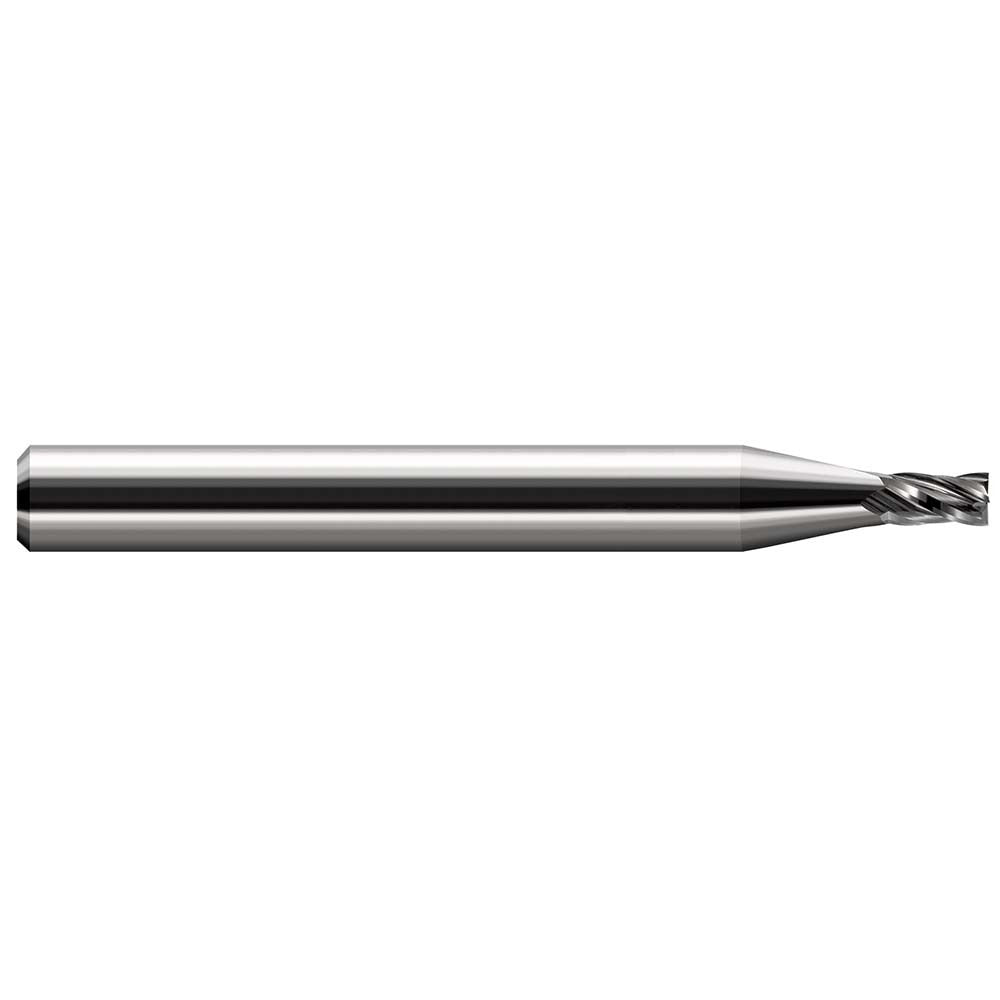

Harvey Tool 13960 Square End Mill 0.06 in 2 Flute Carbide

Product Description

The HARVEY TOOL 13960 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 0.06 inch cutting diameter and a 3/32 inch (0.09 inch) length of cut, this tool is built for fine-detail work in tight geometries. The two-flute, right-hand cutting configuration paired with a 30-degree helix angle promotes efficient chip evacuation and smooth surface finishes. The bright/uncoated finish suits a wide range of materials where coating is not required or preferred. Installed by machinists and CNC operators, this end mill fits 1/8 inch shank toolholders and is rated for single-end use with center-cutting capability.

This end mill is suited for light-duty slotting, profiling, and contouring passes in ferrous and non-ferrous materials on CNC machining centers and manual knee mills. Its small-diameter geometry makes it appropriate for detail milling, engraving, and intricate pocket work. The 1-1/2 inch overall length provides adequate reach for most standard setups without sacrificing rigidity at this diameter. Machinists working in tool and die, mold making, electronics, or precision part production will find this tool well-matched to fine-feature applications.

Key Features

• 0.06 inch cutting diameter for fine-detail and small-feature milling
• Solid carbide construction for hardness, wear resistance, and dimensional stability
• 2-flute design promotes chip clearance in slotting and light profiling
• 30-degree helix angle balances cutting efficiency and edge strength
• Center-cutting capability allows plunge entry into workpieces
• Bright/uncoated finish suitable for general-purpose material removal

Compatibility

Designed for use in 1/8 inch shank toolholders on CNC machining centers and manual mills requiring a single-end square profile end mill with right-hand cut and right-hand flute direction.

Installation Notes

Installation is performed by qualified machinists following standard toolholder torque and runout procedures. Ensure the machine spindle and toolholder are clean and free of debris before seating the shank. At this diameter, minimize overhang and use the shortest effective setup to reduce deflection and tool breakage risk. Always verify spindle speed and feed rate settings against the material being cut before initiating a pass.
