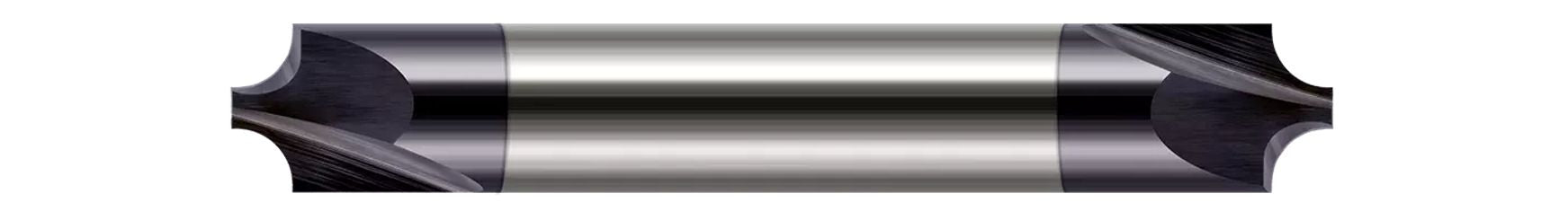

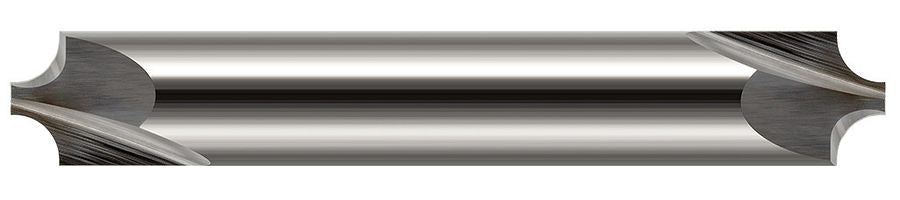

HARVEY 31700 Corner Rounding End Mills - 2 & 4 Flute - Flared, Specialty Profiles

Product Description

The HARVEY 31700 Corner Rounding End Mills are effective tools designed for creating flared, specialty profiles. These end mills feature both 2 and 4 flute options, facilitating versatile cutting performance. The tool, identified by MPN 31700, has a radius of zero point one inches and a pilot diameter of zero point zero four five inches. It includes a shank diameter of zero point three one two five inches and an overall length of four inches.

• Corner rounding utility
• Effective in deburring applications
• Designed for specialty profiles

Product Highlights

This tool is useful for corner rounding and can efficiently deburr edges in various materials, enhancing the finish of the workpieces.

Product Information

Standard Information

• Tool #: 31700
• Radius: 0.1000 inches

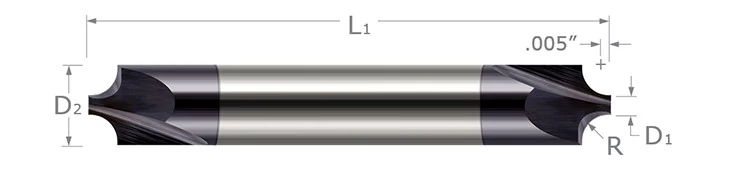

Technical Specifications

• Pilot Diameter: 0.0450 inches
• Flutes: 2
• Shank Diameter: 0.3125 inches (5/16)
• Overall Length: 4.0000 inches (4)
• Coating: UN
• Profile: Corner Rounder
