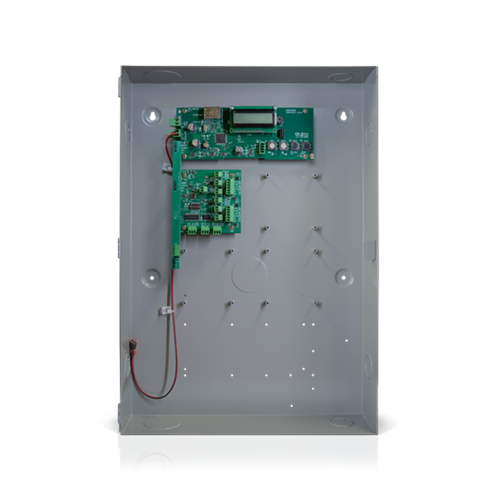

Hartmann PRS-2DR-STARTER 2 Door Kit with 1 PRS-Master, 2 PRS-TDMs and 2 PRS-STRIPS in a Steel Vented and Lockable Enclosure

Product Description

The HARTMANN CONTROLS PRS-2DR-STARTER is a compact and cost-effective controller designed for easy scalability and seamless retrofits. It controls up to 2 doors, expandable to 8 with additional PRS-TDM units. The controller uses standard access control cabling and supports Wiegand or OSDP readers. The LCD screen facilitates diagnostics, troubleshooting, and network configuration.

• LCD display for easy and efficient diagnostics and IP programming, reducing installation costs.
• Accessible diagnostics and IP programming via a password-protected web interface.
• Utilizes a solid-state design for durability and ease of learning.

Product Highlights

The PRS-2DR-STARTER offers advanced hardware functions, including ADA opener sequencing, key-switch level alarm integration, and mantrap/interlock support.

Product Information

Standard Information

• Brand: HARTMANN CONTROLS
• Manufacturer Part Number: PRS-2DR-STARTER

Technical Specifications

• Alternate Part Number-1: 228503
• POWER: 12-13.8VDC input with advanced power distribution 12VDC 5A total power available for doors and devices.
• BATTERY BACKUP: Dedicated port for battery backup with built-in charging. Standard 12VDC 7Ah dry cell battery (not included)
• COMMUNICATION: RJ45 Ethernet Port 10/100Mbps. RS-485 communication between PRS-Master and TDM expansion panels.
• LOCK POWER: 1 WET 12VDC 500mA relay per door, eliminating the need for external lock power supplies. Intelligent power control to reduce power consumption and reduce strain on solenoid-based locksets
• OUTPUTS: Two dry contact solid state relays can switch up to 24VDC 1A.
• INPUTS: Four fully configurable inputs can be set to perform any function. Optionally can be configured as Supervised inputs using the included resistors.
• SOFTWARE: The door controller is programmed and monitored by PROTECTOR.Net server software. The software can be hosted by Hartmann Controls, a Security integrator or via local/remote Windows PC/ Server.
• STORAGE: Stores up to 100,000 cardholders. Stores up to 50,000 events, first in first out queue.
• ENCLOSURE: Lockable and vented steel enclosure, 13.6 x 3 x 19.3
