Hartmann Controls Prox3 Mullion/Gang Box Combo Proximity Reader, 4-6 inches Read Range 228502

Product Description

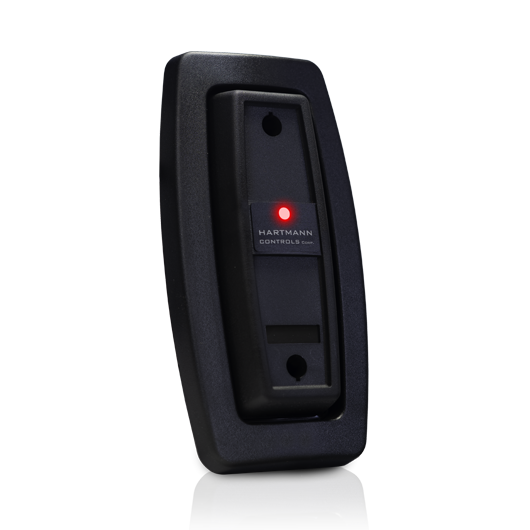

The HARTMANN CONTROLS PROX3 is a combination single gang and mullion mount 125 KHz Wiegand proximity reader. It features up to 6" non-contact read range with clamshell card. This reader can read Hartmann 40 bit credentials, certain HID, AWID and Pyramid credentials. Mounting is simplified with horizontal and vertical mounting slots.

• Combination single gang and mullion mount
• 125 KHz wiegand proximity reader
• Up to 6" non-contact read range with clamshell card

Product Highlights

The PROX3 proximity reader is ideal for access control systems, offering versatile mounting options and compatibility with multiple credential formats.

Product Information

Standard Information

• Brand: HARTMANN CONTROLS
• Manufacturer Part Number: PROX3

Technical Specifications

• Alternate Part Number-1: 228502
• Format: SMART
• Product Type: ACCESS READER
• Read Format: SMART CARD
• Sales Category: ELECTRIC READERS AND KEYPAD
• UNSPSC Code: 43211700
• Voltage: 5-14 VDC
• Operating Temperature: -40°F to +149°F (-40°C to +65°C)
• Interface: Wiegand 12" pigtail
• Frequency: 125 kHz
• Compliance: CSA, UL, FCC, CE, C-Tick.
• Current: 45 mA typical, 80 mA
• Indicator: Four state LED indicators (red, green, amber, off)
• Max Read Range: PSCI - Up to 6 inches (152 mm), PSI4 - Up to 4 inches (102 mm), PSK3 - Up to 4 inches (102 mm).
• Mount Type: Mullion Mount, Single Gang Mount
