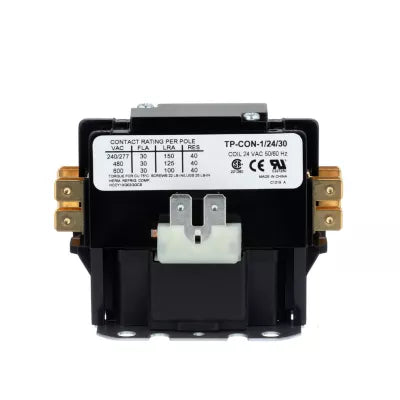

Hartland Controls tp-con-1/24/30 Contactor 1 Pole 24V 30A

Product Description

The HARTLAND CONTROLS tp-con-1/24/30 is a single-pole definite purpose contactor with a shunt cover, rated for 24 volts AC coil voltage and 30 amps full load. Definite purpose contactors are purpose-built switching devices used to control loads in refrigeration, air conditioning, and electric heating equipment. This unit uses box lug terminations and quick connects for straightforward field replacement. The shunt cover shields the coil assembly from contaminants, moisture, and debris, extending service life in demanding environments. Licensed HVAC technicians and refrigeration service professionals install this contactor as a direct replacement in existing electrical panels and equipment enclosures.

This contactor is suited for residential and light commercial HVAC and refrigeration applications, including condensing units, heat pumps, electric heating elements, and refrigeration compressor circuits. The universal mounting base is designed to fit the footprint of most major contactor brands, reducing the need to source exact OEM hardware during service calls. Box lug and quick-connect terminations allow for efficient wiring during replacement work.

Key Features

• Single-pole configuration rated at 30 amps full load current
• 24 volts AC coil voltage for compatibility with standard low-voltage control circuits
• Shunt cover provides protection from moisture, dust, and environmental contaminants
• Universal mounting base allows replacement of most major contactor brands
• Box lug terminations and quick connects simplify field wiring and replacement
• Definite purpose design rated for refrigeration, air conditioning, and electric heating loads

Compatibility

Designed as a universal OEM-style replacement contactor for refrigeration, air conditioning, and electric heating systems using single-pole 24-volt control circuits.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed electrician. Disconnect and lock out all power to the equipment before removing or installing the contactor. Verify that the replacement contactor amp rating and coil voltage match the equipment nameplate and original component specifications before energizing. Work should comply with applicable NEC requirements and local codes governing low-voltage control and line-voltage switching circuits.

Technical Specifications

• Poles: 1
• Coil Voltage: 24 volts AC
• Amperage Rating: 30 amps
• Termination Type: Box lug and quick connect
• Application: Refrigeration, air conditioning, electric heating
• Manufacturer Part Number (OEM): HCCY1XQ02GG217CS

Standard Information

• Brand: HARTLAND CONTROLS
• Manufacturer Part Number: tp-con-1/24/30
