Hartland Controls tp-cap-60/5/440r Run Capacitor 440VAC

Product Description

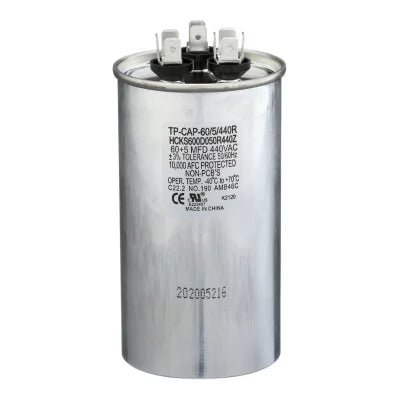

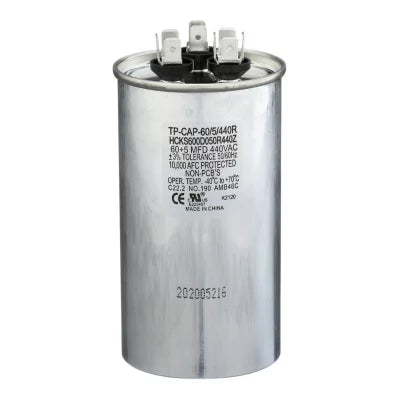

The HARTLAND CONTROLS tp-cap-60/5/440r is a dual-rated motor run capacitor rated at 60 plus 5 microfarads (MFD) and 440 VAC. It features a round aluminum oil-filled case designed for continuous-duty operation in single-phase motors. This type of capacitor maintains motor torque and efficiency during the run cycle, making it a standard replacement component in residential and light commercial HVAC equipment. Licensed HVAC technicians typically handle replacement during compressor or fan motor service calls. The unit is manufactured in accordance with UL 810 and EIA standard RS-456, confirming it meets recognized industry safety and performance requirements.

This capacitor is suited for use in split-system air conditioners, heat pumps, and package units where a dual-run capacitor serves both the compressor and condenser fan motor from a single component. The round case format is common in equipment that uses a round capacitor bracket or strap mount. Both oil-filled aluminum and plastic dry construction variants exist within the HARTLAND CONTROLS line, and this unit uses aluminum oil-filled construction, which is the standard choice for outdoor condensing unit applications exposed to heat cycling.

Key Features

• Dual-rated at 60 MFD and 5 MFD in a single round case, serving compressor and fan motor simultaneously
• 440 VAC rating provides voltage headroom above standard 370 VAC systems, suitable for both 370 V and 440 V applications
• Aluminum oil-filled construction for reliable thermal performance in outdoor condensing unit environments
• Round case form factor fits standard strap and bracket mounts
• Manufactured to UL 810 and EIA RS-456 standards

Compatibility

Designed as an OEM-style replacement dual-rated run capacitor for residential and light commercial HVAC systems requiring a 60 plus 5 MFD, 440 VAC round capacitor.

Installation Notes

Run capacitor replacement is performed by licensed HVAC technicians. Always disconnect and lock out power to the unit before handling capacitors, as they retain a charge even after power is removed — discharge the capacitor through a resistor before touching terminals. Confirm the replacement MFD ratings and voltage rating match or exceed the OEM specification before installation. Follow NEC requirements for disconnect placement and wiring practices when servicing condensing units.

Technical Specifications

• Capacitance: 60 plus 5 MFD (dual rated)
• Voltage Rating: 440 VAC
• Case Shape: Round
• Construction: Aluminum oil-filled
• Standards: UL 810, EIA RS-456
• Unit of Measure: Each

Standard Information

• Brand: HARTLAND CONTROLS
• Manufacturer Part Number: tp-cap-60/5/440r
