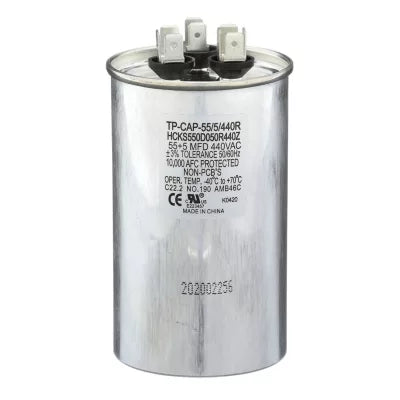

Hartland Controls tp-cap-55/5/440r Run Capacitor 55/5 Mfd 440V

Product Description

The HARTLAND CONTROLS tp-cap-55/5/440r is a dual-rated motor run capacitor designed for use in HVAC equipment requiring two capacitance values in a single round housing. Rated at 55 MFD and 5 MFD with a 440 VAC rating, this capacitor supports both the compressor and fan motor circuits from one unit. The aluminum oil-filled construction meets UL 810 and EIA standard RS-456, making it a code-compliant replacement for failed or degraded capacitors in split systems, heat pumps, and package units. Licensed HVAC technicians are the primary installers for this component.

This dual run capacitor is suited for residential and light commercial air conditioning and heat pump systems where a single capacitor serves both the compressor and the outdoor fan motor. The 55 MFD side typically supports the compressor start winding while the 5 MFD side supports the condenser fan motor. The round case fits standard capacitor brackets found in most outdoor condensing units. It is manufactured in accordance with UL 810 and EIA RS-456 standards.

Key Features

• Dual-rated capacitance: 55 MFD and 5 MFD in a single round housing
• 440 VAC rated for broad voltage compatibility across residential and light commercial equipment
• Aluminum oil-filled construction for reliable thermal performance
• Round case design fits standard condensing unit capacitor brackets
• Built to UL 810 and EIA standard RS-456 specifications

Compatibility

Designed as an OEM-style replacement dual run capacitor for residential and light commercial HVAC condensing units requiring a 55/5 MFD, 440 VAC round capacitor.

Installation Notes

A licensed HVAC technician should perform capacitor replacement. Disconnect and lock out power to the unit at the disconnect box before servicing. Discharge the existing capacitor fully before handling, as capacitors can retain a lethal charge after power is removed. Verify MFD and voltage ratings match the equipment nameplate before installation.

Technical Specifications

• Capacitance: 55/5 MFD (Dual Rated)
• Voltage Rating: 440 VAC
• Case Shape: Round
• Construction: Aluminum oil-filled
• Standards: UL 810, EIA RS-456
• Manufacturer Part Number (Alt): HCKS550D050R440217Z

Standard Information

• Brand: HARTLAND CONTROLS
• Manufacturer Part Number: tp-cap-55/5/440r
