Hartland Controls tp-cap-35/7.5/440r Run Capacitor 35/7.5 Mfd

Product Description

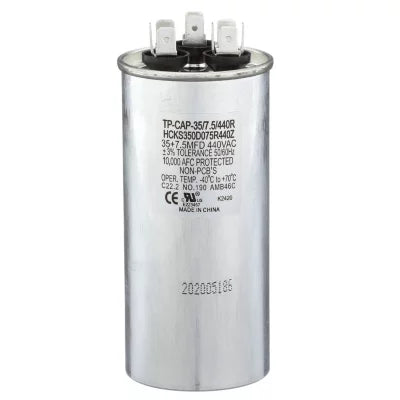

The HARTLAND CONTROLS tp-cap-35/7.5/440r is a dual-rated motor run capacitor rated at 35/7.5 microfarads (MFD) and 440 volts AC. It is housed in a round aluminum oil-filled case and is built to UL 810 and EIA standard RS-456. This capacitor serves dual motor circuits simultaneously, supplying the continuous phase-shift current needed to keep compressor and fan motors running efficiently. It is a direct service component installed inside residential and light commercial HVAC equipment by licensed HVAC technicians during routine maintenance, capacitor replacement calls, or system startup procedures.

This dual run capacitor is used in split-system air conditioners and heat pumps where a single capacitor supports both the compressor motor and the condenser fan motor. The round case form factor fits standard capacitor brackets and mounting clips found in most outdoor condensing units. The 440 VAC rating provides a safe operating margin above the 370 VAC systems it also serves, making it a common cross-application replacement in the field.

Key Features

• Dual-rated at 35 MFD and 7.5 MFD from a single round capacitor body
• 440 VAC rating for use in both 370 VAC and 440 VAC HVAC systems
• Aluminum oil-filled construction for reliable thermal performance
• Round case design fits standard condensing unit capacitor brackets
• Manufactured in accordance with UL 810 and EIA standard RS-456

Compatibility

Designed as an OEM-style replacement dual run capacitor for residential and light commercial split-system air conditioners and heat pumps requiring a 35/7.5 MFD, 440 VAC round capacitor.

Installation Notes

Installation must be performed by a qualified HVAC technician. Disconnect and lock out all power to the unit before handling any capacitor, as run capacitors retain a dangerous charge even after power is removed and must be safely discharged before servicing. Verify the MFD ratings, voltage rating, and terminal configuration match the original component before installation. Follow all applicable local codes and NEC requirements when servicing electrical components in HVAC equipment.

Technical Specifications

• Capacitance: 35/7.5 MFD
• Voltage Rating: 440 VAC
• Case Shape: Round
• Construction: Aluminum oil-filled
• Rating Type: Dual rated
• Standards: UL 810, EIA RS-456
• Manufacturer Part Number (Alt): HCKS350D075R440217Z

Standard Information

• Brand: HARTLAND CONTROLS
• Manufacturer Part Number: tp-cap-35/7.5/440r
