Hartland Controls tp-cap-25/5/440r Run Capacitor 25/5 Mfd 440V

Product Description

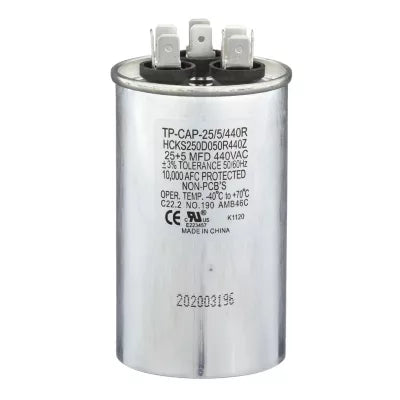

The HARTLAND CONTROLS tp-cap-25/5/440r is a dual-rated motor run capacitor rated at 25 plus 5 microfarads (MFD) and 440 VAC. It features a round aluminum oil-filled case and is designed for continuous duty in motor run applications. Built to UL 810 and EIA standard RS-456, this capacitor delivers stable capacitance to support both the compressor and fan motor circuits in a single unit. Licensed HVAC technicians install this component as a direct replacement in split-system air conditioners, heat pumps, and package units where a round dual-rated capacitor is required.

This capacitor is suited for residential and light commercial HVAC applications where the condenser unit requires a single component to serve both the compressor motor and the outdoor fan motor. The round case profile fits standard capacitor brackets and mounting hardware commonly found in condensing units. Its aluminum oil-filled construction supports the thermal demands of outdoor equipment operating through extended run cycles.

Key Features

• Dual-rated design: 25 MFD for compressor circuit, 5 MFD for fan motor circuit
• 440 VAC rating provides a voltage safety margin above typical 370 VAC residential applications
• Round aluminum oil-filled case construction
• Built to UL 810 and EIA standard RS-456
• Sold individually (each)

Compatibility

Designed as an OEM-style replacement for residential and light commercial HVAC condensing units requiring a round dual-rated 25/5 MFD 440 VAC motor run capacitor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before servicing capacitors, and verify that the capacitor is fully discharged before handling. Confirm that the MFD ratings and voltage rating of the replacement capacitor match the original equipment specifications. Always follow applicable local codes and the equipment manufacturer guidelines when replacing capacitors.

Technical Specifications

• Capacitance: 25/5 MFD (dual rated)
• Voltage Rating: 440 VAC
• Case Style: Round
• Construction: Aluminum oil-filled
• Standards: UL 810, EIA RS-456
• Unit of Measure: Each

Standard Information

• Brand: HARTLAND CONTROLS
• Manufacturer Part Number: tp-cap-25/5/440r
