Hartland Controls TP-90340 DPDT 24V Relay | Series: HCR-6

Product Description

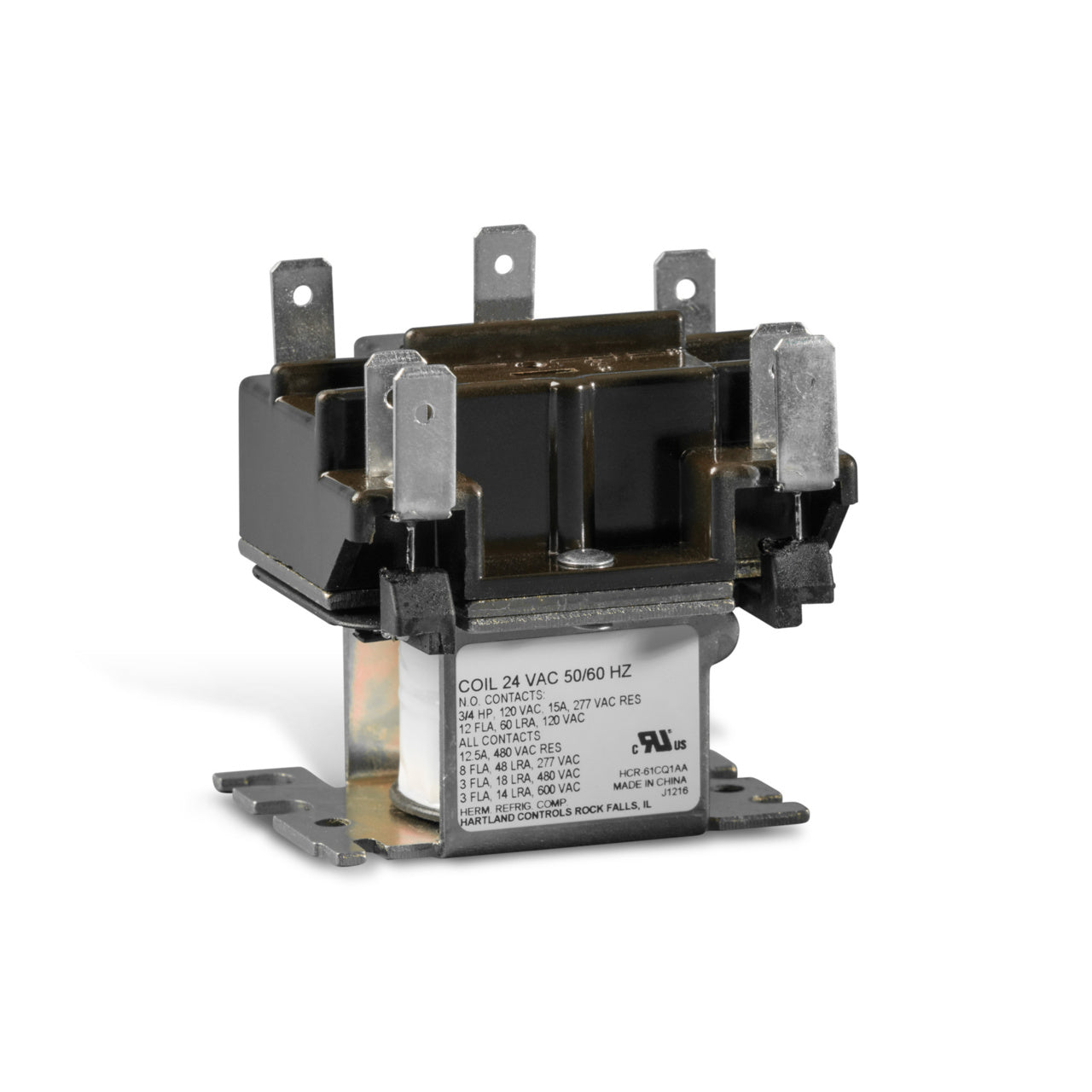

The HARTLAND CONTROLS TP-90340 relay controls circuits through a low-power signal. This general purpose relay is used in applications including HVAC systems, standby power supplies and telephone exchanges. It features a DPDT contactor form per circuit, a nominal coil voltage of 24V, and a chassis mount.

• Full Load Current Inductive: 12A
• Full Load Current Resistive: 15A
• Operating Temperature: -55° to 125°C
• Termination Type: 0.250" quick-connect lug terminals

Product Highlights

The HARTLAND CONTROLS TP-90340 relay is designed for durability, with a mechanical life expectancy of 1 million cycles and an electrical life expectancy of up to 250,000 operations.

Product Information

Standard Information

• Brand: HARTLAND CONTROLS
• Manufacturer Part Number: TP-90340

Technical Specifications

• Contactor Form per Circuit: DPDT
• Full Load Current Inductive (A): 12
• Full Load Current Resistive: 15
• Input Voltage Maximum (V): 26.4
• Mechanical Life Expectancy: 1 Million cycles
• Nominal Coil Voltage (V): 24
• Electrical Life Expectancy Inductive: 100,000 operations
• Electrical Life Expectancy Resistive: 250,000 operations
• Locked Rotor Current: 60
• Mounting Method: Chassis Mount
• Must Release Voltage: 4.8
• Pull In Voltage (V): 20.4
• Switching Voltage Maximum (V): 24
• Termination Type: 0.250" quick-connect lug terminals
• Operating Temperature: -55° to 125°C
• Temperature Maximum (°F): 257
• Temperature Minimum (°F): -67
• Special Function: Class B insulation system
