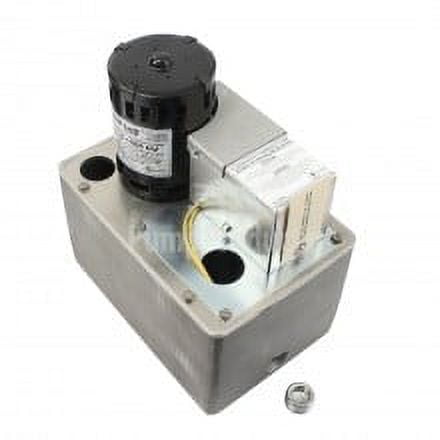

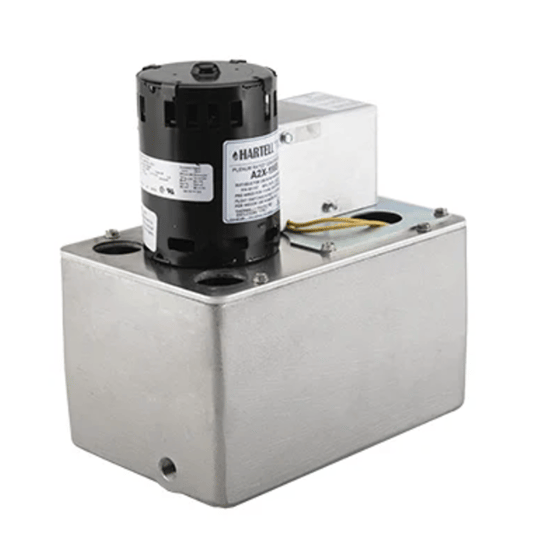

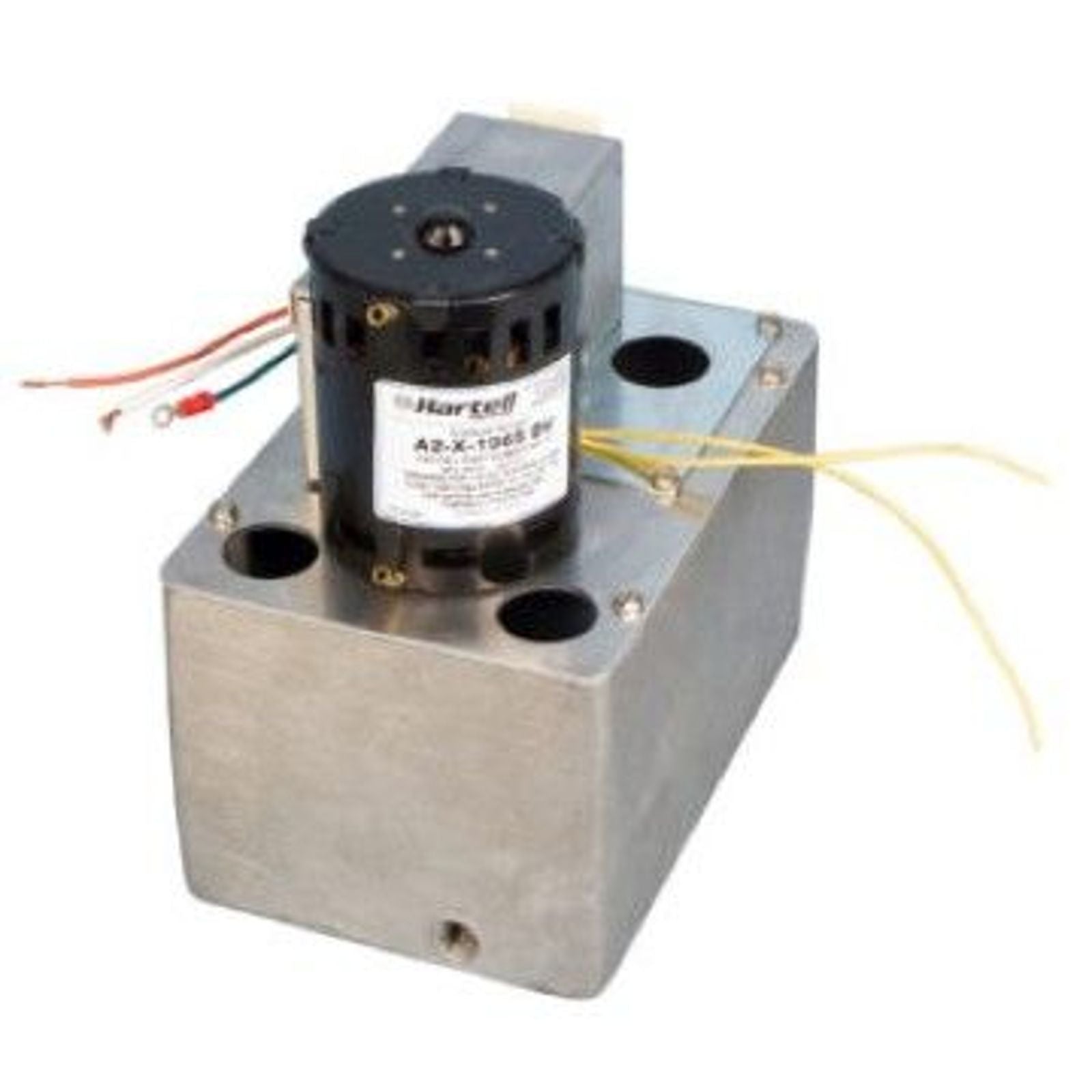

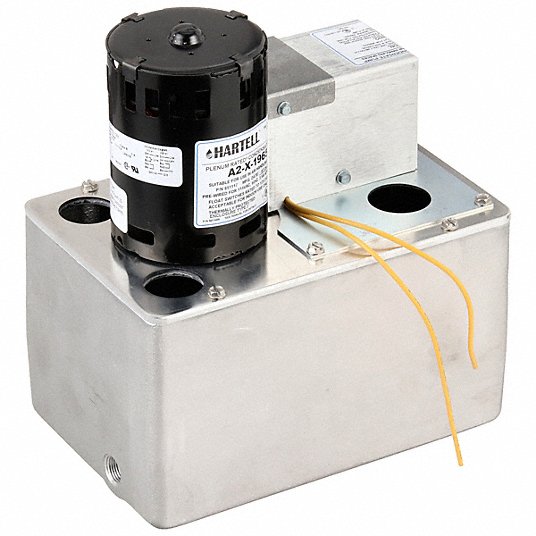

Hartell A2X-1965 Plenum Plus Cast Aluminum Condensate Pump 1 gallon

Product Description

The Hartell A2X-1965 condensate pump features a heavy-duty cast-aluminum reservoir designed for high pumping capacity in plenum air handling spaces. Meeting rigorous standards for plenum air handling, it's UL 2043 tested for fire resistance and low-smoke production. This condensate pump reliably removes excess water from air conditioning and HVAC systems, preventing potential damage.

• UL 2043 Plenum Rated
• 1-gallon heavy-duty cast aluminum reservoir
• Dual voltage thermally protected motor

Product Highlights

The Hartell A2X-1965 condensate pump provides superior durability, efficient heat dissipation and safety features for trouble-free performance.

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: A2X-1965
• Country of Origin: UNITED STATES

Technical Specifications

• Motor: 1/10 @ 3000
• Electrical: 230V 1.7 or 3.5A
• Inlet Size: Three 1-1/4 on top
• Discharge Size: 3/8 FNPT
• Reservoir Capacity: 1 gallon
• Maximum Temperature: 150 F
• Sealed Reservoir: No
• Maximum Lift: 20 feet
• Amps: 3.5/1.7
• GPH @ 12': 240
• GPH @ 18': 60
• GPH @ 4': 390
• GPH @ 8': 300
• Shutoff: 20
• Volts: 115/230
• Plumbing pump type: Condensate Pump
• Brand: HARTELL
• Gallons per minute: 2.7 GPM
• Horsepower: 1/10 hp
• Power type: Corded Electric
• Size: 1 Gallon
• Standards: UL Listed
• Includes: Motor Thermal Protection
• Application: Condensate Removal
• Cord Length: 0.5 ft
• Height: 10 in
• Length: 9 in
• Phase: Single
• Series: A2X
• Voltage: 115-230
• Width: 6 in
• URI Part Number: A2X1965
• Vendor Part Number: 851117
• Connection Size Inlet (In.): 1 3/8
• Connection Size Outlet (In.): 3/8
• GPH at 6 ft: 185
• GPH at 20 ft: 51
• Low Ambient: 12
• Maximum Head (Ft.): 22
• Reservoir Size (Gal.): 1
• Safety Switch: Yes
• Nameplate Voltage: 115/230V AC
• Full Load Current: 1.7/3.5 A
• Frequency: 60 Hz
• Pump Housing Material: Aluminum
• Tank Material: Aluminum
• Body Gasket Material: Stainless Steel
• Float Material: Polypropylene
• Maximum Flow Rate @ 1 Foot of Head: 3.58 gpm
• Maximum Flow Rate @ 5 Feet of Head: 3.17 gpm
• Maximum Flow Rate @ 10 Feet Head: 2.72 gpm
• Maximum Flow Rate @ 15 Feet of Head: 1.87 gpm
• Maximum Flow Rate @ 20 Feet of Head: 0 gpm
• Max. Head: 20 ft
• Minimum Media Temperature: 40 F
• Max. Media Temp.: 150 F
• Tank Capacity: 1 gal
• Tank Opacity: Solid
• Number of Intakes: 4
• Intake: 3/4 in Open; 1-1/4 in Open
• Discharge: 3/8 in FNPT
• Pump Activation Type: Float Switch
• Includes Safety Switch: Safety Switch Included
• Turn On Level: 1.5 in
• Shut Off Level: 18 ft
• Electrical Connection Type: Hardwired
• For HVAC System Duct: Ducted
• UL Rating: UL 2043
• Plenum Rated: Yes
• Connectivity: Auxiliary Contacts
• Maximum Ambient Temperature: 150 F
• Includes Tubing: No Tubing Included
• Included Accessories: Safety Switch
• Overall Length: 9 in
• Overall Width: 6 in
• Overall Height: 10 in
• Installation: Floor Standing
• Priming: Manual
• Included Accessories Combined: Safety Switch Included No Tubing Included
• UNSPSC: 40151510
• GPH at 12 ft: 139
• GPH at 18 ft: 79
