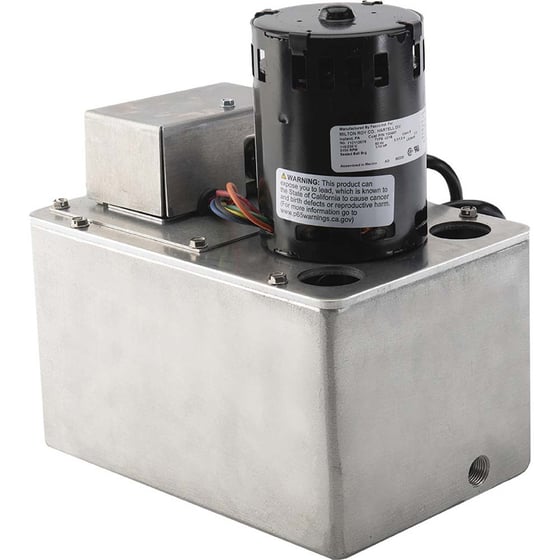

Hartell A2SA-X230 Condensate Pump 230V AC 1 gal

Product Description

The HARTELL A2SA-X230 Series Condensate Pump is designed for heavy-duty removal of high-temperature condensate. This high-capacity condensate tank pump is designed for commercial applications and provides higher flow rates than standard condensate pumps. It has an integrated 1-gallon aluminum tank that collects and holds moisture.

• Designed for heavy-duty removal of high-temperature condensate
• Features an integrated 1-gallon aluminum tank
• Equipped with a safety switch and motor thermal protection

Product Highlights

Ideal for commercial applications, this pump reduces wear and tear, increasing its lifespan.

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: A2SA-X230
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Commercial Grade Steam Condensate Pump 2
• Country of Origin (subject to change) [Specifications]: United States
• Condition: New
• Brand: HARTELL
• Full Load Amps: 2.0 Amps
• Voltage: 230V AC (50/60 Hz)
• Model: A2SA-X230
• MPN: 851125
• Discharge Size: 3/8 FNPT
• Max Flow Rate: 185 GPH
• UPC: 856472008194
• Pump Type: Condensate Removal Pump
• Compatible Media Type: Clear Water
• Power Source: Corded Electric
• Phase: Single
• Nameplate Voltage: 230V AC
• HP: 3/8 hp
• Full Load Current: 1.5 A
• Frequency: 60 Hz
• Tank Material: Aluminum
• Maximum Flow Rate @ 1 Foot of Head: 3.58 gpm
• Maximum Flow Rate @ 5 Feet of Head: 3.33 gpm
• Maximum Flow Rate @ 10 Feet Head: 2.5 gpm
• Maximum Flow Rate @ 15 Feet of Head: 79 gph
• Max. Head: 18 ft
• Minimum Media Temperature: 40 °F
• Max. Media Temp.: 212 °F
• Tank Capacity: 1 gal
• Tank Opacity: Solid
• Number of Intakes: 2
• Intake: 1-1/4 in Open
• Discharge: 3/8 in FNPT
• Pump Activation Type: Float Switch
• Includes Safety Switch: Safety Switch Included
• Turn On Level: 1.5 in
• Shut Off Level: 18 ft
• Electrical Connection Type: Plug-In
• Cord Length: 4 ft
• For HVAC System Duct: Ducted
• Plenum Rated: No
• Connectivity: Auxiliary Contacts
• Includes Tubing: No Tubing Included
• Includes: Motor Thermal Protection
• Included Accessories: Safety Switch
• Application: Condensate Removal
• Installation: Floor Standing
• Priming: Manual
• Manufacturer Warranty Length: 1 yr
• Included Accessories Combined: Safety Switch Included No Tubing Included
• Country of Origin: USA (subject to change)
