Hartell 861018 Har-15 15 kW (Each) 117979938

Product Description

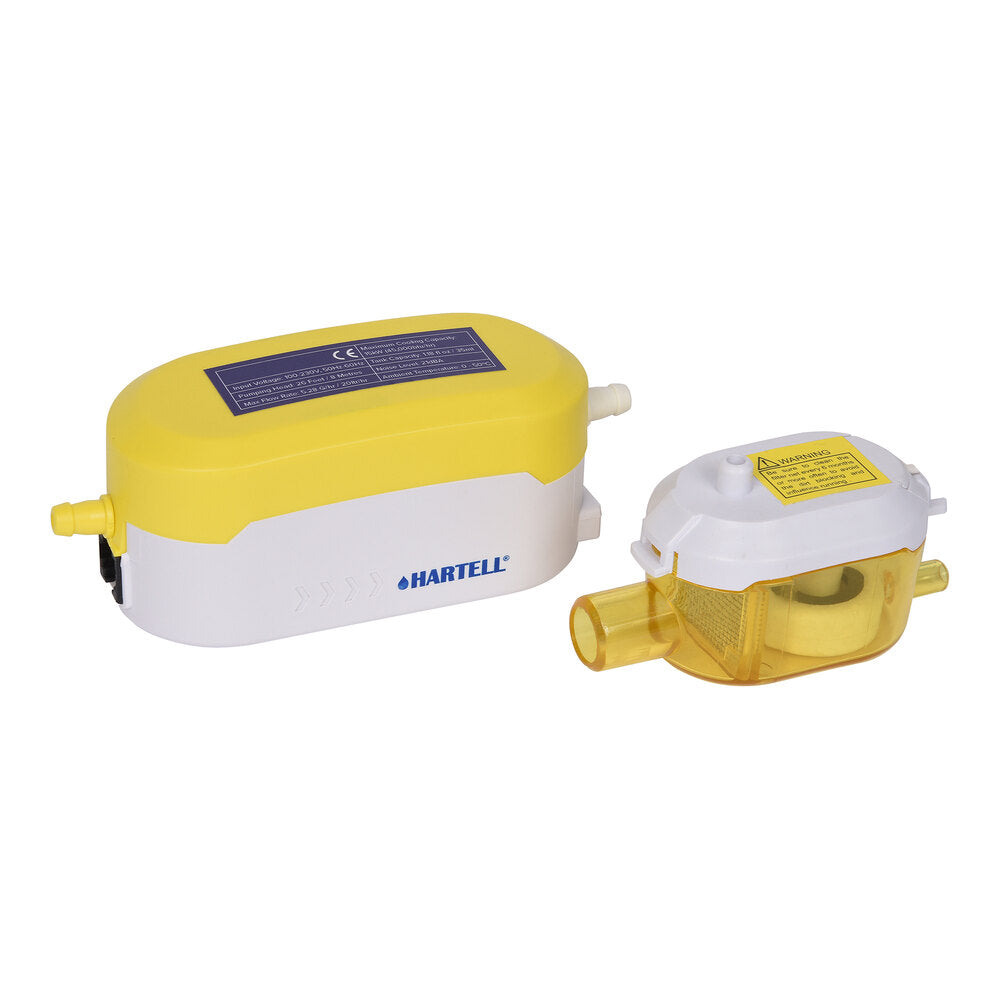

Hartell 861018 is a Har-15 mini-split condensate pump designed for air-conditioning equipment up to 15 kW (45,000 BTU). The unit operates on 100-230 VAC, 50-60 Hz and delivers up to 5.28 GPH at a 26 ft pumping head while running at approximately 19 dBA. It includes motor overload protection, removable filters, high-level alarm volt-free contacts, and an indoor remote float sensor for applications where gravity drainage is not available.

• Suitable for mini-split AC systems up to 15 kW (45,000 BTU); max flow 5.28 GPH and max head 26 ft
• Universal input 100-230 VAC, 50-60 Hz with motor overload protection and removable filters
• Ultra-quiet operation (~19 dBA) with high-level alarm volt-free contacts and remote float sensor

Product Highlights

Compact remote-sensor condensate pump for mini-split HVAC with 5.28 GPH capacity and 26 ft head

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: 861018
• Country of Origin: China

Technical Specifications

• Brand: HARTELL
• Manufacturer Part Number: 861018
• Model: Har-15
• Alternate Part Number: 117979938
• Input Voltage: 100-230 VAC
• Frequency: 50-60 Hz
• Power Consumption: 3 Watts
• Maximum Flow Rate: 5.28 GPH (0.08 GPM)
• Maximum Head: 26 ft
• Suitable Equipment Capacity: Up to 15 kW (45,000 BTU)
• Noise Level: 19 dBA
• Motor Type: Ultra-quiet diaphragm pump motor
• Alarm: High level alarm volt-free contacts
• Protection: Motor overload protection; thermal overload protection
• Filters: Removable filters
• Weight: 1.25 lbs
• Dimensions (L x W x H): 6.88 in x 10.43 in x 2.52 in
• Mounting Type: Hardwired installation
• Temperature Rating: Maximum ambient 122 Degrees F
• Discharge Size: 1/4 inch
• Float Sensor Connections: 5/8 inch inlet, 1/4 inch outlet
