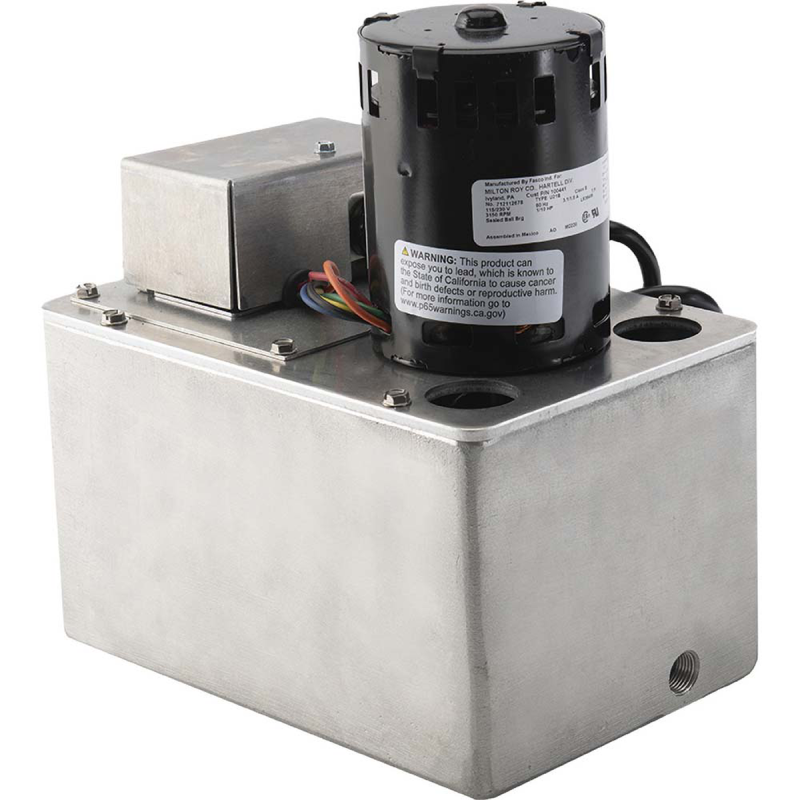

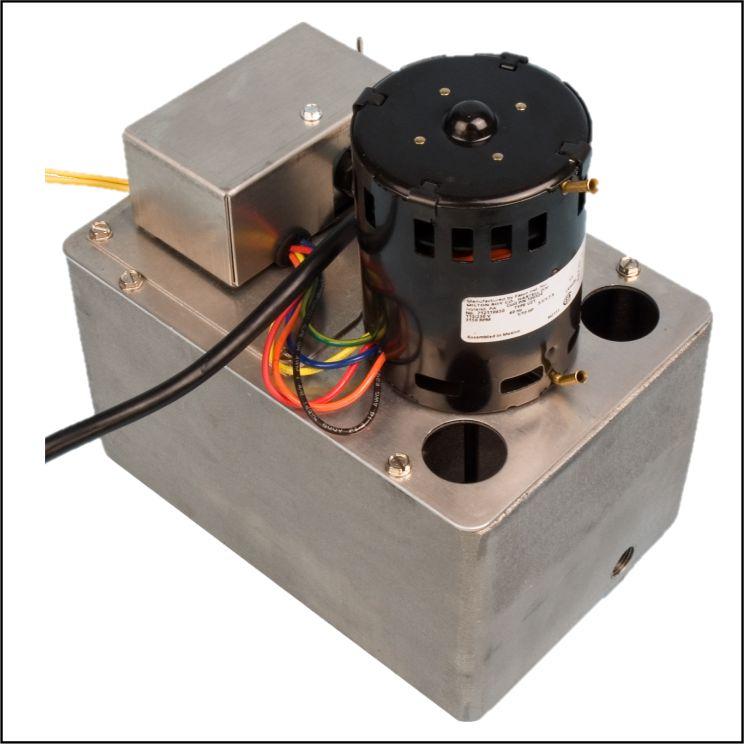

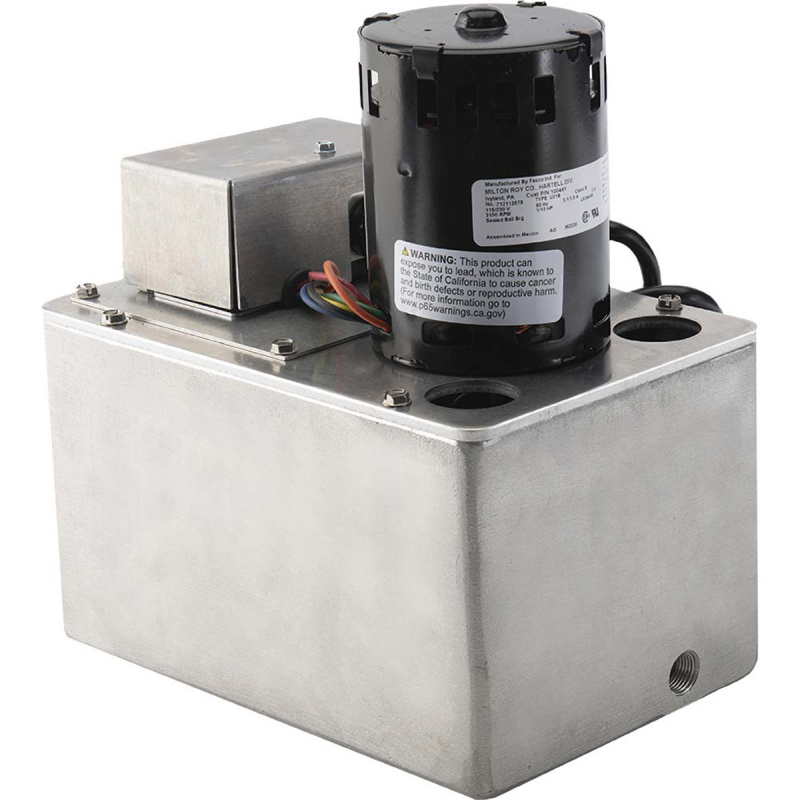

Hartell 851126 A2SA-X115 With Alt Inlet 115V (1 gal) 10584636

Product Description

Hartell 851126 A2SA-X115 is a commercial-grade steam condensate pump that operates at 115V and includes an alternate inlet and an auxiliary switch rated to 212°F. The unit features a 1 gallon cast aluminum reservoir, die cast aluminum construction, and a high-lift capability with up to 22 ft of head for high-temperature condensate removal in commercial and industrial steam systems. Dimensions are 9 x 6 x 10 in and weight is 12 lbs.

• 115V operation with auxiliary switch rated to 212°F for steam condensate applications
• 1 gallon cast aluminum reservoir and die cast aluminum construction with alternate inlet
• High-lift capacity up to 22 ft head for commercial and industrial condensate removal

Product Highlights

Commercial 115V condensate pump, A2SA-X115 (MPN 851126), 1 gal cast aluminum reservoir, auxiliary switch 212°F, up to 22 ft head

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: 851126
• Country of Origin: USA

Technical Specifications

• Brand: Hartell
• MPN: 851126
• Model: A2SA-X115
• Product Type: Condensate pump
• Input Voltage: 115 V
• Current: 3.5 A
• Horsepower: 1/10 HP
• Reservoir Capacity: 1 gallon
• Reservoir Material: Cast aluminum
• Pump Material: Die cast aluminum
• Auxiliary Switch: Yes
• Auxiliary Switch Rating: 212 °F
• Maximum Head: 22 ft
• Max Suction Lift: 19.5 ft
• Dimensions (L x W x H): 9 in x 6 in x 10 in
• Weight: 12 lbs
• Intended Use: Commercial/industrial steam condensate removal
• Series: A2SA-X115 Series
• Part Number (cross reference): 10584636
• MFR Catalog No: 20895
• Country of Origin: USA
