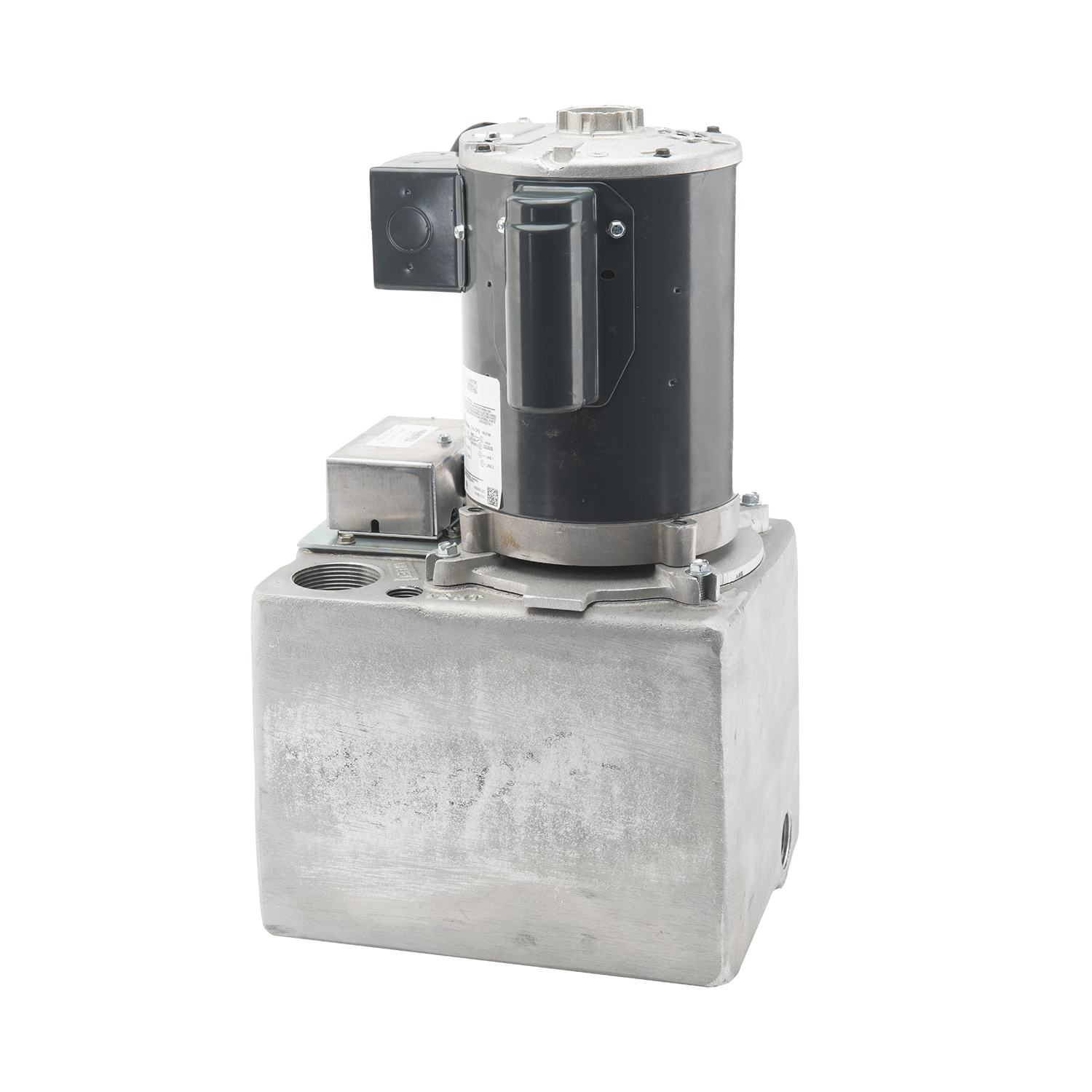

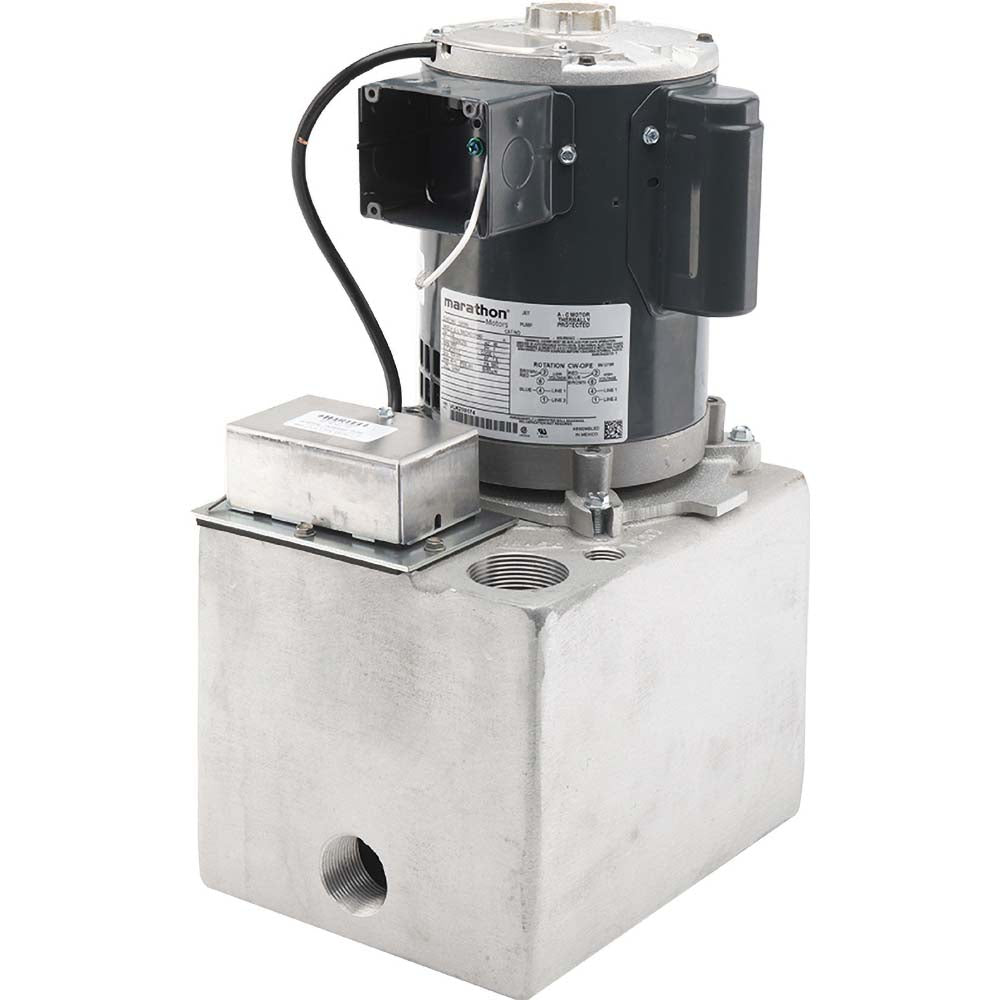

Hartell 851122 L4X-115/230 Condensate Pump 115/230V (2 Gal/Alternate Inlet)

Product Description

HARTELL 851122 is the L4X-115/230 condensate pump configured for 115/230V operation with an alternate inlet for commercial HVAC condensate removal. The unit features a 2-gallon cast aluminum reservoir, auxiliary switch, and a unitized, heavy-duty construction for under-sink or industrial installation. It provides approximately 72.0 gallons per hour flow and usable lifts over 40 feet for high-volume condensate handling.

• Dual-voltage configuration 115/230V with auxiliary switch and plenum-rated pump design
• 2 gallon cast aluminum reservoir and 1 gallon die cast aluminum tank with alternate inlet
• Approx. 72.0 gal/h flow, usable lift over 40 ft, 1" FNPT outlet and 3/4" FNPT inlet

Product Highlights

High-volume L4X series condensate pump, 115/230V operation, 2 gal reservoir, alternate inlet and auxiliary switch for commercial HVAC condensate removal.

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: 851122
• Country of Origin: US

Technical Specifications

• Brand: HARTELL
• Manufacturer Part Number: 851122
• Model: L4X-115/230
• Series: L4 Series
• Voltage: 115/230V AC
• Amps: 3.7/7.46 A
• Flow Rate: 72.0 gal/h
• Reservoir Capacity: 2 gal
• Tank Capacity: 1 gal
• Reservoir Material: Cast aluminum
• Tank Material: Die cast aluminum
• Auxiliary Switch: Yes
• Inlet Size: 3/4" FNPT
• Outlet Size: 1" FNPT
• Usable Lift: Over 40 ft
• Max Suction Lift: 45 ft
• Pump Type: Plenum rated condensate pump
• Speed (RPM): 3450 RPM
• Dimensions (L x W x H): 10 in x 8 in x 17 in
• Weight: 35 lbs
• Installation Notes: Fits under utility sinks; allows sink installation without breaking concrete to drain
• Country of Origin: USA
