Hartell 851117 A2X-1965 1/10 Hp (1 Gal Tank) KESCO 1965

Product Description

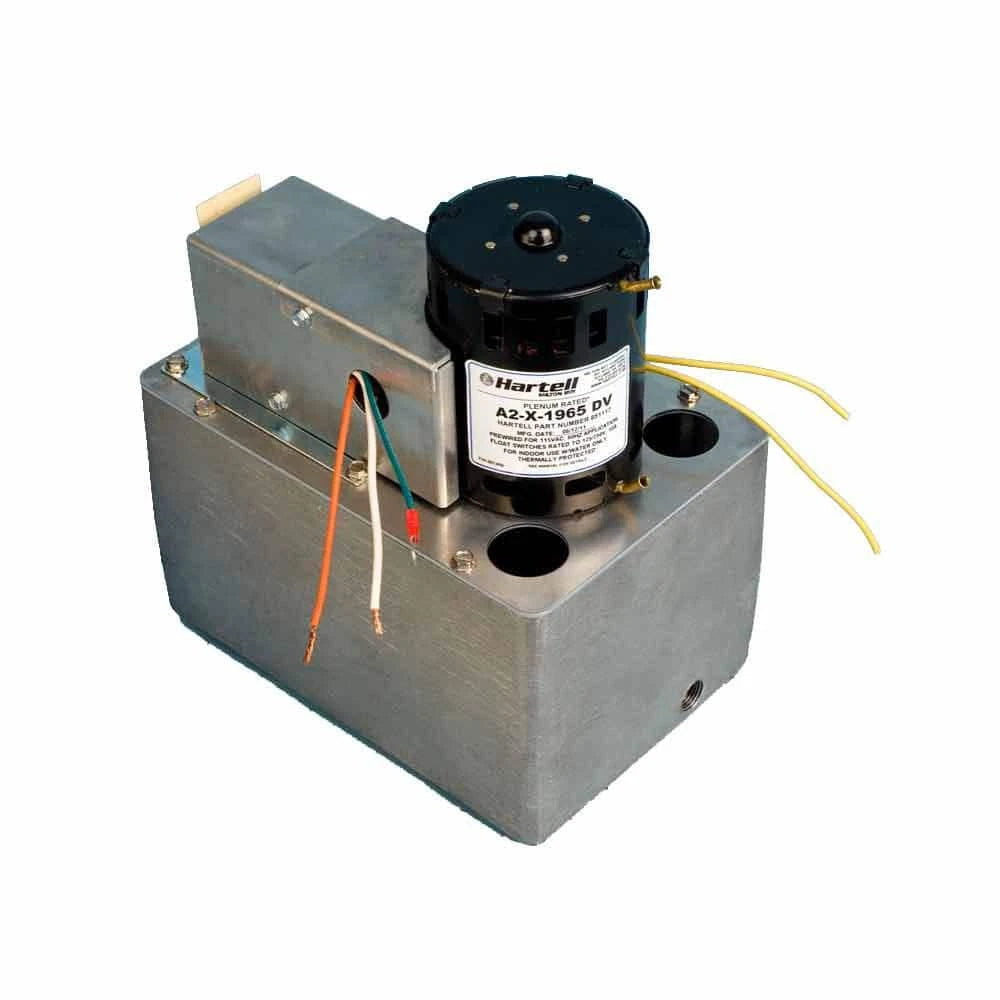

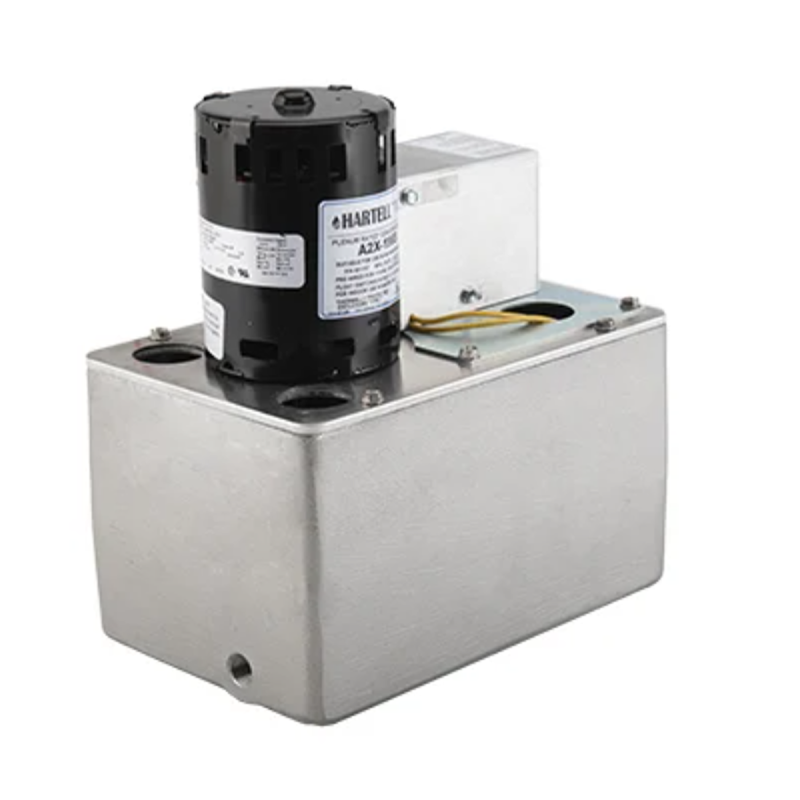

The Hartell 851117 (A2X-1965) is a commercial-grade plenum-rated condensate pump designed for HVAC and refrigeration condensate removal. It operates on dual-voltage 115/230V AC with a 1/10 horsepower thermally protected motor and stainless steel shaft, and features a 1 gallon cast-aluminum reservoir. The pump provides up to 185 gal/h flow and a 20 ft maximum pumping head, and includes an auxiliary switch and UL 2043 plenum rating.

• Dual-voltage 115/230V AC operation with thermally protected 1/10 Hp motor and stainless steel shaft
• 1 gallon cast-aluminum condensate tank; approximately 185 gal/h flow rate and 20 ft maximum head
• UL 2043 plenum rated for air-handling spaces and includes an auxiliary switch

Product Highlights

Commercial plenum-rated condensate pump; dual-voltage 115/230V; 1/10 Hp; 1 gal tank; 20 ft max head

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: 851117
• Country of Origin: USA

Technical Specifications

• Brand: Hartell
• MPN: 851117
• Model: A2X-1965
• Product Type: Condensate pump
• Plenum Rating: UL 2043
• Input Voltage: 115/230V AC (dual voltage)
• Motor Power: 1/10 Hp
• Flow Rate: 185 gal/h
• Tank Capacity: 1 gallon
• Maximum Head: 20 ft
• Auxiliary Switch: Included
• Reservoir Material: Heavy duty cast aluminum
• Motor Protection: Thermally protected
• Motor Shaft Material: Stainless steel
• Dimensions: Length 9 in x Width 6 in x Height 10 in
• Weight: 14 lbs
• Country of Origin: USA
• Replaces: KESCO 1965
