Hartell 806030 A3X-277 Condensate Pump 1/2 hp (1 Gal Tank) 48PX17

Product Description

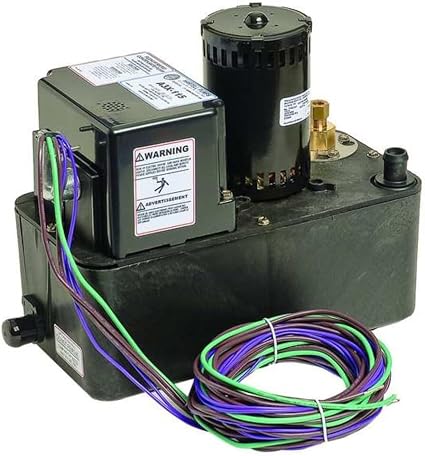

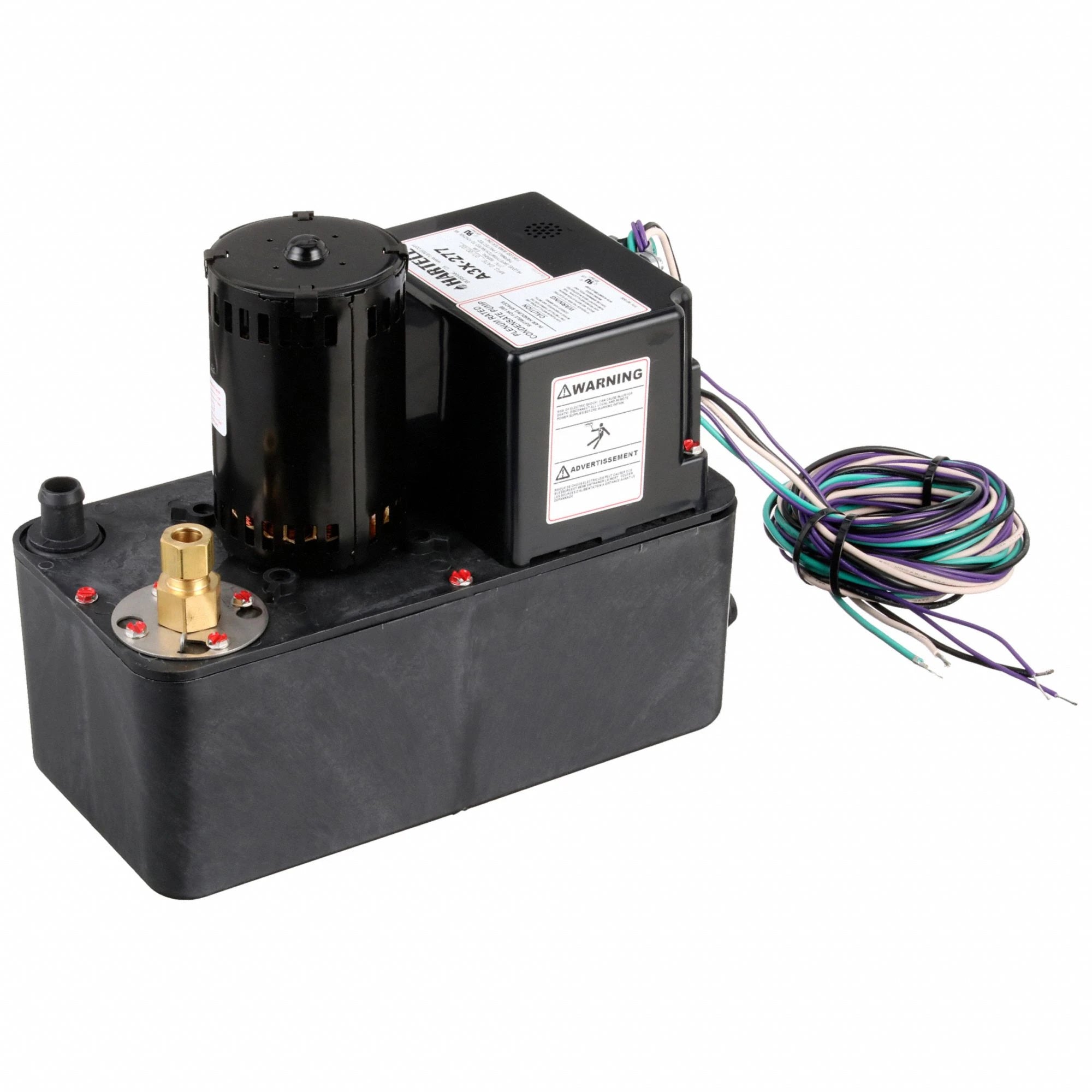

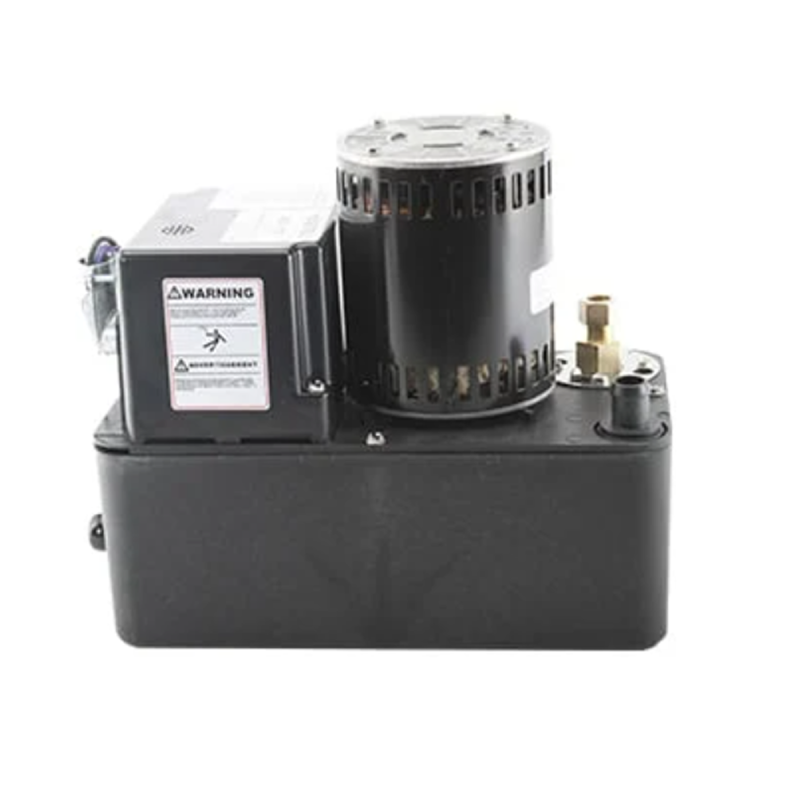

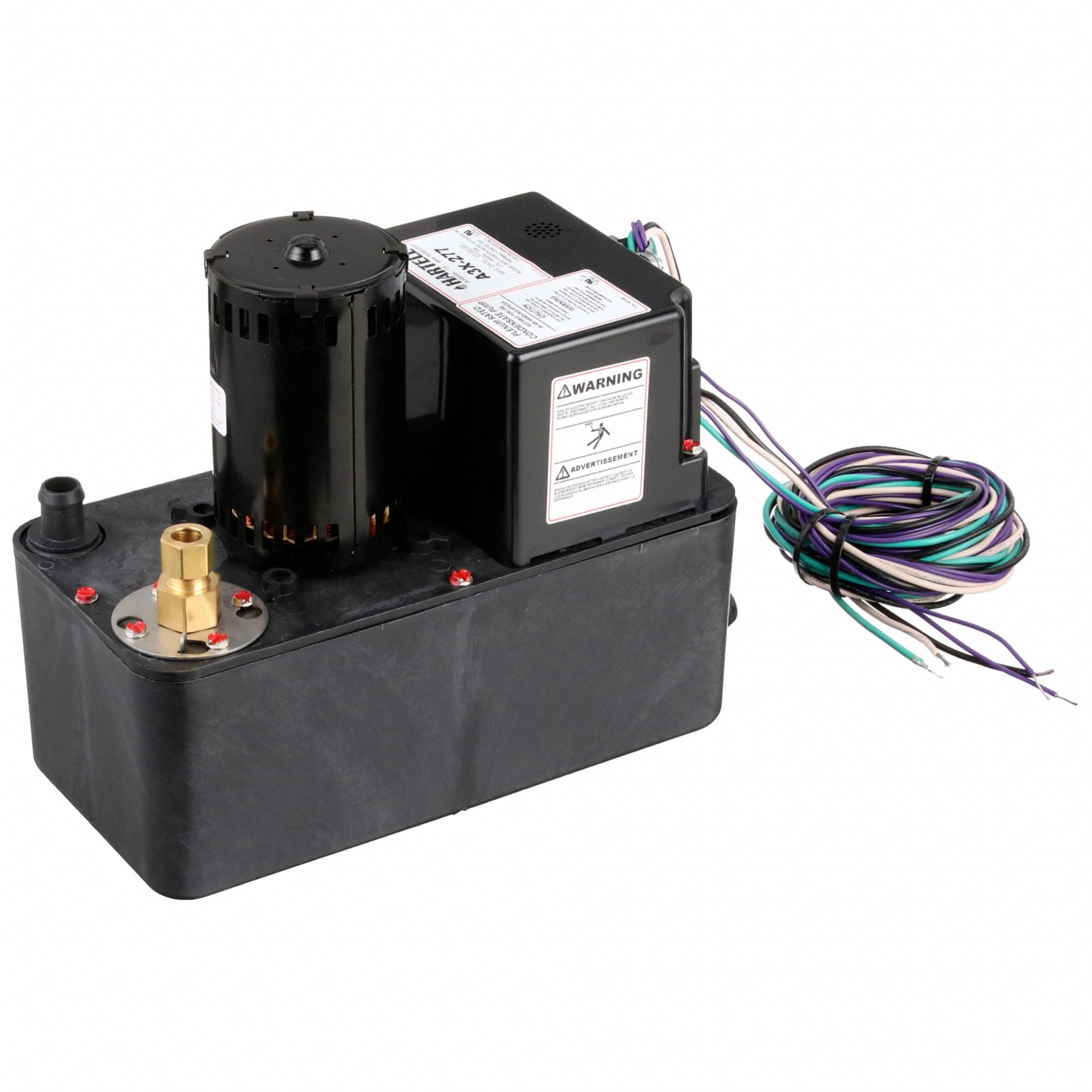

Hartell 806030 is a condensate pump (model A3X-277) for HVAC condensate removal in 277 V systems. The unit uses a 1/2 hp motor with thermal protection, delivers up to 351 gal/h (approximately 6.43 gpm at 1 ft head) and a maximum head of 30 ft. It features a 1-gallon reservoir, auxiliary safety/overflow switch, plenum-rated construction, stainless steel shaft, and maximum fluid temperature rating of 212 degrees F.

• 277 V AC operation with 1/2 hp motor and motor thermal protection; maximum head 30 ft and flow up to 351 gal/h
• 1-gallon reversible reservoir, plenum-rated construction, stainless steel shaft, and maximum media temperature 212 degrees F
• Includes auxiliary safety/overflow switch, built-in check valve, barbed intake/discharge and quick-disconnect check valve assembly

Product Highlights

277 V plenum-rated condensate pump, 1/2 hp motor, 1 gal reservoir, 351 gal/h flow, 30 ft max head, auxiliary switch

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: 806030
• Country of Origin: United States

Technical Specifications

• Brand: Hartell
• MPN: 806030
• Model: A3X-277
• Input Voltage: 277 V AC
• Power Source: Corded Electric
• Horsepower: 1/2 hp
• Flow Rate: 351 gal/h (6.43 gpm @1 ft; 5.4 gpm @10 ft; 4.67 gpm @15 ft; 3.83 gpm @20 ft)
• Maximum Head: 30 ft
• Reservoir Capacity: 1 gallon
• Maximum Media Temperature: 212 degrees F
• Pump Type: Plenum rated / Standard
• Plenum Rated: Yes
• Auxiliary Switch: Included
• Check Valve: Built-in check valve; quick-disconnect check valve assembly
• Discharge Connection: Barbed (quick-disconnect check valve assembly listed)
• Intake Connection: Barbed
• Motor Protection: Motor thermal protection
• Shaft Material: Stainless steel
• Application: Above-ground HVAC condensate removal
• Certifications: UL 2043; NFPA
