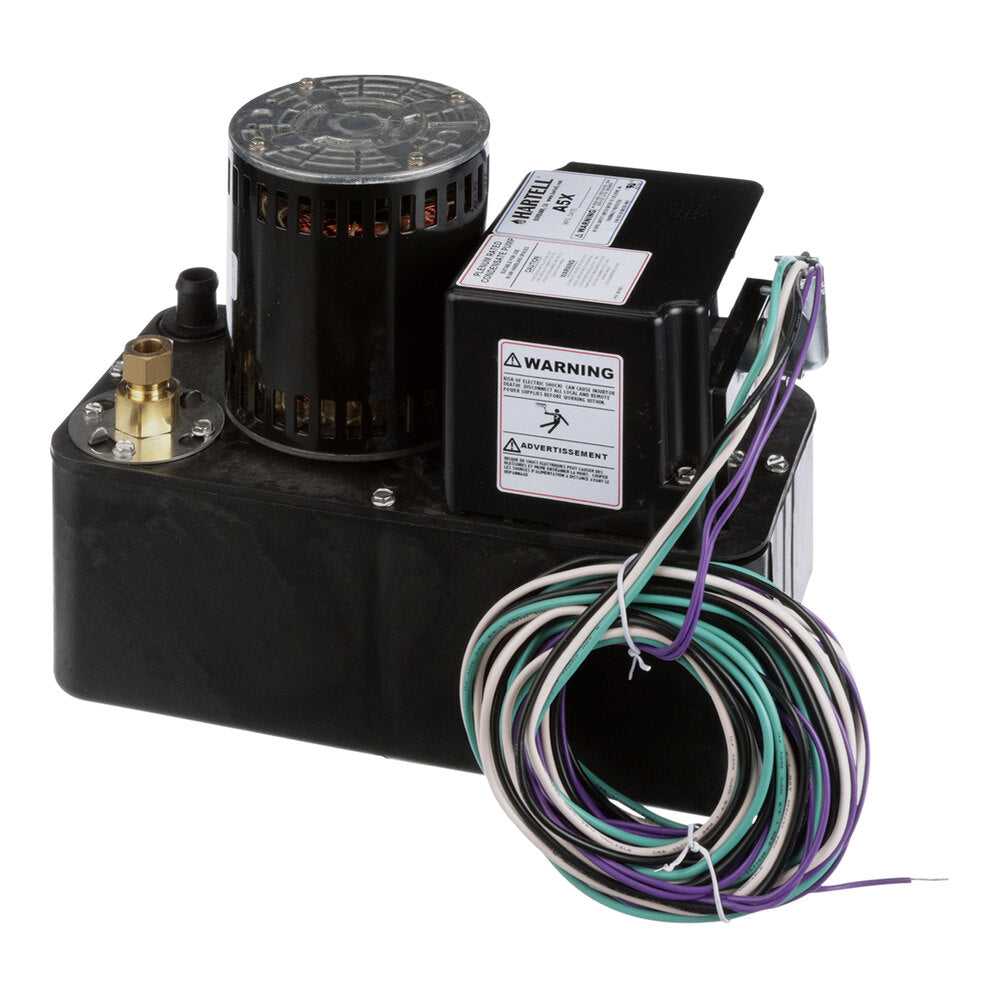

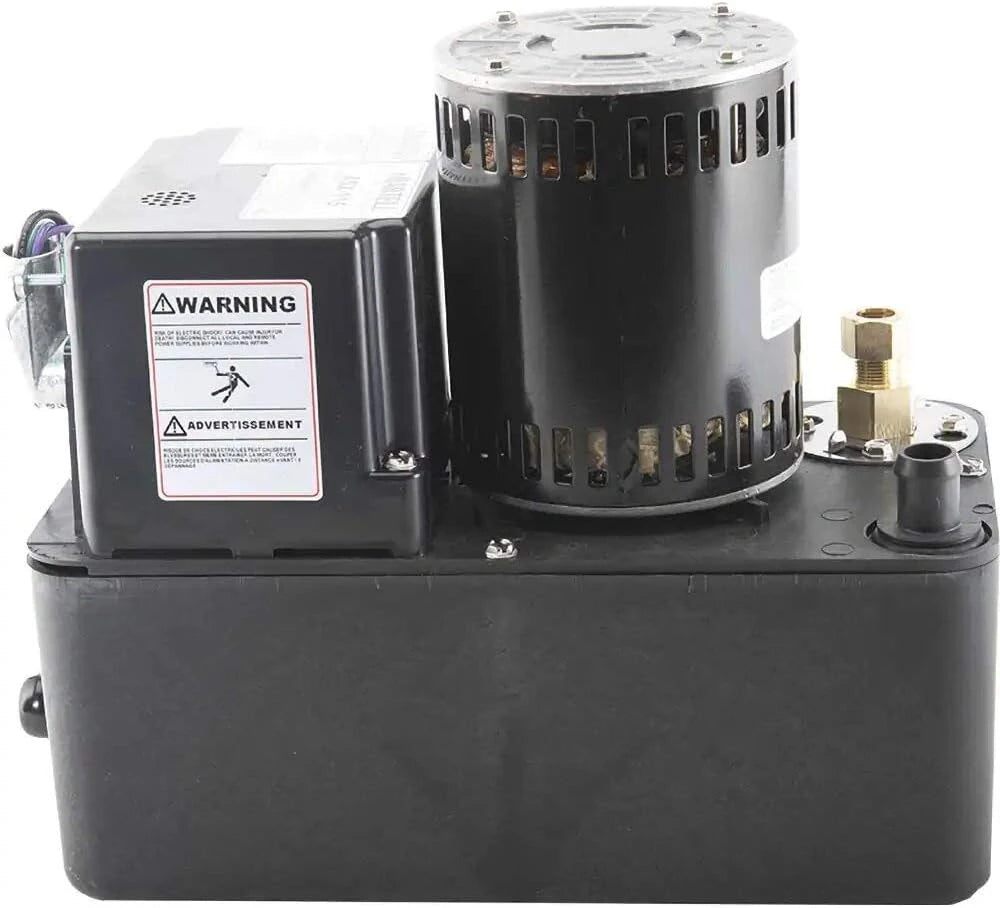

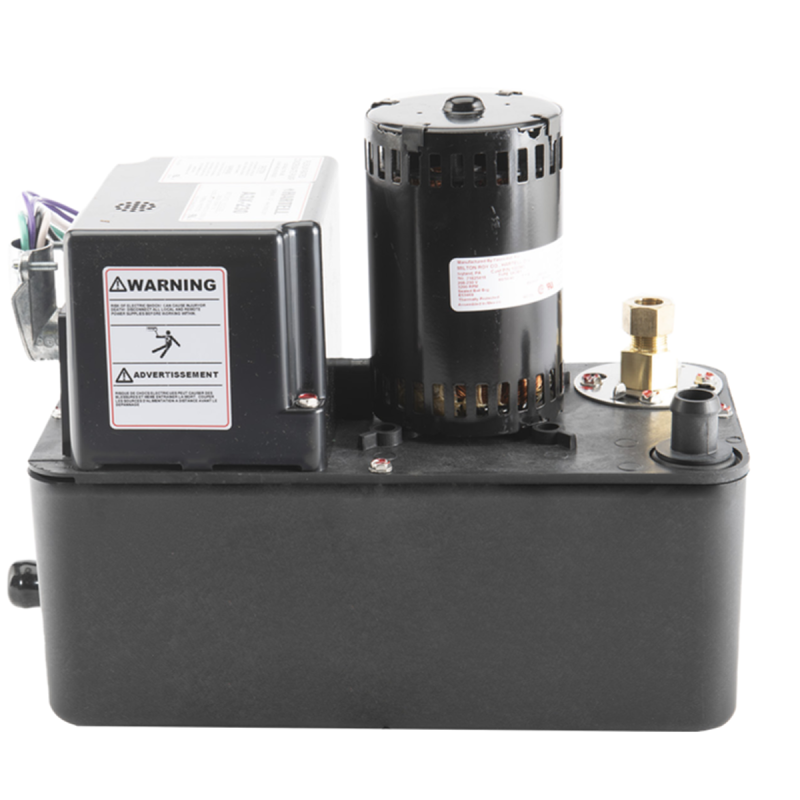

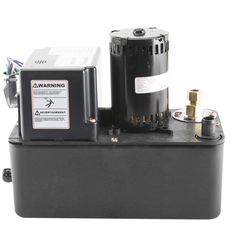

Hartell 806025 A5X-115 115V (1 Gallon) 48PX18

Product Description

Hartell 806025 is a commercial-grade A5X-115 condensate pump rated for 115 V AC operation with a 1-gallon reservoir and high-temperature capability up to 212 degrees F. The unit provides up to 60 feet of lift and approximately 550 gallons per hour flow, and includes a built-in check valve and auxiliary switch. It is intended for HVAC and refrigeration condensate removal and for plenum or steam condensate service.

• 115 V AC operation with auxiliary switch and built-in check valve
• 1-gallon reversible reservoir; compact footprint (6 in W x 10.5 in H x 12 in D)
• High-temperature rating to 212 degrees F with up to 60 ft maximum lift and ~550 gal/h flow

Product Highlights

Commercial-grade 115 V condensate pump with 1-gallon tank, up to 212 degrees F, 60-foot lift, built-in check valve and auxiliary switch

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: 806025
• Country of Origin: USA

Technical Specifications

• Brand: HARTELL
• Manufacturer Part Number (MPN): 806025
• Model: A5X-115
• Product Type: Condensate Pump
• Input Voltage: 115 V AC
• Power Source: AC
• Flow Rate: 550 gallons per hour
• Reservoir Capacity: 1 gallon
• Maximum Temperature: 212 degrees F
• Maximum Lift: 60 foot
• Built-in Check Valve: Yes
• Auxiliary Switch: Included
• Inlet Size: 3/4 inch barbed inlet
• Discharge Size: 3/8 inch copper tubing discharge
• Reservoir Type: Reversible heavy-duty reservoir
• Rated For: Steam condensate and plenum spaces
• Dimensions: 6 in W x 10.5 in H x 12 in D
• Weight: 11 lbs
• Frequency: 60 Hz
• Country of Origin: USA
• Cross Reference / Replacement MPN: 48PX18
