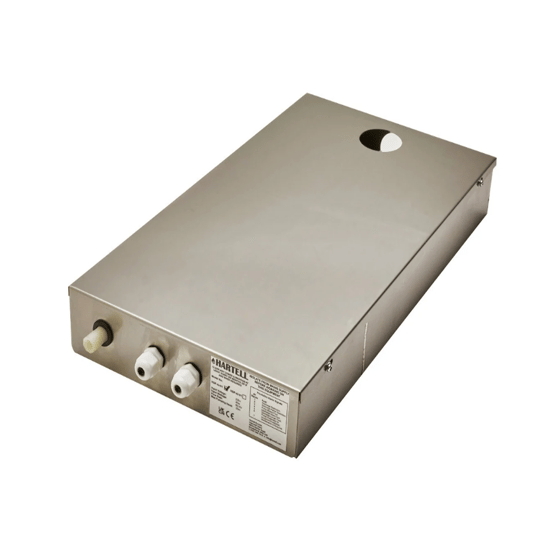

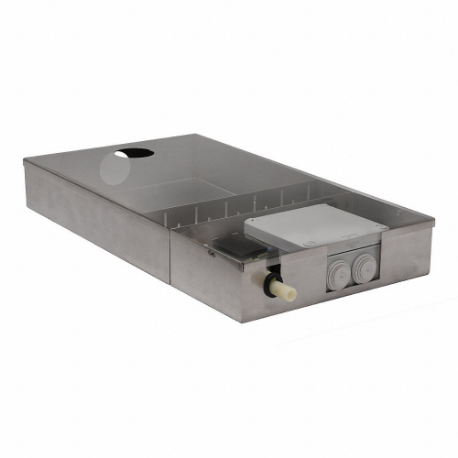

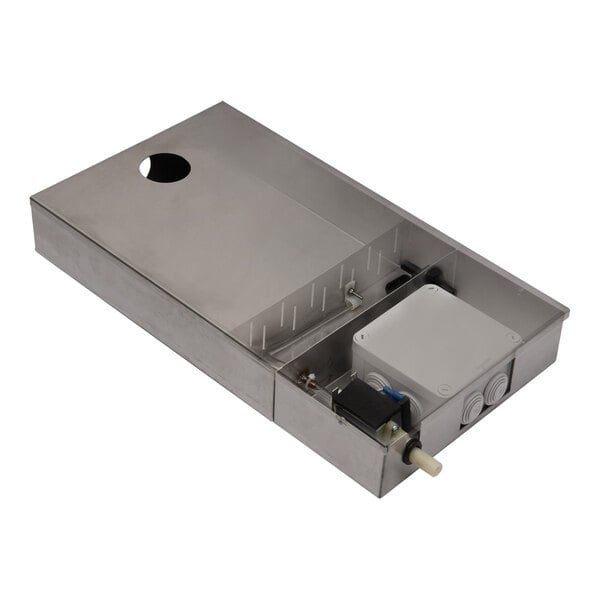

Hartell 805010 HDP-AI-H1-115-60 Low Profile Retail Refrigeration Pump 115 Volts

Product Description

The Hartell 805010 self-monitoring condensate pump utilizes Proactive AI technology, predictive analytics, diagnostics, and a proactive alarm system. It helps prevent water damage or shutdown of refrigerated display cases. The AI technology provides instant visual and audible alarm notifications, as well as instant vault diagnosis.

• 115 ft pumping head
• 21 gal/hr flow rate
• 1 gal reservoir capacity
• Intelligent AI pro-active alarm system

Product Highlights

This condensate pump is self-calibrating and the maintenance monitor ensures the condensate pump is regularly maintained.

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: 805010
• Country of Origin: America

Technical Specifications

• Hertz: 60 Hz
• Voltage: 115 Volts
• Capacity: 1 Gallon
• Flow Rate: 0.35 GPM
• Power Type: Electric
• Type: Condensate Pumps
• Phase: 1 Phase
• Compatible Discharge Pipe Size: 1/2"
• Compatible Intake Pipe Size: 1 1/2"
• Compatible Media Type: Water
• Discharge Connection Style: 1/2"
• Electrical Connection Type: Hardwired Via Screw Terminals
• Float Material: Plastic
• For Media Type: Water
• For Use With Potable Systems: No
• Gasket Material: Neoprene
• Height: 2 1/2"
• Housing Material: Stainless Steel
• Hp: 13/1000 hp
• Includes: Not Applicable
• Inlet Type: Open
• Intake Connection Style: Open
• Length: 18"
• Max. Ambient Temp.: 122°F
• Max. Feet Of Head: 95 ft.
• Max. Flow Rate @ 10 Ft.: 9 GPH
• Max. Flow Rate @ 15 Feet Of Head: 8.5 GPH
• Max. Flow Rate @ 15 Ft.: 8.5 GPH
• Max. Flow Rate @ 20 Feet Of Head: 8 GPH
• Max. Flow Rate @ 20 Ft.: 8 GPH
• Max. Flow Rate @ 25 Ft.: 7.5 GPH
• Max. Flow Rate @ 30 Ft.: 7 GPH
• Max. Flow Rate @ 40 Ft.: 6.5 GPH
• Max. Flow Rate @ 5 Ft.: 9.5 GPH
• Max. Flow Rate @ 5 Ft. Of Head: 9.5 GPH
• Max. Flow Rate @ 50 Ft.: 6 GPH
• Max. Head: 95 ft.
• Max. Operating Pressure: 42.7 psi
• Max. Pressure: 42.7 psi
• Max. Temp.: 122°F
• Maximum Feet Of Head: 105 ft.
• Maximum Flow Rate @ 1 Feet Of Head: 20 GPH
• Maximum Flow Rate @ 10 Feet Of Head: 9 GPH
• Maximum Flow Rate @ 25 Feet Of Head: 7.5 GPH
• Maximum Flow Rate @ 30 Feet Of Head: 7 GPH
• Maximum Flow Rate @ 40 Feet Of Head: 6.5 GPH
• Maximum Flow Rate @ 50 Feet Of Head: 6 GPH
• Maximum Media Temperature: 122°F
• Media Type: Water
• Min. Ambient Temp.: 150°F
• Min. Temp.: 45°F
• Minimum Media Temperature: 45°F
• Number Of Intakes: 1
• Outlet Size: 1/2"
• Overall Height: 2 1/2"
• Overall Length: 18"
• Overall Width: 10"
• Priming: Self Priming
• Pump Activation Type: Float Switch
• Pump Housing Material: Stainless Steel
• Pump Type: Low Profile
• Self Priming: Yes
• Series: HDP-AI-H1 Series
• Series Family: HDP
• Shut Off Level: 95 ft.
• Tank Capacity: 1 gal.
• Tank Material: Stainless Steel
• Turn On Level: 1 3/4"
• Wetted Material: Plastic, Stainless Steel
• Wetted Materials: Plastic, Stainless Steel
• Width: 10"
• Frequency: 60 Hz
• Input Voltage: 115V AC
