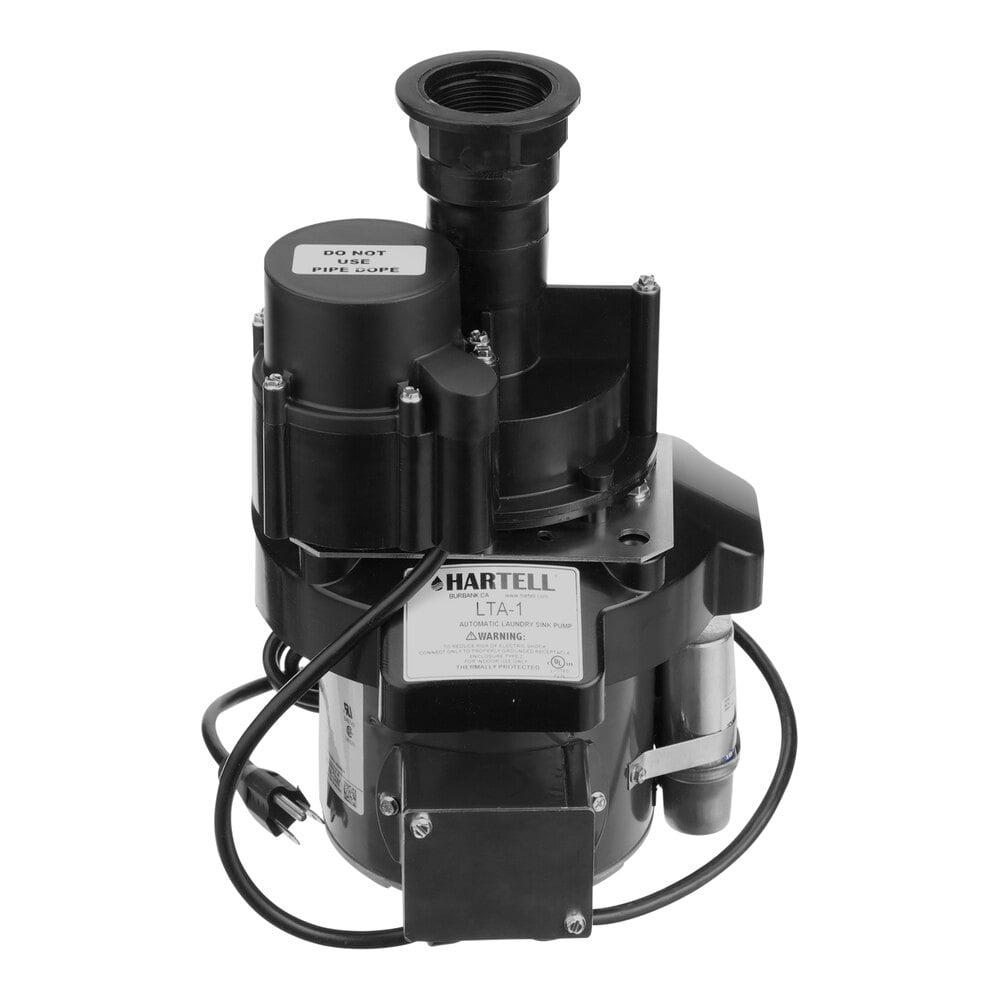

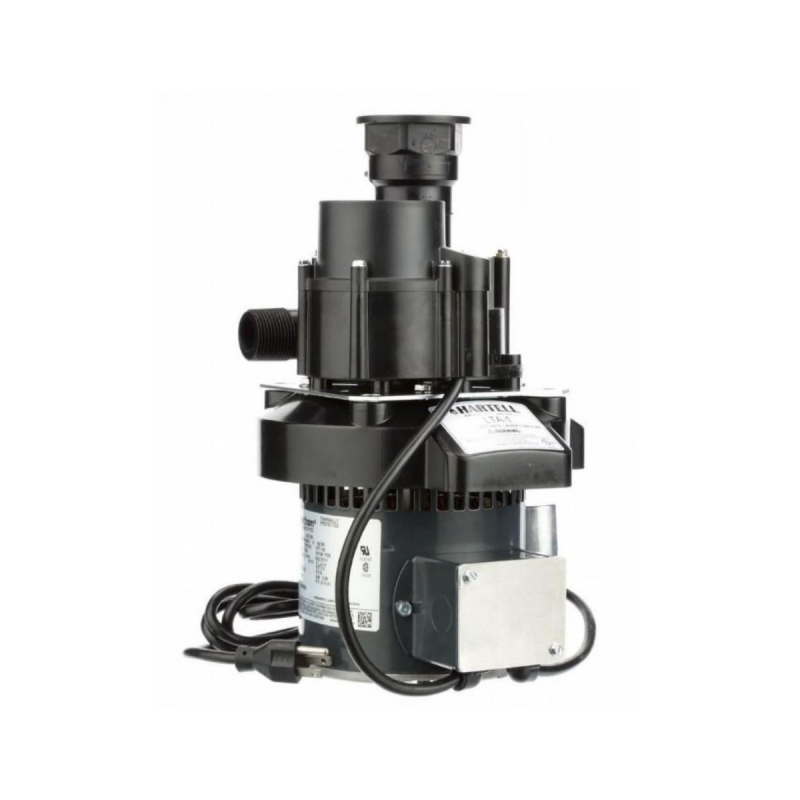

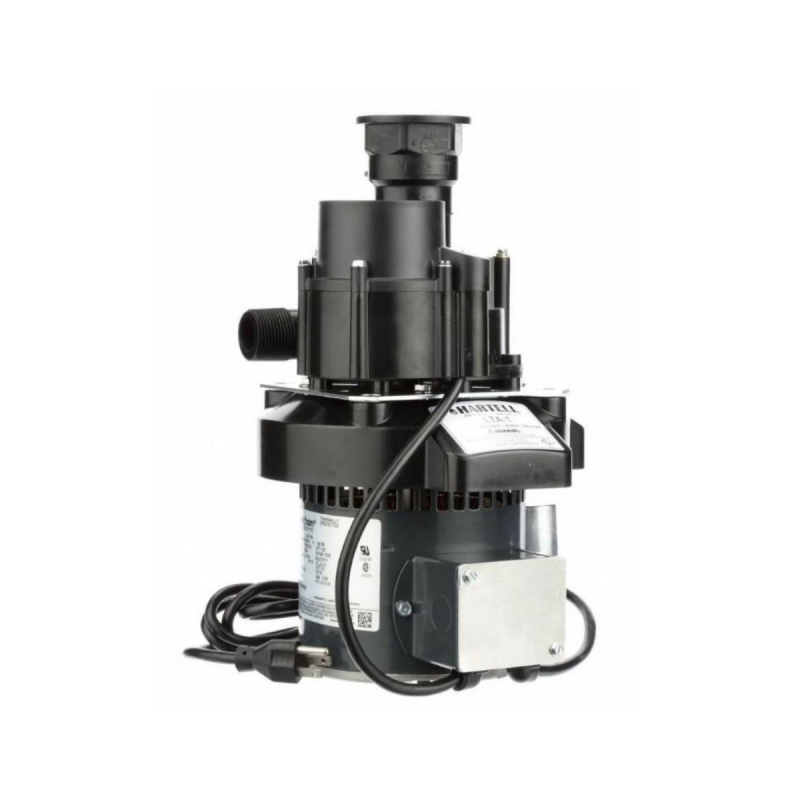

Hartell 802210 LTA-1 Sink Drain Pump 115V (1/2 hp 27.5 GPM 14 ft)

Product Description

Hartell 802210 is an LTA-1 direct-mount automatic sink drain pump that connects to laundry trays and sink tailpieces to pump wastewater. The unit operates at 115V with a pressure-activated switch, ABS housing and stainless steel shaft, delivering up to 27.5 GPM with a 14 ft maximum head. It mounts directly to the tailpiece and is intended for wet bars, kitchenettes, vanities and utility sinks.

• Direct-mount design attaches to sink tailpiece; no trap or inlet piping required
• Pressure-activated switch for automatic on/off operation; includes 8 ft cord and plug
• ABS plastic housing with stainless steel shaft; 1" discharge and included 1" PVC fittings

Product Highlights

115V direct-mount sink drain pump, 27.5 GPM flow, 14 ft max head, ABS housing, stainless steel shaft

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: 802210
• Country of Origin: USA

Technical Specifications

• Brand: Hartell
• Manufacturer Part Number: 802210
• Model: LTA-1
• Type: Direct-mount automatic sink drain pump
• Input Voltage: 115 V
• Frequency: 60 Hz
• Amps: 3.1 A
• Wattage: 356 W
• Horsepower: 1/2 hp
• Flow Rate: 27.5 GPM
• Maximum Head: 14 ft
• Maximum Suction Lift: 10 ft
• Discharge Size: 1 inch
• Housing Material: ABS plastic
• Shaft Material: Stainless steel
• Mounting Type: Direct mount to sink tailpiece
• Included Accessories: 1" PVC female adapter, 1" PVC ball valve, 1" PVC check valve
• Power Cord: 8 ft with NEMA 5-15P plug
• Plug Type: NEMA 5-15P
• Temperature Rating: 140 Degrees F
• Weight: 19 lbs
• Dimensions: Height 14 in x Length 8 in x Width 7 in
• Applications: Wet bars, kitchenettes, laundry trays, vanities, utility sinks
• Auxiliary Switch: No
• Certifications: UL certified
• Country of Origin: USA
• Notes: Not compatible with pumps made pre-2005
• Product Type: Drain pump
