Hartell 801053 KL-1DG-277 277V (10 in x 5.5 in x 4.75 in) 117979957

Product Description

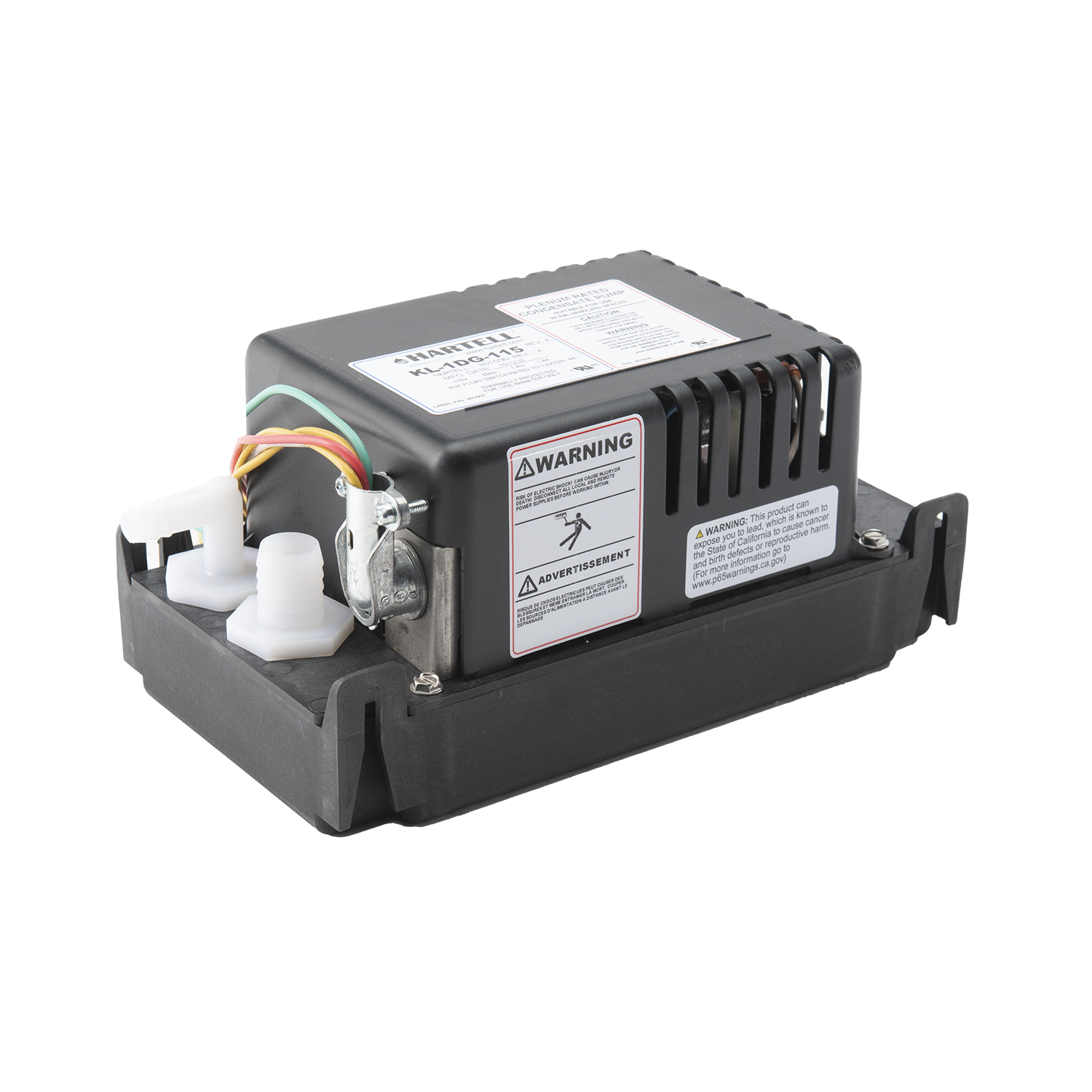

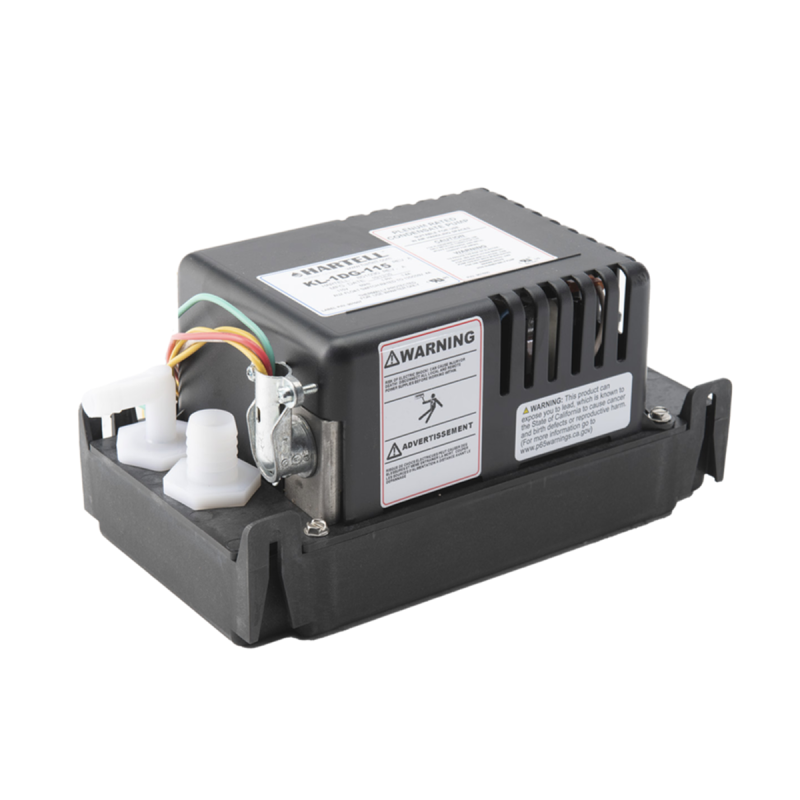

The Hartell 801053 (model KL-1DG-277) is a low-profile condensate pump rated for 277 VAC designed for commercial HVAC and plenum space condensate removal. The unit features a 0.25 gallon reservoir, a 1/30 hp (73 W) motor with 0.53 A draw, float-switch activation and an auxiliary safety switch, and is plenum rated/UL 2043 tested with a maximum lift of 18 ft and maximum media temperature of 212°F.

• 277 VAC operation, 1/30 hp (73 W) motor, 0.53 A input
• 0.25 gal reservoir, low-profile design (overall dimensions 10 x 5.5 x 4.75 in) and float-switch activation
• Plenum rated and UL 2043 tested; includes auxiliary safety switch, thermal overload protector, stainless steel shaft and gaskets

Product Highlights

Low-profile plenum-rated condensate pump KL-1DG-277, 277 VAC, 0.25 gal tank, 18 ft max lift, auxiliary switch included

Product Information

Standard Information

• Brand: HARTELL
• Manufacturer Part Number: 801053
• Country of Origin: USA

Technical Specifications

• Brand: HARTELL
• MPN: 801053
• Model: KL-1DG-277
• Replacement Part Number: 117979957
• Product Type: Condensate pump
• Series: PlenumPlus Low Profile
• Input Voltage: 277 VAC
• Input Current: 0.53 A
• Power: 1/30 hp (73 W)
• Reservoir Capacity: 0.25 gal (1 qt)
• Pump Activation Type: Float switch
• Auxiliary Switch: Included
• Thermal Overload Protector: Included
• Plenum Rated: Yes
• UL Rating: UL 2043 tested
• Maximum Lift: 18 ft
• Maximum Media Temperature: 212°F
• Maximum Operating Pressure: 7.8 psi
• Flow Rate @ 1 ft: 1.1 GPM
• Flow Rate @ 5 ft: 1.0 GPM
• Flow Rate @ 10 ft: 0.7 GPM
• Flow Rate @ 15 ft: 0.4 GPM
• Compatible Media: Water (not for potable systems)
• Inlet Sizes: 1 in, 1 3/4 in
• Outlet Size: 3/8 in
• Inlet/Outlet Connection Style: Barbed
• Compatible Discharge Pipe Size: 3/8 in
• Shaft Material: Stainless steel
• Gasket Material: Stainless steel
• Electrical Connection Type: Wire lead
• Dimensions (L x W x H): 10 in x 5.5 in x 4.75 in
• Weight: 6 lbs
• Compatible Applications: Heating and cooling, HVAC plenum and air-handling spaces
• Country of Origin: USA
