HART & COOLEY 8TLCEK30 8-Inch All Fuel Vent Insulated 30-Degree Elbow Kit

Product Description

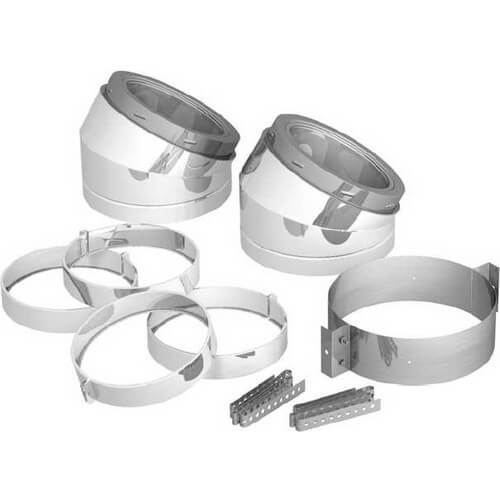

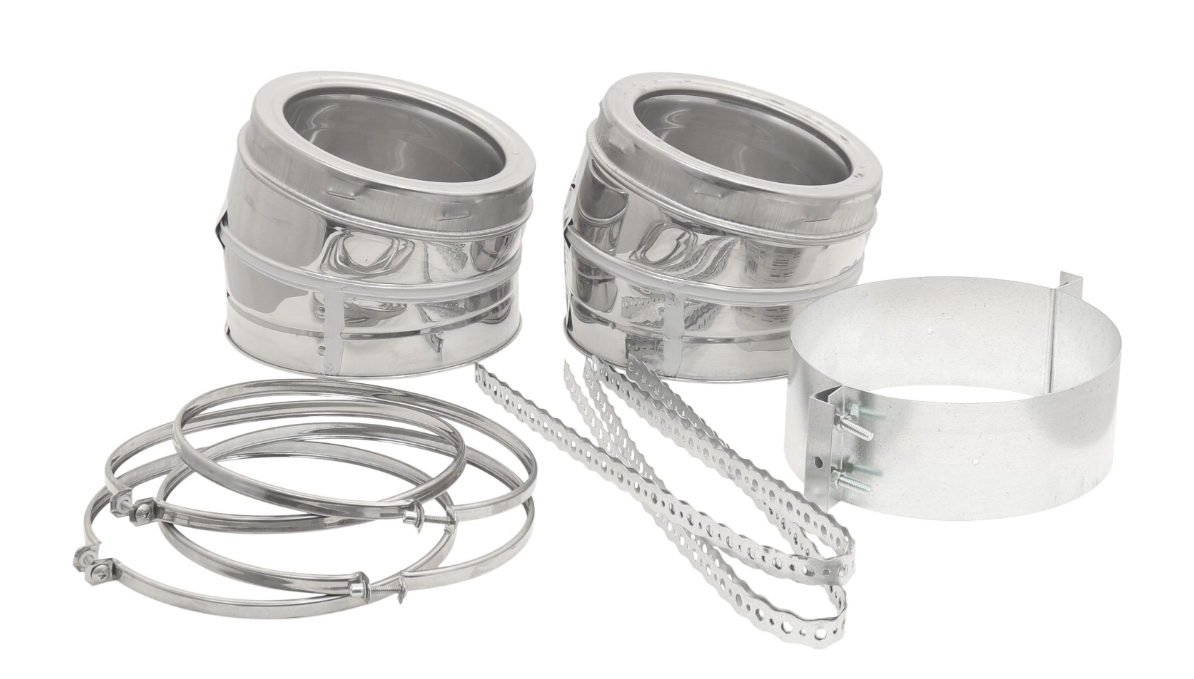

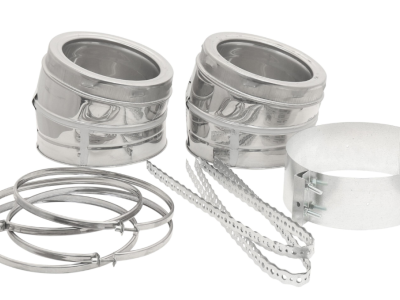

The HART & COOLEY 8TLCEK30 is an 8-inch insulated elbow kit designed for use with solid, liquid, or gas fuel appliances. This product is suitable for natural draft conditions and features an insulated design for optimum performance. The kit includes two elbows, two locking bands, an elbow support, and all necessary hardware for installation.

• Includes two elbows for flexibility in installation.
• Constructed with durable stainless steel for corrosion resistance.
• Locking bands secure connections for safety.

Product Highlights

This 30-degree elbow kit is an essential part of venting systems, providing efficient offsets for appliance venting needs.

Product Information

Standard Information

• Brand: HART & COOLEY
• MPN: 8TLCEK30

Technical Specifications

• Material: 304 Stainless Steel
• Size: 8 Inch
• Angle: 30 Degree
• Type: Insulated
• Applicable Standard: UL 103
• Inclusions/Features: (2) Elbow, (2) Locking Band, Elbow Support, Hardware
• Material Thickness: 0.016 Inch (Inner Liner), 0.015 Inch (Outer Casing)
• Series/Model: TLCEK
• P1 Diameter: 8 inches
• P1 Style: Round
• P1 Connection: Locking Band
• P2 Diameter: 8 inches
• P2 Style: Round
• P2 Connection: Locking Band
