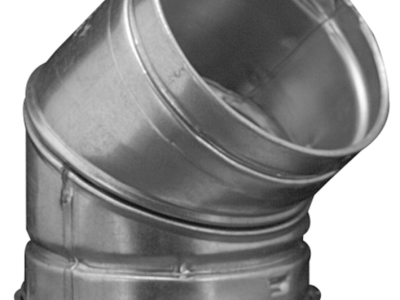

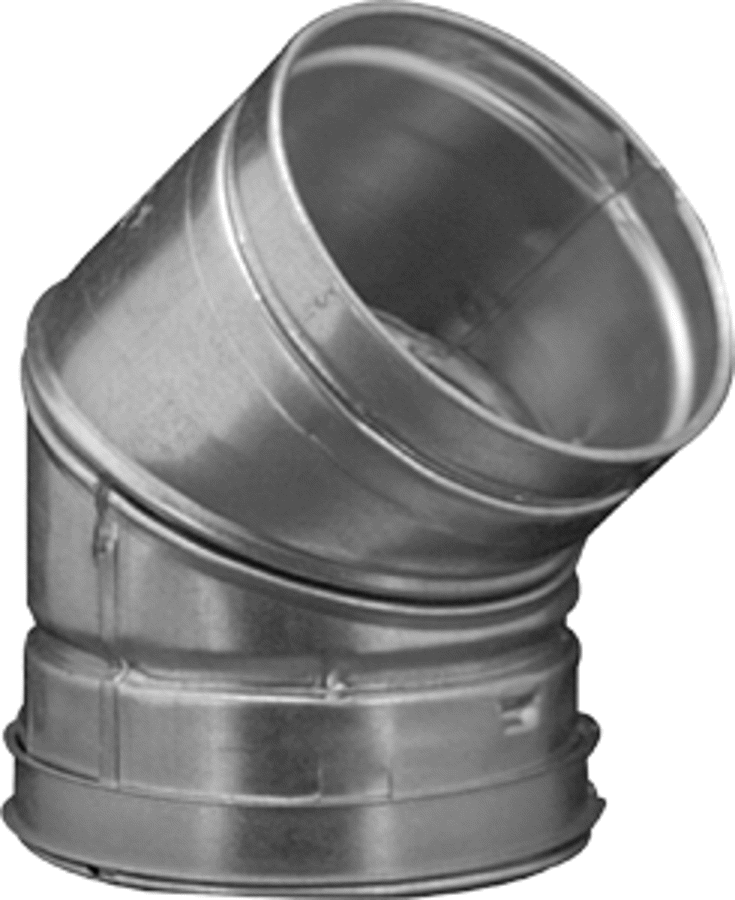

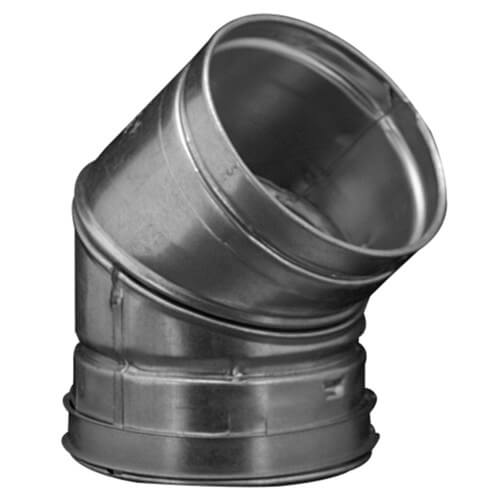

Hart & Cooley 8REA45 8 inches 45 Deg Elbow B-Vent

Product Description

The HART & COOLEY 8REA45 8" 45 Deg Elbow B-Vent is a double wall, air insulated B Vent system secured by locking joints. Properly installed, the vent offers protection against vent failure or fire hazard. Designed for negative pressure applications and flue gas temperatures not exceeding 400 Degrees above ambient for Category I appliances.

• B vent
• 45° elbow
• Adjustable

Product Highlights

This elbow offsets obstructions as needed when installing Type B gas components and can be adjusted from 45° to 60°.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 8REA45
• Country of Origin: United States

Technical Specifications

• URI Part Number: 8REA45
• Vendor Part Number: 016508
• Diameter (In.): 8.00
• MPN: 16508
• Brand: HART & COOLEY
• UPC: 684048165084
• Country of Origin: United States
• Shape: 45 Degree Adjustable Elbow
• Type: Type-B
• Material: Galvanized Steel (Outer)/ Aluminum (Inner)
• P1 Diameter (inches): 8
• P1 Style: Round
• P1 Connection: Locking Band
• P2 Diameter (inches): 8
• P2 Style: Round
• P2 Connection: Locking Band
• Height: 9
• Length: 9
• Width: 9.25
• Approvals: UL Listed
• Bend Angle Degree: 45°
• Composition: Outer - 0.018 thick, G-90 Galvanized Steel, Inner - 0.016 thick, Aluminum
• Inside Diameter: 8"
• Product Family: 8REA
• Prop 65: No
• Substantial Commodity: Steel; Aluminum
