Hart Cooley 82112X12 Steel Supply Register Multi-shutter Damper White 12 Inches X 12 Inches

Product Description

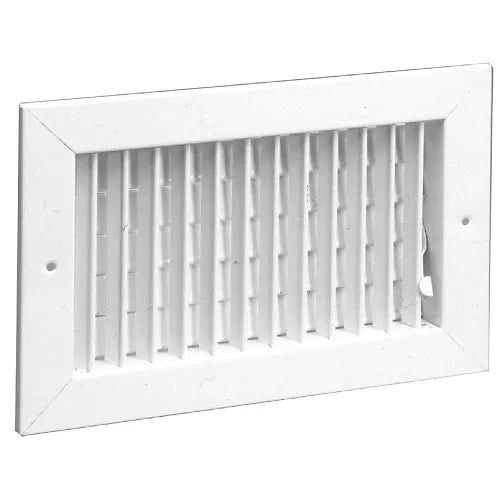

The Hart Cooley 82112X12 is a steel supply register designed for sidewall and ceiling installations in residential and commercial HVAC systems. It features a multi-shutter damper and vertical adjustable face bars, giving HVAC technicians and contractors precise control over airflow direction and volume. The register measures 12 inches x 12 inches and is built entirely from steel, making it a durable, long-lasting solution for supply air applications. The bright white enamel finish blends cleanly with standard wall and ceiling surfaces, reducing the need for touch-up work after installation. This unit is part of the Hart Cooley 821 product family, a trusted line among HVAC professionals for reliable performance and consistent quality. The vertical fins are adjustable, allowing airflow to be directed horizontally across a room to maximize comfort and efficiency. The horizontal multi-shutter valve provides an added layer of airflow regulation, making it easy to balance supply air in both new construction and retrofit jobs. The register has an overall length and width of 13.875 inches, with a height of 2.25 inches, and weighs 3.3 pounds. The square shape and standard sizing make it compatible with common duct openings, simplifying the replacement process. Fin spacing is set at 3/4 inches for consistent air distribution across the face of the register. This is a single-deflection register, meaning airflow is directed in one plane, which suits most standard supply air applications. HVAC installers working on residential projects, light commercial builds, or system upgrades will find this register straightforward to install and easy to adjust on the job. The Hart Cooley 82112X12 ships as a single unit and is manufactured in Mexico. It does not carry a Prop 65 warning.

• All-steel construction with bright white enamel finish for durability and clean appearance
• Vertical adjustable face bars and horizontal multi-shutter damper for flexible airflow control
• 12 inches x 12 inches square face fits standard sidewall and ceiling duct openings

Product Highlights

The Hart Cooley 82112X12 delivers reliable supply air control with adjustable vertical fins and a multi-shutter damper, all in a sturdy all-steel body with a white enamel finish. It is a practical, field-ready choice for HVAC contractors handling sidewall or ceiling supply register installations.

Product Information

Standard Information

• Brand: HART COOLEY
• Manufacturer Part Number: 82112X12

Technical Specifications

• Size: 12 inches x 12 inches
• Overall Length: 13.875 inches
• Overall Width: 13.875 inches
• Height: 2.25 inches
• Weight: 3.3 pounds
• Material: Steel
• Finish: Enamel White
• Shape: Square
• Damper Type: Multi Shutter
• Deflection: Single
• Fin Spacing: 3/4 inches
• Fin Degree: Adjustable
• Register Type: Sidewall or Ceiling
• Product Family: 821
• Country of Origin: Mexico
• UPC: 684048750150
