Hart Cooley 672m1212w Steel Return Air Grille 12x12 White

Product Description

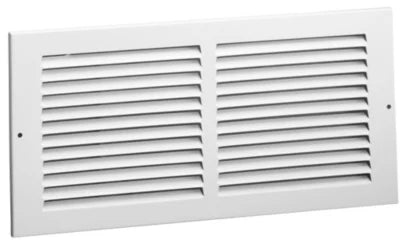

The HART COOLEY 672m1212w is an all-steel return air grille designed for residential and light commercial HVAC duct systems. Measuring 12 inches by 12 inches, it features 1/2-inch spaced fins set at a 40-degree angle to maximize airflow while maintaining a clean, finished appearance. The 5/16-inch margin turnback allows for flush, professional installation against standard drywall and framing surfaces. A bright white powder finish provides a consistent, paintable surface that blends with common interior finishes. HVAC technicians and installers use this grille as a wall or ceiling return air termination point in ducted forced-air systems.

This grille is suited for residential new construction and retrofit applications where a standard return air opening requires a finished face. The 12-inch by 12-inch face size accommodates common residential duct rough openings. The 40-degree fin angle and 1/2-inch fin spacing deliver strong free-area performance, reducing restriction at the return side of the air handler or furnace. The bright white finish is appropriate for use in living spaces, hallways, and utility areas where appearance matters alongside function.

Key Features

• All-steel construction for durability in return air applications
• 1/2-inch fin spacing set at 40 degrees for high free-area airflow
• 5/16-inch margin turnback for flush, clean wall or ceiling installation
• Bright white finish compatible with standard interior painted surfaces
• 12-inch by 12-inch face size fits common residential return duct openings

Compatibility

Designed as an OEM-style replacement or new-installation return air grille for residential and light commercial ducted HVAC systems using standard 12-inch by 12-inch return air duct openings.

Installation Notes

Installation is typically performed by licensed HVAC technicians or qualified mechanical contractors. Power down the air handling unit or furnace before working on duct connections to avoid debris ingestion into the system. The margin turnback should seat flush against the finished wall or ceiling surface for a clean fit. Secure the grille using fasteners appropriate for the substrate material.

Technical Specifications

• Face Size: 12 inches x 12 inches
• Fin Spacing: 1/2 inch
• Fin Angle: 40 degrees
• Margin Turnback: 5/16 inch
• Material: Steel
• Finish: Bright White
• Unit of Measure: Each

Standard Information

• Brand: HART COOLEY
• Manufacturer Part Number: 672m1212w
