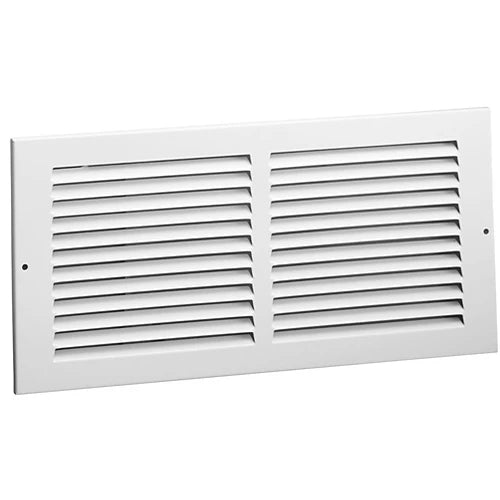

Hart Cooley 67230X14W Steel Return Air Grille 1/2 Inch Fin Spacing 40 Degree 30x14

Product Description

The Hart Cooley 67230X14W is a steel return air grille designed for residential and light commercial HVAC systems. Return air grilles are a critical part of any forced-air system. They allow air to flow back to the air handler or furnace for reconditioning. Without proper return airflow, a system loses efficiency and can cause pressure imbalances throughout the duct system. This grille is built to handle that job reliably. The 67230X14W measures 30 inches by 14 inches, making it a strong fit for medium to large return air openings in walls, ceilings, or floors. The all-steel construction gives it durability that holds up in high-traffic areas and commercial environments. The fins are spaced at 1/2 inch intervals and are set at a fixed 40 degree angle. This fin geometry maximizes free area, meaning more air passes through the face of the grille with less resistance. Better free area means quieter operation and less strain on the blower motor. The enamel finish provides a clean, white appearance and resists rust and everyday wear. The 5/16 inch margin turnback creates a neat overlap around the opening, helping to cover rough or uneven duct edges for a finished look. HVAC technicians and installers trust Hart Cooley grilles for straightforward installation and consistent performance. This model requires no adjustable blade settings, keeping the airflow pattern simple and uniform. It is a practical, no-frills return air grille built for long service life in forced-air HVAC applications.

• All-steel construction with durable enamel finish for lasting performance
• 1/2 inch fin spacing at a fixed 40 degree angle for maximum free area and low air resistance
• 5/16 inch margin turnback covers rough duct edges for a clean, professional installation

Product Highlights

The Hart Cooley 67230X14W delivers reliable return airflow in a 30x14 inch all-steel grille with a clean enamel finish. Its fixed 40 degree fins and generous free area make it a dependable choice for residential and commercial HVAC installations.

Product Information

Standard Information

• Brand: HART COOLEY
• Manufacturer Part Number: 67230X14W

Technical Specifications

• Grille Type: Return Air Grille
• Material: Steel
• Finish: Enamel
• Grille Size: 30 inches x 14 inches
• Fin Spacing: 1/2 inches
• Fin Degree: 40 degrees
• Margin Turnback: 5/16 inches
• Deflection: Return
• Adjustable: No
• UPC: 684048433763
