Hart & Cooley 67230X10 Return Air Grille 30 Inch Width, 10 Inch Height

Product Description

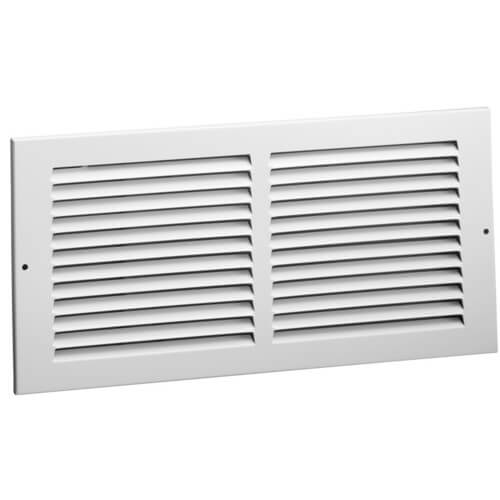

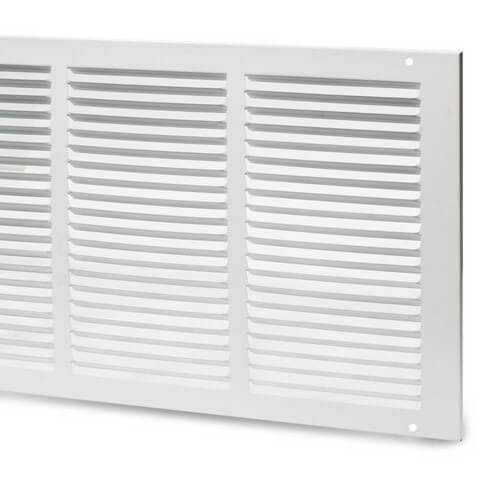

The Hart & Cooley 67230X10 return air grille features a bright white enamel finish and is designed for sidewall or ceiling mount applications. With exceptional free area and a 5/16 inch margin turnback, this steel grille is suitable for residential HVAC systems. It has 1/2 inch spaced fins set at a 40-degree angle.

• Exceptional free area
• 5/16 Inch margin turnback
• Sidewall/Ceiling Mount

Product Highlights

All-steel construction with a bright white finish, ideal for residential HVAC systems.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 67230X10

Technical Specifications

• Finish: Bright White Enamel
• Height: 10 Inch
• Series: 672
• Material: Steel
• Blade Angle: 40 deg
• Manufacturer: Hart & Cooley
• Blade Spacing: 1/2 Inch
• Mounting Type: Sidewall/Ceiling
• Overall Width: 31-3/4 inch
• Overall Height: 11-3/4 Inch
• Product Type: Return Grille
• Wall Opening (Inches): 30" x 10"
• Overall Size: 31-3/4" x 11-3/4"
• Height (Wall Opening): 10"
• Width (Wall Opening): 30"
• Application: HVAC
