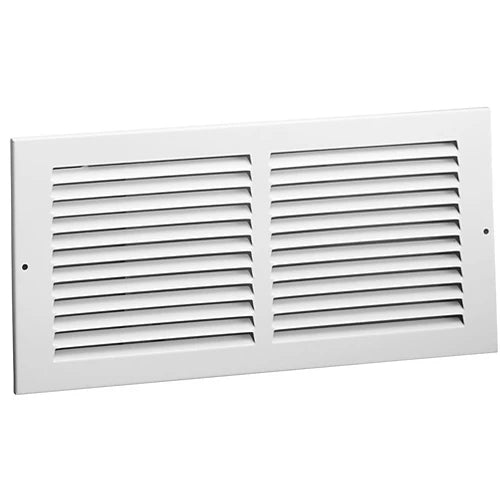

Hart Cooley 67220X25 Steel Return Air Grille White Finish 20 Inches X 25 Inches

Product Description

The Hart Cooley 67220X25 is a steel return air grille designed for residential and commercial HVAC systems. It fits a 20 inches x 25 inches duct opening and provides a clean, functional solution for return air applications. Return air grilles are essential components in forced-air heating and cooling systems. They allow conditioned air to cycle back to the air handler or furnace for reconditioning, keeping airflow balanced throughout the building. Without properly sized return air grilles, static pressure builds up and system efficiency drops. This grille handles that job with a straightforward, all-steel build that holds up in high-use environments. The fins are spaced at 1/2 inch intervals and set at a 40-degree angle. This fixed-fin design promotes strong airflow while maintaining a neat visual profile on the wall or ceiling. The 40-degree fin angle is a standard setting for return air applications, optimizing free area without sacrificing the grille's structural integrity. A 5/16 inch margin turnback gives the grille a finished look against the wall surface and helps it seat evenly over the duct opening. The bright white enamel finish resists chipping and matches standard interior trim in most residential and light commercial settings. HVAC technicians and contractors rely on the Hart Cooley 672 product family for consistent sizing, reliable construction, and wide availability. The grille ships as a single unit and is manufactured in Mexico. It carries no Prop 65 warning and is not adjustable, making installation fast and straightforward. This is a dependable, no-frills return air grille built to perform in standard duct systems.

• All-steel construction with bright white enamel finish for durability and clean appearance
• Fins spaced at 1/2 inch and fixed at 40 degrees for optimal return airflow and free area
• 5/16 inch margin turnback for a flush, finished fit over the duct opening

Product Highlights

The Hart Cooley 67220X25 delivers reliable return air performance in a 20 inches x 25 inches steel grille with fixed 40-degree fins and a bright white enamel finish. It is a straightforward, contractor-grade solution for residential and commercial HVAC return air installations.

Product Information

Standard Information

• Brand: HART COOLEY
• Manufacturer Part Number: 67220X25

Technical Specifications

• Product Family: 672
• Grille Type: Return Air
• Material: Steel
• Finish: Enamel
• Color: Bright White
• Shape: Rectangle
• Size: 20 inches x 25 inches
• Overall Length: 21.75 inches
• Overall Width: 26.75 inches
• Overall Height: 0.3125 inches
• Fin Spacing: 1/2 inch
• Fin Degree: 40 degrees
• Margin Turnback: 5/16 inch
• Adjustable: No
• Curved Blade: No
• Weight: 5.33 pounds
• Country of Origin: Mexico
• UPC: 684048433596
