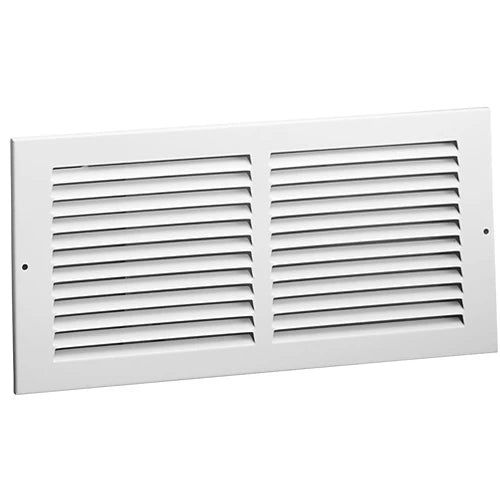

Hart Cooley 67216X25 Steel Return Air Grille White Finish 16 Inches X 25 Inches

Product Description

The Hart Cooley 67216X25 is a steel return air grille from the 672 product family, designed for residential and light commercial HVAC systems. It measures 16 inches by 25 inches and is finished in a bright white enamel coating that blends cleanly with standard interior walls and ceilings. Return air grilles play a critical role in any forced-air HVAC system. They allow air to flow back to the air handler or furnace so it can be conditioned and recirculated. Without proper return airflow, systems lose efficiency, run harder, and wear out faster. The 67216X25 helps maintain balanced airflow across the duct system. The grille features fins spaced at 1/2 inch intervals and set at a 40-degree angle. This fixed-fin design provides exceptional free area, meaning more open space for air to pass through with less resistance. Greater free area reduces static pressure in the return duct, which supports better system performance and quieter operation. HVAC technicians and contractors rely on fixed-blade return grilles like this one for straightforward installs where airflow direction does not need to be adjusted at the grille face. The all-steel construction gives this grille durability for long-term use. It resists warping and holds its shape in environments with temperature fluctuations common near air returns. The 5/16-inch margin turnback helps the grille sit flush and secure against the wall or ceiling surface, giving a clean finished look. The bright white enamel finish is ready to install without additional painting in most standard applications. This grille ships as a single unit and is manufactured in Mexico. It is a non-adjustable, fixed-deflection return air grille suitable for standard rectangular duct openings.

• All-steel construction with bright white enamel finish for clean, durable installation
• Fixed fins set at 40 degrees with 1/2 inch spacing for high free area and low resistance airflow
• 5/16 inch margin turnback for a flush, finished appearance against the wall or ceiling surface

Product Highlights

The Hart Cooley 67216X25 delivers reliable return airflow performance in a durable all-steel grille with a clean white enamel finish, making it a dependable choice for HVAC contractors and service technicians handling standard residential or commercial duct systems.

Product Information

Standard Information

• Brand: HART COOLEY
• Manufacturer Part Number: 67216X25

Technical Specifications

• Product Family: 672
• Size: 16 inches x 25 inches
• Overall Length: 17.75 inches
• Overall Width: 26.75 inches
• Overall Height: 0.3125 inches
• Weight: 4.6 pounds
• Shape: Rectangle
• Material: Steel
• Finish: Enamel
• Fin Spacing: 1/2 inches
• Fin Degree: 40 degrees
• Margin Turnback: 5/16 inches
• Grille Type: Return Air
• Deflection: Return
• Adjustable: No
• Curved Blade: No
• Country of Origin: Mexico
• UPC: 684048139917
