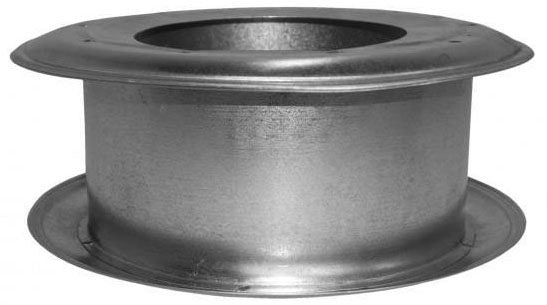

Hart Cooley 5ewt B Vent Round Wall Thimble 5 Inches

Product Description

The HART COOLEY 5ewt is a round B-vent wall thimble designed to provide a safe passage for Type B gas vent pipe through interior walls. It creates the required clearance between the vent pipe and combustible wall framing, reducing fire risk during installation. This thimble is sized for 5-inch B-vent pipe and accommodates walls ranging from 4 inches to 6 inches thick. It weighs 1.83 pounds and installs as part of a complete B-vent system serving gas-fired appliances such as furnaces, boilers, and water heaters. Licensed HVAC technicians and plumbers typically handle this type of installation.

This wall thimble is suited for residential and light commercial applications where a Type B double-wall gas vent must penetrate an interior combustible wall. It is appropriate for use in new construction and retrofit projects where proper clearances must be maintained per the International Fuel Gas Code. The thimble fits walls between 4 inches and 6 inches in depth, making it compatible with standard stud-framed interior wall assemblies.

Key Features

• Round wall thimble designed for 5-inch Type B gas vent pipe
• Fits wall depths from 4 inches to 6 inches
• Maintains required clearance between vent pipe and combustible framing
• Lightweight at 1.83 pounds for easier handling during installation
• Supports compliant B-vent system routing through interior walls

Compatibility

Designed as an OEM-style replacement and standard fitment component for 5-inch Type B double-wall gas vent systems passing through interior walls with a depth of 4 inches to 6 inches.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber in accordance with the International Fuel Gas Code and the vent system manufacturer instructions. Shut off the gas supply and allow connected appliances to cool completely before beginning any vent work. The thimble must be centered in the wall opening and secured to maintain proper clearance from all combustible surfaces. Do not alter or compress the thimble body to fit non-standard wall thicknesses.

Technical Specifications

• Size: 5 inches
• Wall Size: 4 inches to 6 inches
• Weight: 1.83 pounds

Standard Information

• Brand: HART COOLEY
• Manufacturer Part Number: 5ewt
