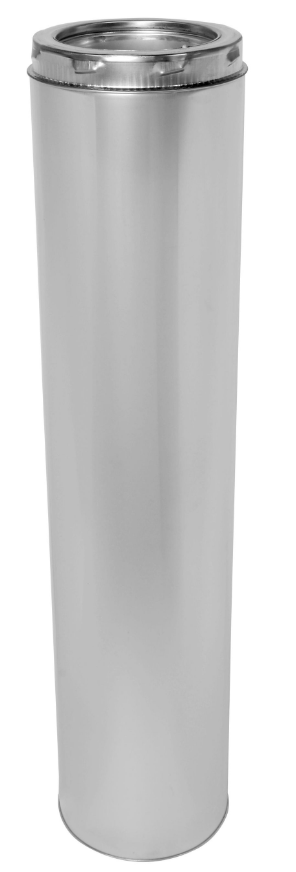

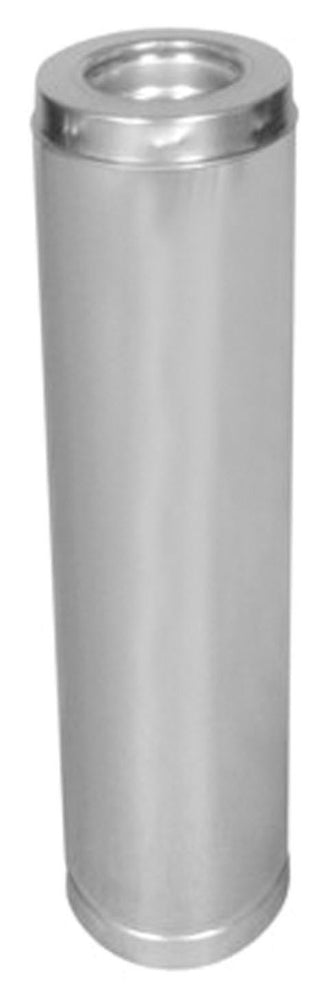

Hart & Cooley 502177 Metlvent 10TLC24 24 inches Pipe

Product Description

The HART & COOLEY 502177 Metlvent 10TLC24 is a 24" chimney pipe designed for all fuel applications. Constructed with a 304 stainless steel inner liner and outer casing, it offers corrosion resistance and efficient draft. The twist-lock connection ensures easy assembly, while the locking band secures joints. It features mineral wool fiber insulation for enhanced thermal performance and safety.

• Embossed coupler prevents moisture penetration.
• Constructed with 304 stainless steel for corrosion resistance.
• Features a twist-lock connection for easy assembly.

Product Highlights

Durable chimney pipe with twist-lock assembly and mineral wool insulation for safety and performance.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 502177

Technical Specifications

• End Type: Twist-Lock x Twist-Lock
• Material: 304 Stainless Steel
• Size: 10 Inch Inner Diameter x 12 Inch Outer Diameter
• Length: 24 Inch
• UNSPSC Code: 40141920
• Series/Model: TLC
• CATALOG NUMBER: 502177
• Manufacturer Name: Hart & Cooley
• Material Thickness: 0.015 Inch (Outer Casing)
• Temperature Rating: 1000 Deg F (Maximum Continuous), 1400 Deg F (Brief Forced Firing), 1700 Deg F (Creosote Burn-Out)
• Applicable Standard: UL 103
• Inclusions Features: Locking Band
• Insulation Supplied: Yes
• Additional Information: Airspace Clearance to Combustibles Size 2 Inch; Section Overlap Size 1-1/4 Inch; Used On All Fuel Chimney; Insulation Material Mineral Wool Fiber
• Manufacturer Part Number: 10TLC24
• PDW VEN ALTERNATIVE DESCRPTION: 10TLC24
• Type: Round, Slim
• Brand: HART & COOLEY
• Diameter (inches): 10
