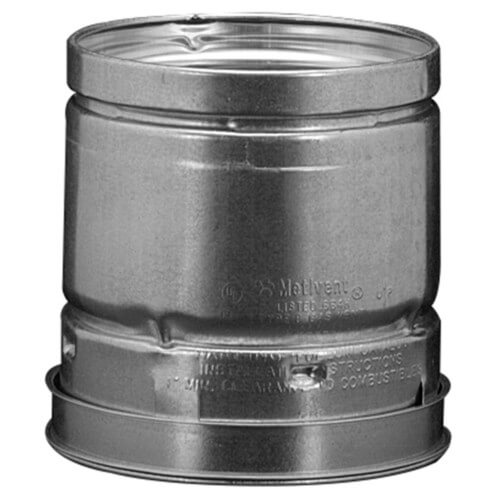

HART & COOLEY 4RPX5, 4 x 5' Round Type B Gas Vent Pipe

Product Description

The HART & COOLEY 4RPX5 is a round gas vent pipe with a diameter of four inches and a length of sixty inches. Made from a combination of steel and aluminum, this pipe meets UL Standard 441 requirements for compatibility with listed gas-fired appliances that are certified for Type B venting.

This vent pipe is suitable for both vertical installations and lateral configurations. It can also be used horizontally when combined with a draft-inducing fan to maintain negative pressure in the vent. The couplers provide an overlapping connection of one and three-eighth inches for a secure fit, which results in a total assembled length that is one and three-eighth inches shorter than the listed length.

• Diameter: 4 inches
• Length: 60 inches
• Material Composition: Steel and Aluminum

Product Highlights

This vent pipe is designed for reliable performance and compatibility with gas-fired systems.

Product Information

Standard Information

• Product Type: Straight Pipe
• Material: Steel and Aluminum

Technical Specifications

• Diameter: 4 inches
• Length: 60 inches
• Gauge: 26 GA
• Width: 4.5 inches
• Height: 60 inches
• Approvals: UL Listed
