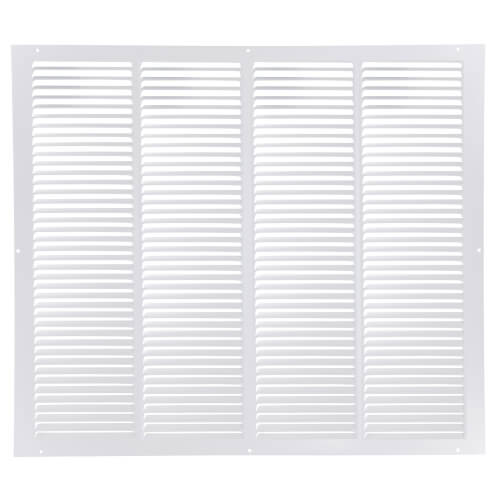

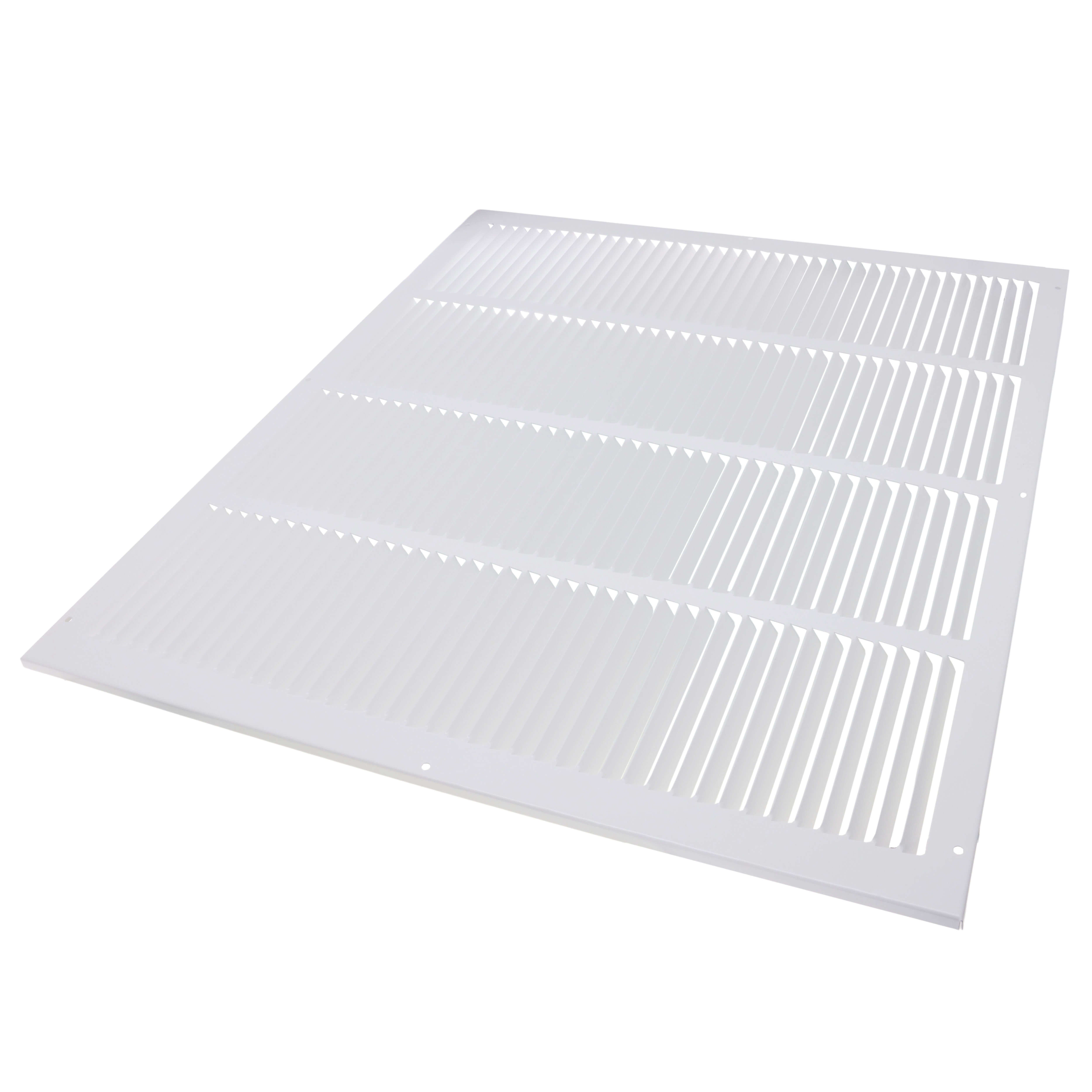

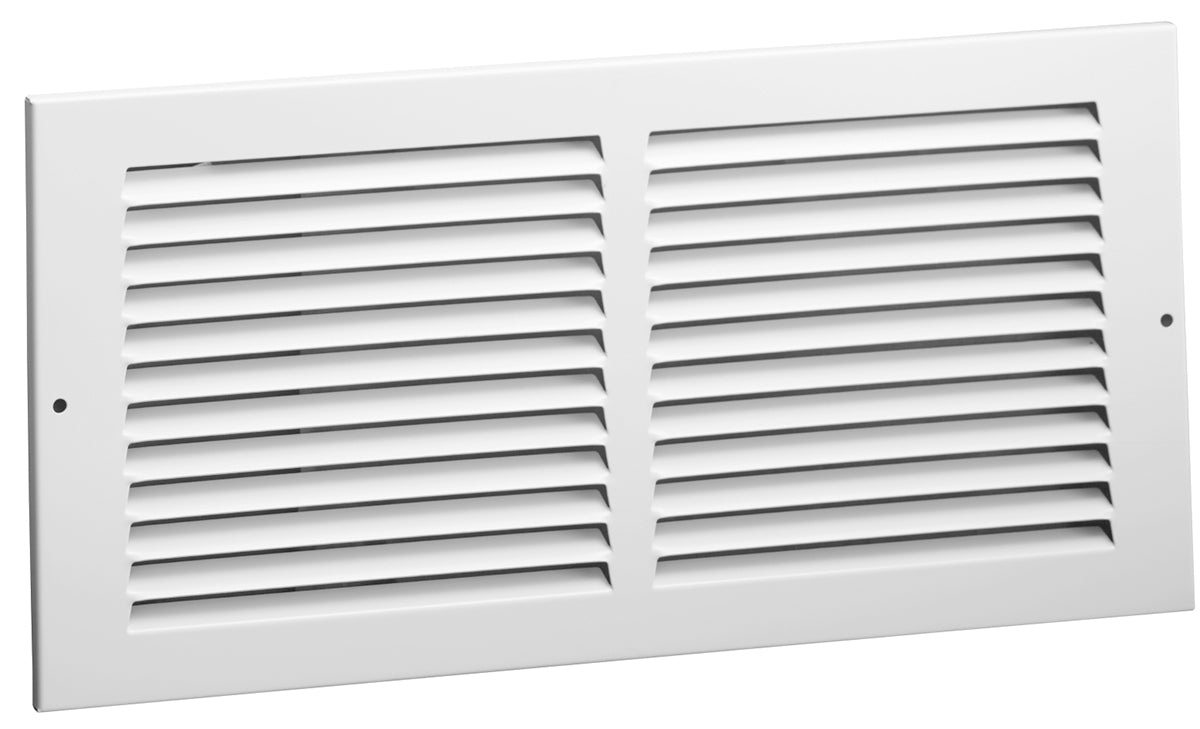

Hart & Cooley 43369 672 Stamped Return Grille 24 inchesX20 inches

Product Description

The HART & COOLEY 43369 is a 672 series stamped return grille with 1/2" blade spacing. Constructed of steel, this grille is designed for HVAC applications. It features 1/2" spaced fins set at 40 degrees and a 5/16" margin turn back. The grille is suitable for sidewall or ceiling installations.

• All-steel construction
• 1/2" spaced fins set at 40 degrees
• Exceptional free area

Product Highlights

Stamped return grille with 1/2" blade spacing, all-steel construction, and 1/2" spaced fins set at 40 degrees.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 43369

Technical Specifications

• MPN: 43369
• Brand: HART & COOLEY
• Product Type: Return Grille
• Wall Opening (Inches): 24" x 20"
• Overall Size: 25-3/4" x 21-3/4"
• Height (Wall Opening): 20"
• Width (Wall Opening): 24"
• Material: Steel
• Application: HVAC
• Series: 672
• Product Group: Ceiling Return Grilles
• Finish: Enameled/Bright White
• Model Number: 672
• CFM Rating: 910 cfm at 600 fpm
• Short Description: Return Air Grille 672 - 24x20 White
• Grille Spacing: 1/2 in
• Area: 1.52 ft²
