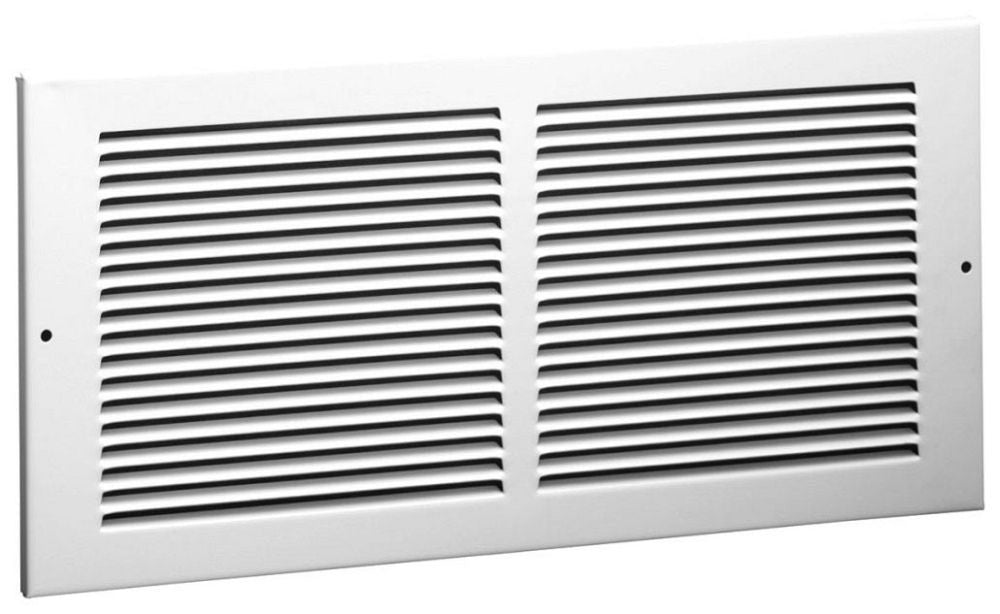

Hart Cooley 43170 Hc 650 24 X 14 Wall Return Grille White Steel

Product Description

The Hart Cooley 43170 is a wall return grille from the HC 650 Series, designed for residential and commercial HVAC systems. It fits a wall opening of 24 inches wide by 14 inches tall and has an overall size of 25-3/4 inches by 15-3/4 inches, giving it a standard overlap margin for clean, flush installation against drywall or plaster surfaces. HVAC technicians and contractors rely on return grilles like this one to pull air back into the duct system efficiently. The 650 Series is a trusted choice for return air applications where consistent airflow and a clean appearance are both required. The 43170 features all-steel construction, which makes it durable enough for long-term use in high-traffic areas. The fins are spaced at 1/3 inches apart and set at a 20-degree angle, a configuration that supports strong airflow distribution while keeping the grille face looking clean and uniform. The 5/16 inches margin turnback allows the grille face to overlap the wall opening neatly, hiding rough edges and simplifying installation. The bright white powder coat finish blends with standard interior wall colors and resists fading over time. This grille does not include a damper, making it a fixed return air grille rather than a supply grille. It is suitable for use in hallways, living spaces, and utility rooms where return air intake is needed. Installers should verify the screw hole locations using the submittal drawing before cutting or mounting, as exact placement may vary slightly from nominal dimensions. This is a direct fit for standard residential and light commercial duct openings in that size range.

• All-steel construction for durability in long-term HVAC installations
• Fins spaced 1/3 inches apart at 20 degrees for exceptional free area and efficient return airflow
• 5/16 inches margin turnback for clean overlap and easy wall mounting

Product Highlights

The Hart Cooley 43170 is a dependable all-steel wall return grille in the 650 Series, built for standard 24 x 14 inch wall openings with a bright white finish and angled fins that maximize free area and airflow performance.

Product Information

Standard Information

• Brand: HART COOLEY
• Manufacturer Part Number: 43170

Technical Specifications

• Series: 650
• Product Type: Return Grille
• Application: HVAC
• Material: Steel
• Color: White
• Wall Opening Width: 24 inches
• Wall Opening Height: 14 inches
• Overall Size: 25-3/4 inches x 15-3/4 inches
• Fin Spacing: 1/3 inches
• Fin Angle: 20 degrees
• Margin Turnback: 5/16 inches
• Finish: Bright White
