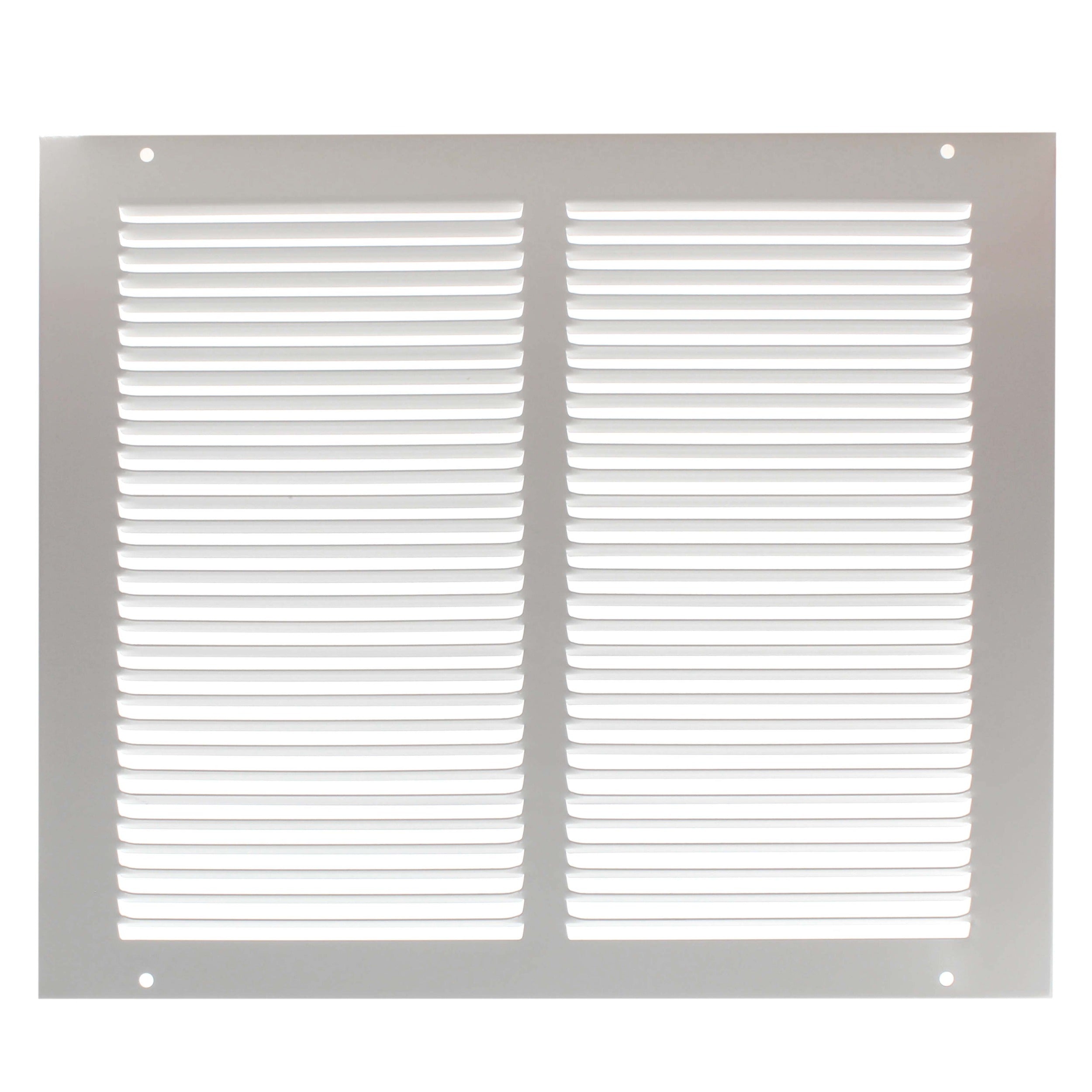

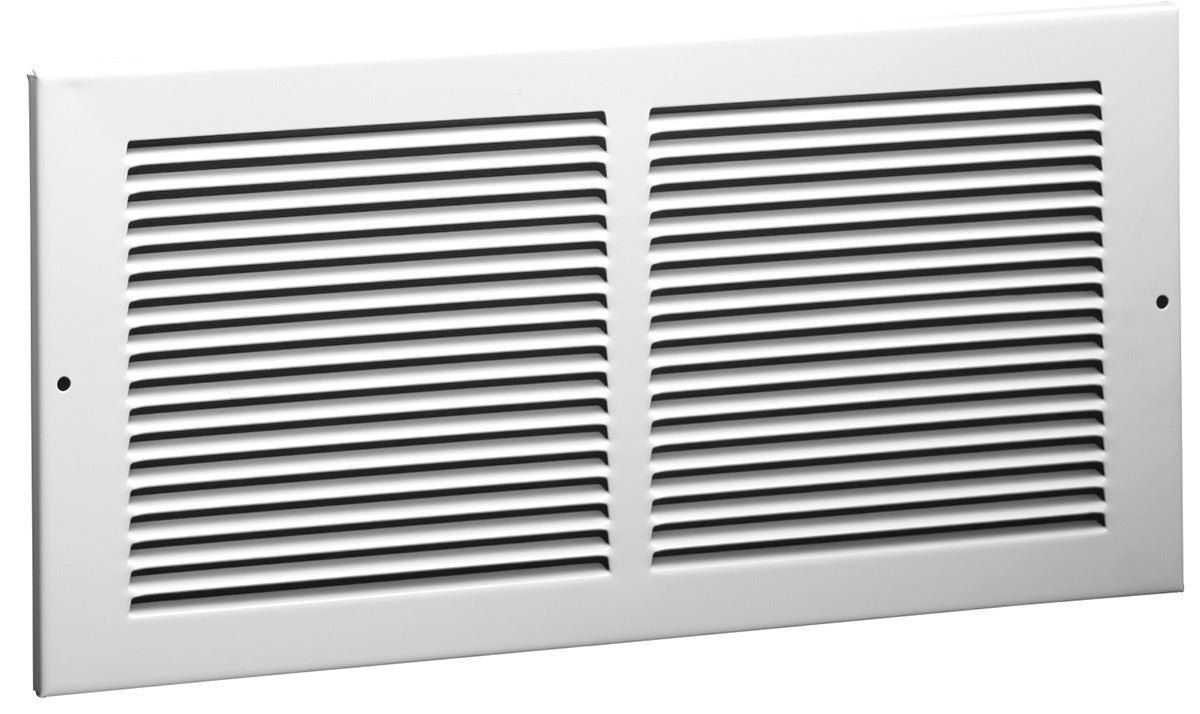

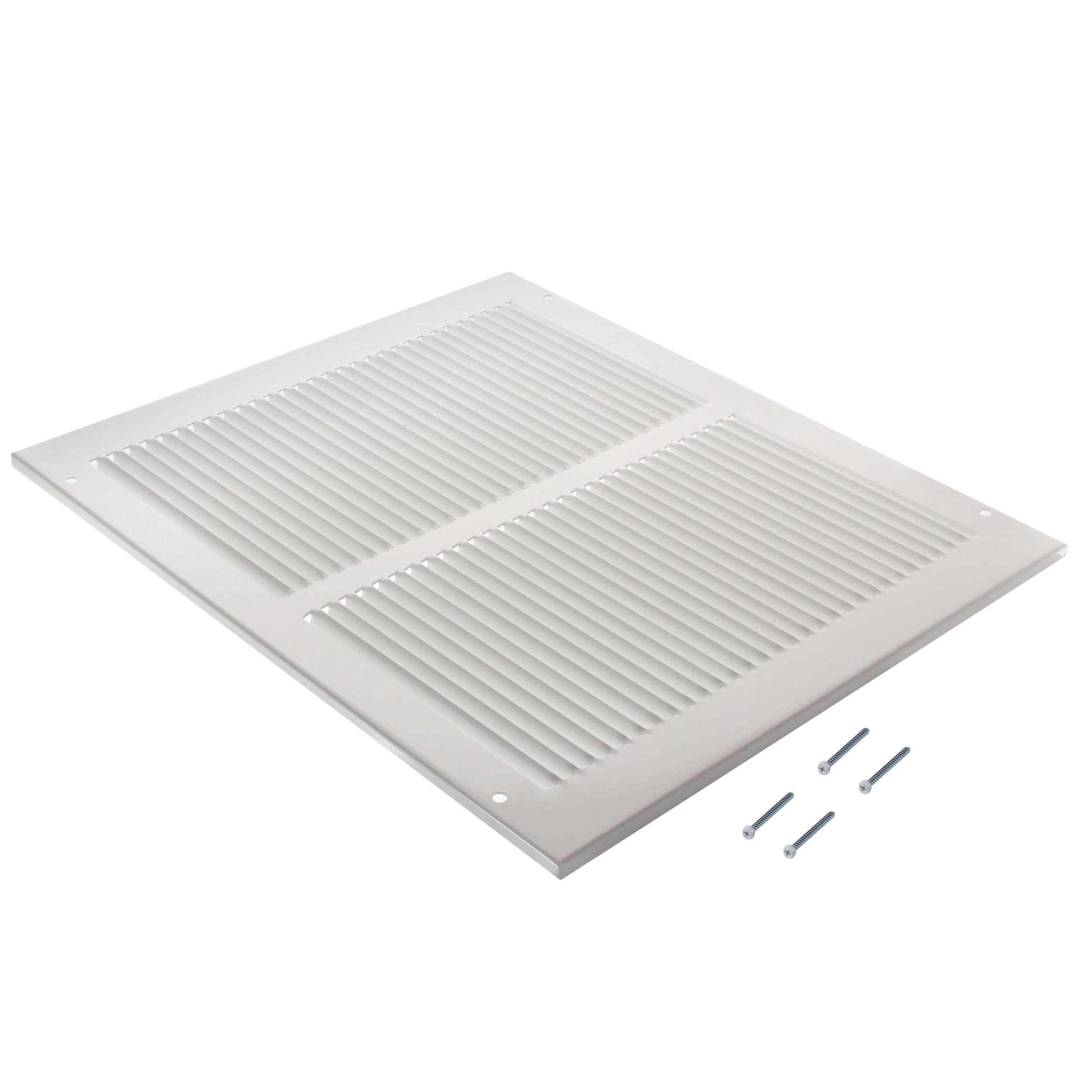

Hart & Cooley 43119 Return Air Grille (12 x 10) 650-12-10-W

Product Description

Hart & Cooley 43119 is a 650 Series return air grille designed for 12 x 10 inch wall openings. The grille is stamped steel with a bright white enamel finish, 1/3 inch spaced fins set at a 20 degree angle and a 5/16 inch margin turnback. Overall dimensions are 13-3/4 x 5/16 x 11-3/4 inches and the grille is rated for 170 to 339 CFM with face velocity 300 to 600 FPM for residential sidewall return applications.

• All-steel stamped face construction with bright white enamel finish
• 1/3 inch spaced fins set at 20 degree angle and 5/16 inch margin turnback for increased free area
• Fits 12 x 10 inch wall opening; overall 13-3/4 in x 5/16 in x 11-3/4 in; airflow 170 to 339 CFM, face velocity 300 to 600 FPM

Product Highlights

650 Series stamped steel return air grille for 12 x 10 wall openings with 1/3 inch fin spacing and 5/16 inch margin turnback.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 43119
