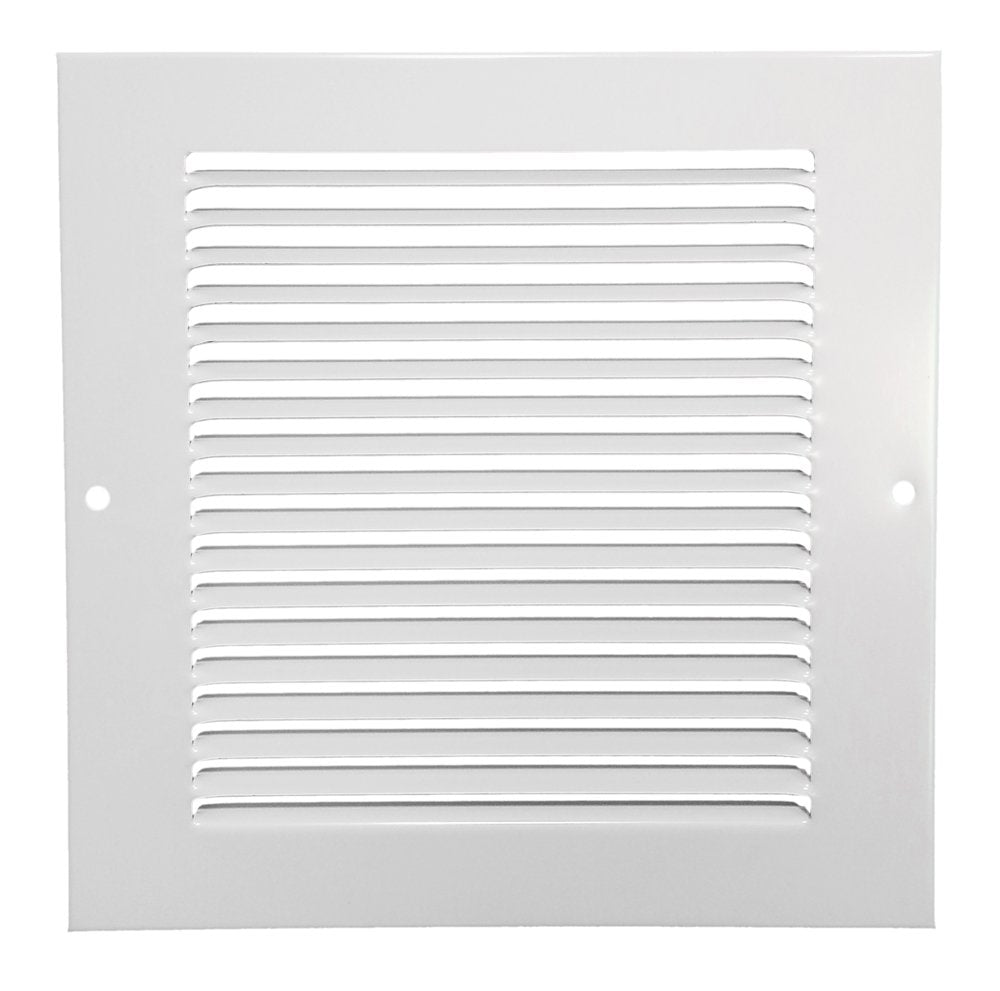

Hart & Cooley 43111 Return Air Grille 10 inches x 10 inches

Product Description

The HART & COOLEY 43111 Return Air Grille is designed for 10" x 10" wall openings. Constructed from steel with 1/3" spaced fins set at a 20-degree deflection angle, this grille provides optimal airflow. It features a 5/16" margin turnback and is suitable for HVAC applications in residential and light commercial settings.

• Fits a 10"W x 10" hole; overall size is 11-3/4"W x 11-3/4"H x 5/16"D.
• All-steel construction.
• 1/3" spaced fins set at 20 degrees for exceptional free area.

Product Highlights

This HART & COOLEY return air grille ensures efficient ventilation and a clean, modern appearance.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 43111

Technical Specifications

• Application: HVAC
• Material: Steel
• Product Type: Return Grille
• Series: 650
• Wall Opening (Inches): 10" x 10"
• Width (Wall Opening): 10"
• Height (Wall Opening): 10"
• Overall Size: 11-3/4" x 11-3/4"
• Brand: Hart & Cooley
• Manufacturer: Hart & Cooley
• MPN: 43111
• Length (inches): 11.7
• Width (inches): 10
• Height (inches): 10
• Item Type: Registers and Grilles
• Sub Type: Return Grille
• Overall Width: 10 in
• Duct Width: 9-1/2 inches
• Duct Height: 9-29/32 inches
• Overall Length: 11-3/4 inches
• Deflection Angle: 20 degrees
• Blade Spacing: 1/3 inch
• Margin Turnback: 5/16 Inch
