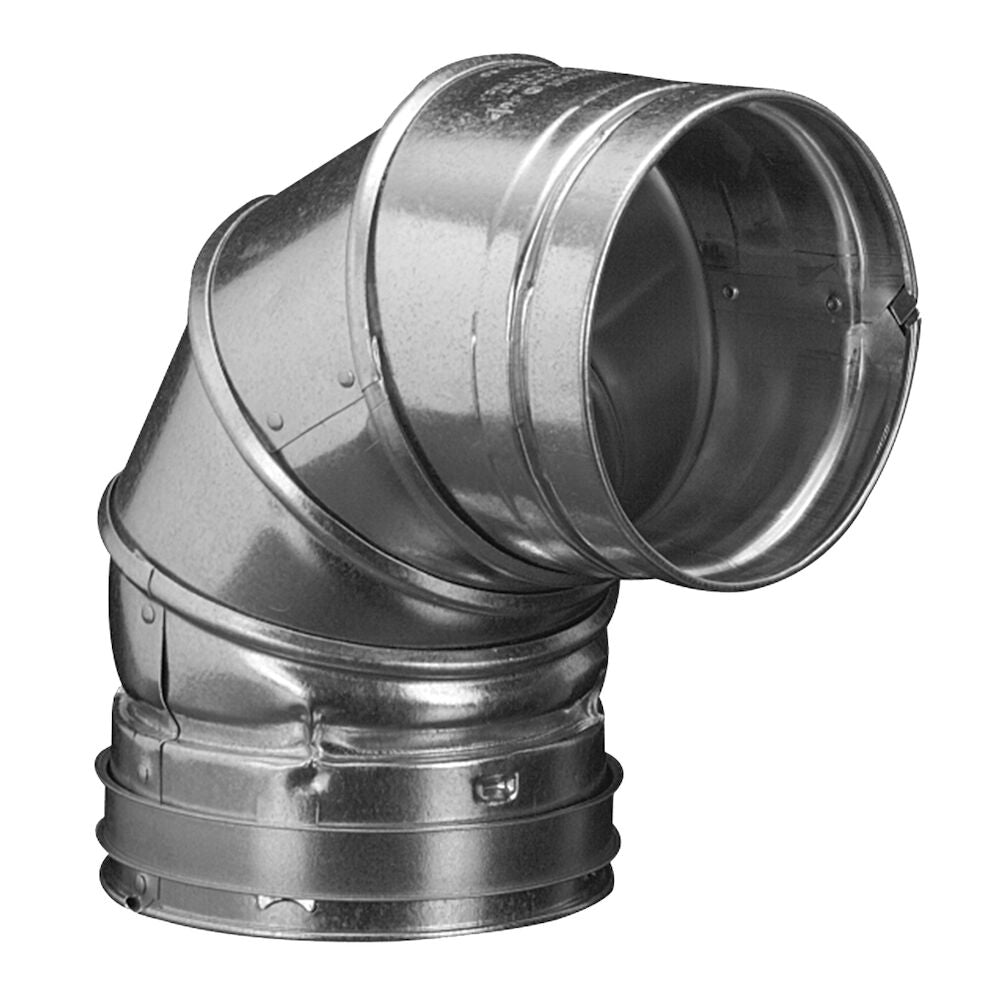

Hart & Cooley 3REA90 Vent Elbow 3 Inch G-90 Steel Aluminum

Product Description

The Hart & Cooley 3REA90 is an adjustable round vent elbow made from G-90 steel and aluminum. It is designed for use with Type B gas vent systems. This vent elbow allows for easy installation and adjustment to fit your specific application needs. The product features a diameter of three and a half inches and a height of seven and one-quarter inches.

• Designed for Type B gas vent systems
• Features unique locking band for secure connections
• Corrosion-resistant aluminum inner wall

Product Highlights

This adjustable vent elbow is designed to facilitate smooth transitions between all brands of Type B gas vents to ALK liners.

Product Information

Standard Information

• Manufacturer: Hart & Cooley
• MPN: 3REA90

Technical Specifications

• Type: Adjustable, Round
• Angle: 90 degrees
• Height: 7-1/4 inches
• Diameter: 3-1/2 inches OD
• Material: G-90 Steel, Aluminum
• Thickness: 0.018 inches outer, 0.012 inches inner
• Temperature Rating: 550 degrees F
• Suitable For Use With: Type B Gas Vent Systems
• Standard/Approvals: UL Listed
