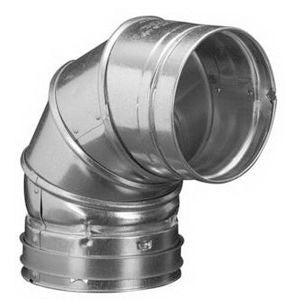

Hart & Cooley 3REA90 Adjustable Round Vent Elbow 3 Inch G-90 Steel Aluminum

Product Description

The Hart & Cooley 3REA90 is an adjustable round vent elbow designed for type B gas vent systems. This product is made from G-90 steel and aluminum. Its adjustable feature allows for flexibility in installation.

• Compatible with all brands of listed type B gas vent to ALK liner
• Unique locking band enables a full turning radius of the pipe
• Corrosion-resistant inner wall for quick warm-up

Product Highlights

Designed for HVAC applications, this vent elbow provides a reliable connection while maintaining high temperature resistance.

Product Information

Standard Information

• Manufacturer: Hart & Cooley
• Standard/Approvals: UL Listed

Technical Specifications

• Type: Adjustable, Round
• Angle: 90 deg
• Diameter: 3-1/2 Inch OD
• Height: 7-1/4 Inch
• Material: G-90 Steel, Aluminum
• Finish: Galvanized
• Temperature Rating: 550 deg F
• Thickness: 0.018 Inch Outer, 0.012 Inch Inner
• Suitable For Use With: Type B Gas Vent Systems
